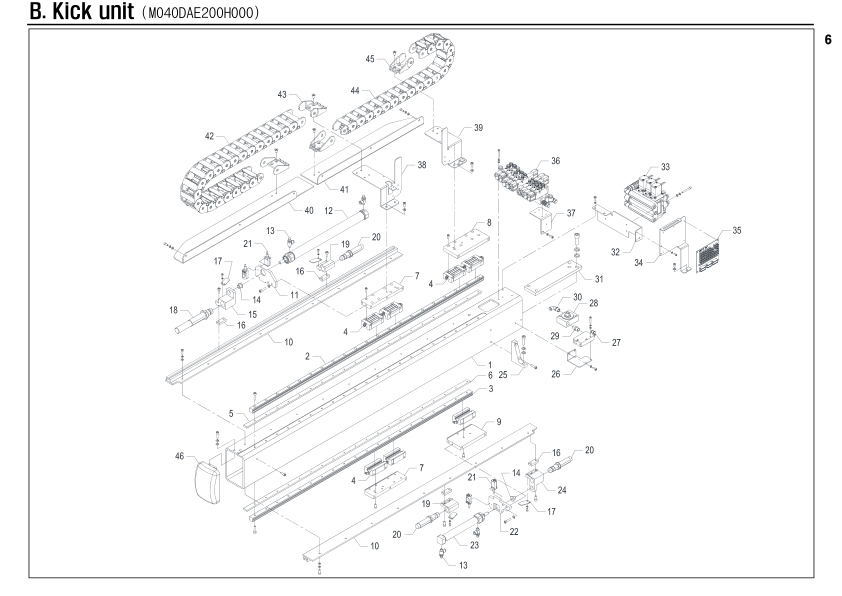

Kick unit
Unit Number: M040DAE200H000
Robot: MACH-II-400D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M040DAA2001PW0 | Frame | ||
| B-2 | PMLRHGR20R1240 | LM rail | 1 | |
| B-3 | PMLRHGR20R1180 | LM rail | 1 | |
| B-4 | PLMBQHH20CA888 | LM block | 7 | |
| B-5 | M040DAA2002MC0 | LM nut | 1 | |
| B-6 | M040DAA2003MC0 | LM nut | 1 | |
| B-7 | M040DAA2007ZZ0 | LM plate | 2 | |
| B-8 | M040DAA2008ZZ0 | LM plate | 1 | |
| B-9 | M040DAA2009ZZ0 | LM plate | 1 | |
| B-10 | M040DAA2004MC0 | Rail | 2 | |
| B-11 | M040DAA2010ZZ0 | Cylinder block | 1 | |
| B-12 | PAXADSAQ32035P | Cylinder | 1 | |
| B-13 | PAXFESC0618088 | Fitting | 4 | |
| B-14 | M040DAA4010ZZ0 | Cylinder rod nut | 2 | |
| B-15 | M040DAA2024ZZ0 | Stopper A | 1 | |
| B-16 | M040DAA2027ZZ0 | Nut | 4 | |
| B-17 | M040DAA2016ZZ0 | Touch plate | 4 | |
| B-18 | PSAKIEM14506CE | Absorber | 1 | |
| B-19 | M040DAA2014ZZ0 | Stopper B | 2 | |
| B-20 | PSAKIEM10306CT | Absorber | 3 | |
| B-21 | PSSRHYP18S5NAF | Sensor | 4 | |
| B-22 | M040DAA2011ZZ0 | Cylinder block | 1 | |
| B-23 | PAXADSAQ25015P | Cylinder | 1 | |
| B-24 | M040DAA2013ZZ0 | Stopper A | 1 | |
| B-25 | M040DAA2021ZZ0 | Bracket | 1 | |
| B-26 | M040DAA2023ZZ0 | Solenoid plate | 1 | |
| B-27 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-28 | PAXVAF05888888 | Air filter | 1 | |
| B-29 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-30 | PAXFEL06140888 | Fitting | 1 | |
| B-31 | M040DAA2025ZZ0 | Nut | 1 | |
| B-32 | M040DAB2015ZZ0 | Solenoid bracket | 1 | |
| B-33 | M040DAA2200000 | Solenoid valve unit | 1 | |
| B-34 | M040DAB2006ZZ0 | Solenoid plate | 1 | |
| B-35 | PBDCIFVECT8888 | Board | 1 | |
| B-36 | M040DAB2100000 | Solenoid valve unit | 1 | |
| B-37 | M040DAA2026ZZ0 | Solenoid bracket | 1 | |
| B-38 | M040DAA2017ZZ0 | Cableveyor plate-P | 1 | |
| B-39 | M040DAA2018ZZ0 | Cableveyor plate-R | 1 | |
| B-40 | M040DAA2019ZZ0 | Cableveyor bracket | 1 | |
| B-41 | M040DAA2020ZZ0 | Cableveyor bracket | 1 | |
| B-42 | PCVH4502B07588 | Cableveyor link | 22 | |
| B-43 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-44 | PCVH4501B07588 | Cableveyor link | 18 | |
| B-45 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| B-46 | M040DAA2022PW0 | Cover | 1 |
