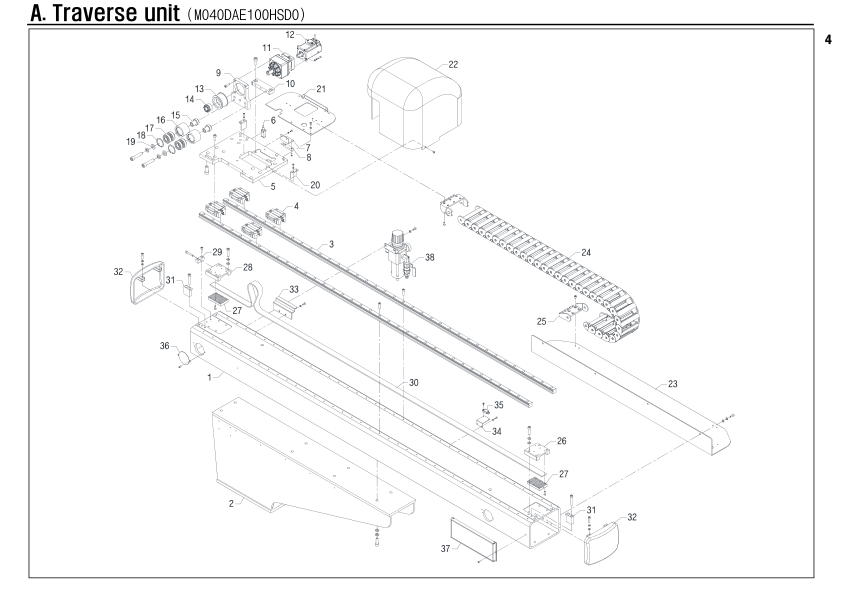

Traverse unit
Unit Number: M040DAE100HSD0
Robot: MACH-II-400D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M040DAA1001PW0 | Frame | 1 | |
| A-2 | MN20KFA1002PW0 | Base | 1 | |
| A-3 | PMLRHGR25R2140 | LM rail | 2 | |
| A-4 | PLMBQHW25CC888 | LM block | 4 | |
| A-5 | M040DAA1003ZZ0 | LM base | 1 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M015MAB1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M040DAA1004ZZ0 | Motor bracket | 1 | |
| A-10 | M040DAA1005ZZ0 | Motor plate | 1 | |
| A-11 | PRES78Z090SA04 | Reducer | 1 | |
| A-12 | PMTBMA401N2TN5 | Servo motor | 1 | |
| A-13 | M040DAA1006ZZ0 | Pulley | 1 | |
| A-14 | PPLMMA19338888 | Power lock | 1 | |
| A-15 | M040DAA1007ZZ0 | Collar | 2 | |
| A-16 | M015MAB2010MC0 | Idle roller | 2 | |
| A-17 | PBRA6004ZZ8888 | Bearing | 4 | |
| A-18 | PRGH042H888888 | Snap ring | 2 | |
| A-19 | M040DAA1008ZZ0 | Washer | 2 | |
| A-20 | MN20KFA1028ZZ0 | Plate | 2 | |
| A-21 | M040DAA1009ZZ0 | Cableveyor plate | 1 | |
| A-22 | MN20KFA1015MD0 | Cover | 1 | |
| A-23 | M040DAA1010ZZ0 | Cableveyor plate | 1 | |
| A-24 | PCVH4504B09588 | Cableveyor link | 30 | |
| A-25 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-26 | M015MAB1009ZZ0 | Gripper block | 1 | |
| A-27 | M015MAB1002MC0 | Gripper | 2 | |
| A-28 | M015MAB1004ZZ0 | Gripper block | 1 | |
| A-29 | M055MAA1004NI0 | Tension block | 1 | |
| A-30 | PBLTA103002500 | Timing belt | 2500 | |
| A-31 | M040DAA1002ZZ0 | Stopper | 2 | |
| A-32 | M015MAB1011PW0 | Cover | 2 | |
| A-33 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-34 | M015MAB1018MC0 | Bracket | 1 | |
| A-35 | PSSMRS52SHC888 | Magnet | 1 | |
| A-36 | MXAKAAB1004ZZ0 | Cover | 1 | |
| A-37 | MXAKAAB1000000 | Counter | 1 | |
| A-38 | PAXSTAW4000ASY | Filter regulator | 1 |
