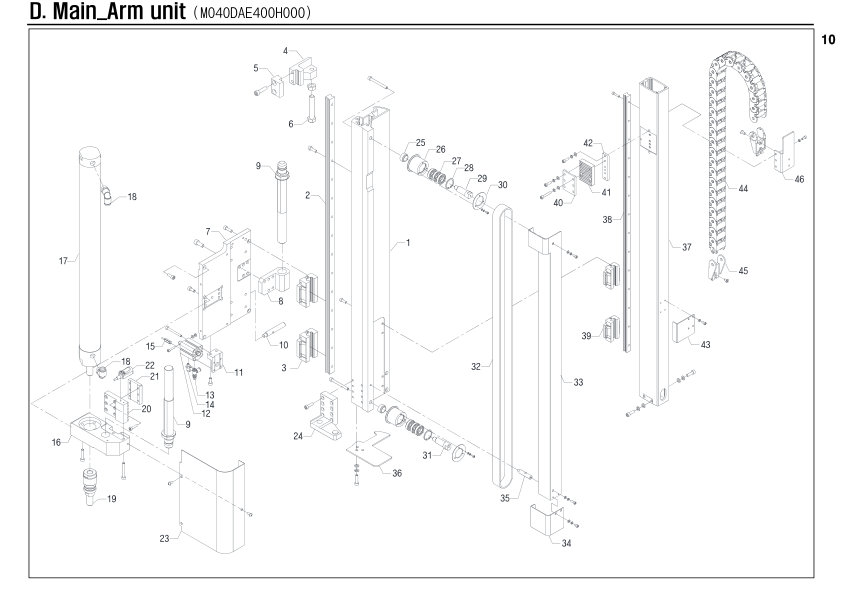

Main_Arm unit
Unit Number: M040DAE400H000
Robot: MACH-II-400D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M040FJA4006MC0 | Frame | 1 | |
| D-2 | PMLRHGR20R0880 | LM rail | 1 | |
| D-3 | PLMBQHW20CC888 | LM block | 2 | |
| D-4 | M020FFA4049HW0 | Stopper-A | 1 | |
| D-5 | M020FFA4050HW0 | Stopper-B | 1 | |
| D-6 | PMXSUST1270888 | Stopper bolt | 1 | |
| D-7 | M040DAA4001MC0 | Plate | 1 | |
| D-8 | M020FFA4014MC0 | Block | 1 | |
| D-9 | PSAKIEM14806CE | Absorber | 2 | |
| D-10 | M040DAA4008ZZ0 | Bar | 1 | |
| D-11 | M040DAA4009ZZ0 | Cylinder bracket | 1 | |
| D-12 | PAXA3357700108 | Cylinder | 1 | |
| D-13 | PAXFESC04M5888 | Speed controller | 1 | |
| D-14 | PAXFEL04M58888 | Fitting | 1 | |
| D-15 | PAXKKSME8SA888 | Sensor | 1 | |
| D-16 | M040DAA4005ZZ0 | Bracket | 1 | |
| D-17 | PAXA3474505588 | Cylinder | 1 | |
| D-18 | PAXFEL12140888 | Fitting | 2 | |
| D-19 | PAXFKM16X15888 | Ploating joint | 1 | |
| D-20 | M040DAA4004MC0 | Belt gripper | 1 | |
| D-21 | M035HAA3042ZZ0 | Gripper block | 1 | |
| D-22 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-23 | M040DAA4002ZZ0 | Cover | 1 | |
| D-24 | M020FFA4051ZZ0 | Block | 1 | |
| D-25 | M035HAA3018ZZ0 | Collar | 2 | |
| D-26 | M035HAA3021ZZ0 | Roller | 2 | |
| D-27 | PBRA6902ZZ8888 | Bearing | 6 | |
| D-28 | PRGH028H888888 | Snap ring | 2 | |
| D-29 | M015MAB4020ZZ0 | Shaft | 1 | |
| D-30 | M035HAA3015ZZ0 | Timing pulley | 2 | |
| D-31 | M035HAA3019ZZ0 | Shaft | 1 | |
| D-32 | PBLTH5M2501830 | Timing belt | 1830 | |
| D-33 | M040FJA4036ZZ0 | Belt cover | 1 | |
| D-34 | M015MAB4038ZZ0 | Belt cover | 1 | |
| D-35 | M015MAB3025ZZ0 | Shaft | 1 | |
| D-36 | M035HAA3037ZZ0 | Plate | 1 | |
| D-37 | M040DAA4007MC0 | Frame | 1 | |
| D-38 | PMLRHGR15R0820 | LM rail | 1 | |
| D-39 | PLMBQHW15CC888 | LM block | 2 | |
| D-40 | M035HAA3017ZZ0 | Gripper block | 1 | |
| D-41 | M035HAA3014MC0 | Belt gripper | 1 | |
| D-42 | M035HAA3010ZZ0 | Gripper nut | 1 | |
| D-43 | M040DAA4006ZZ0 | Sensor plate | 1 | |
| D-44 | PCVH3202B07588 | Cableveyor link | 27 | |
| D-45 | PCVE3202300088 | Cableveyor end bracket | 1 | |
| D-46 | M040DAA4003ZZ0 | Bracket | 1 |
