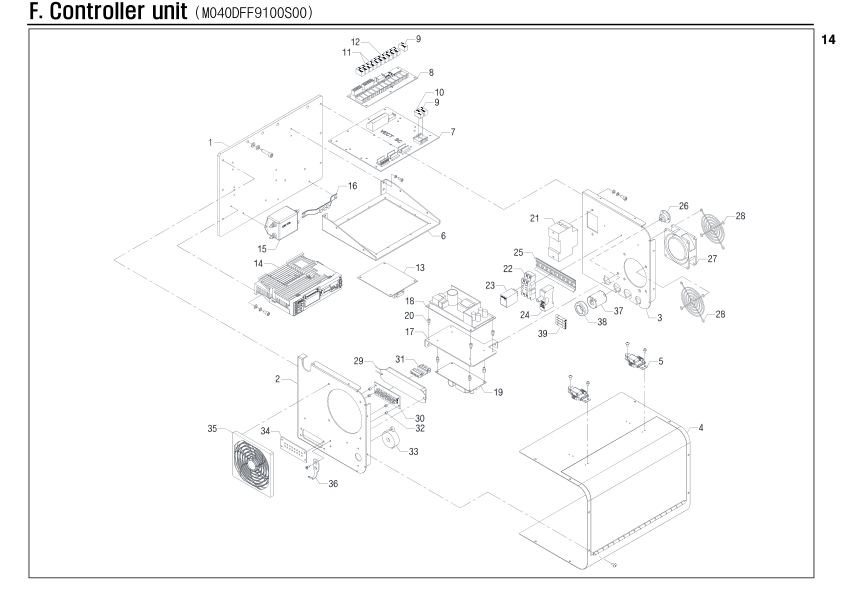

Controller unit

Unit Number: M040DFF9100S00

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
E-1	M020DFF9004ZZ0	Plate	1
E-2	M020DFF9011ZZ0	Plate	1
E-3	M020DFF9003ZZ0	Plate	1
E-4	M020DFF9007ZZ0	Cover	1
E-5	PMXBY117888888	Hook	2
E-6	M020DFF9005ZZ0	Board bracket	1
E-7	PBDDSC88888888	Board	1
E-8	PBDDIL88888888	Board	1
E-9	PRL1174PFDUS24	Relay	9
E-10	PRL2114PUS2488	Relay	1
E-11	PRL2214PUS2488	Relay	2
E-12	PRL2014PUS2488	Relay	1
E-13	PBDDVECT1X8888	Board	1
E-14	PMTXDA22411888	S ervo drive	1
E-15	PFTEDITES1T010	Noise filter	1
E-16	PEXELEBAR11588	Earth bar	1
E-17	M020DFF9008ZZ0	Bracket	1
E-18	PSMASMPS000188	SMPS	1
E-19	PSMAHN36S24NCE	SMPS	1
E-20	PEXSFM40705888	Support	8
E-21	PNSC32KGRC1588	Circuit breaker	1
E-22	PRLKLY28888888	Relay socket	1
E-23	PRLALY2N1DC248	Relay	1
E-24	PFSAKF10D18888	Fuse holder	1
E-25	M020BES9022MC0	Terminal chnnel	1
E-26	PCNCONK2003888	Connector	1
E-27	PEXFSJ8025HA28	Fan	1
E-28	PEXFS727205888	Fan Cover	2
E-29	PEXRS017W50K88	Regenerative resistor	1
E-30	PBDCLEDVECT888	Board	1
E-31	E020PFA8040060	Cable	1
E-32	PEXSFM30588888	Support	4
E-33	PEXZBUZZER8888	Buzzer	1
E-34	M020HFA9023MC0	Plate	1
E-35	PEXFFILTER102F	Fan filter	1
E-36	PMXCHOOKHYZ100	Hook	1
E-37	PMZCAT30351330	Ring core	1
E-38	CMHE70T3481221	Ring core	1
E-39	PFSA250V1A30MM	Fuse	4
