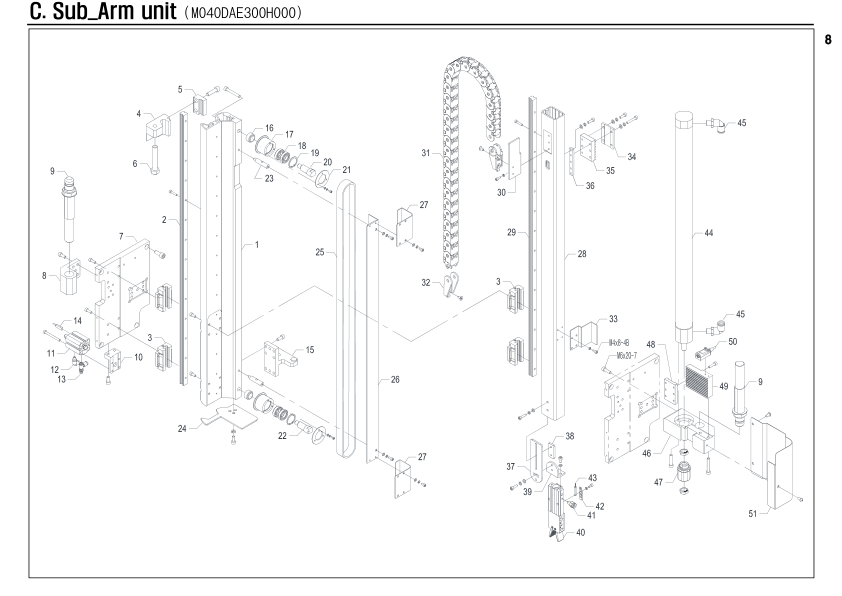

Sub_Arm unit

Unit Number: M040DAE300H000

Robot: MACH-II-400D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M040DAA3004MC0	Frame	1
C-2	PMLRHGR15R0840	LM rail	1
C-3	PLMBQHW15CC888	LM block	4
C-4	M015SAB3010HW0	Stopper-A	1
C-5	M015SAB3011HW0	Stopper-B	1
C-6	PMXSUST1270888	Stopper bolt	1
C-7	M040DAA3001MC0	Plate	1
C-8	M040DAA3009ZZ0	Block	1
C-9	PSAKIEM14506CE	Absorber	2
C-10	M040DAA4009ZZ0	Cylinder bracket	1
C-11	PAXA3357700108	Cylinder	1
C-12	PAXFEL04M58888	Fitting	1
C-13	PAXFESC04M5888	Speed controller	1
C-14	PAXKKSME8SA888	Sensor	1
C-15	M040DAA3006ZZ0	Block	1
C-16	M015MAB3018ZZ0	Collar	2
C-17	M015MAB3021ZZ0	Roller	2
C-18	PBRA6902ZZ8888	Bearing	4
C-19	PRGH028H888888	Snap ring	2
C-20	M015MAB3020ZZ0	Shaft	1
C-21	M015MAB3015ZZ0	Flange	2
C-22	M015MAB3019ZZ0	Shaft	1
C-23	M015MAB3025ZZ0	Shaft	2
C-24	M015MAB3037ZZ0	Plate	1
C-25	PBLTH5M2001700	Timing belt	1700
C-26	M040FJA3051ZZ0	Belt cover	1
C-27	M015MAB3038ZZ0	Belt cover	2
C-28	M040DAA3005MC0	Frame	1
C-29	PMLRHGR15R0820	LM rail	1
C-30	M040DAA3010ZZ0	Bracket	1
C-31	PCVH3201B07588	Cableveyor link	28
C-32	PCVE3201300088	Cableveyor end bracket	1
C-33	M015MAB3039ZZ0	Touch plate	1
C-34	M015MAB3017ZZ0	Gripper block	1
C-35	M015MAB3014MC0	Belt gripper	1
C-36	M015MAB3010ZZ0	Gripper nut	1
C-37	M015MAA3902MF0	Gripper bracket	1
C-38	M015MAA3903MF0	Gripper bracket nut	1
C-39	MS55AT34005ZC0	Gripper bracket B	1
C-40	PAXAHYCITYPE88	Hy air chuck(I-type)	1
C-41	PAXFEC06M58888	Fitting	1
C-42	MS55AT44302ZZ0	Sensor bracket	1
C-43	PSSMSHYCDA9388	Auto switch	1
C-44	PAXA3528505588	Cylinder	1
C-45	PAXFEL12140888	Fitting	2
C-46	M040DAA3002MC0	Bracket	1
C-47	PAXFKM12X12588	Floating joint	1
C-48	M015MAB3042ZZ0	Gripper block	1
C-49	M040DAA3003MC0	Belt gripper	1
C-50	PSSRHYP18S5NAF	Sensor	1
