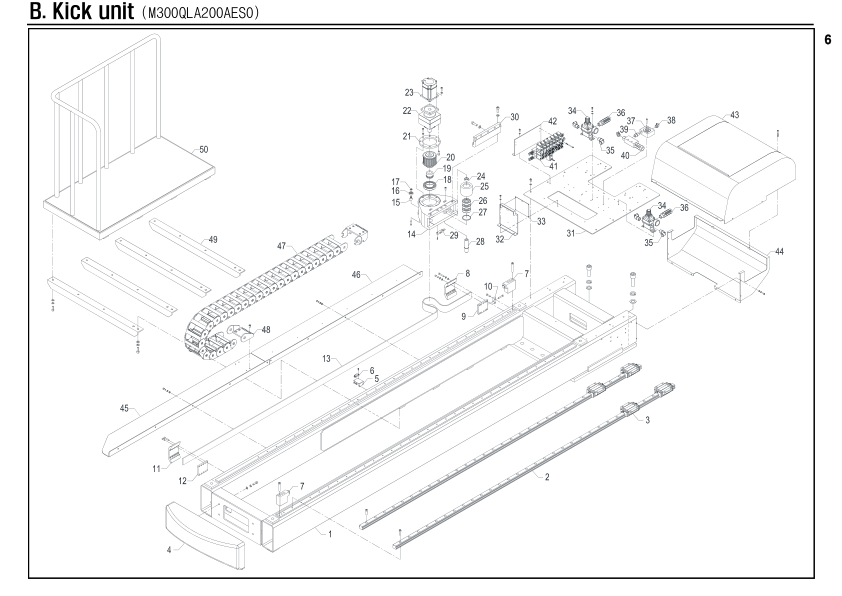

Kick unit
Unit Number: M300QLA200AES0
Robot: NEXIA-E-3000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M300QLA2001PW0 | Frame | 1 | |
| B-2 | PLMRSAH302470L | LM rail | 2 | |
| B-3 | PLMBSAH30EM888 | LM block | 4 | |
| B-4 | M200HFA2009ZZ0 | Cover | 1 | |
| B-5 | M015MAB1018MC0 | Bracket | 1 | |
| B-6 | PSSMRS52SHC888 | Magnet | 1 | |
| B-7 | M200HFA2011ZZ0 | Stopper | 2 | |
| B-8 | M200HFA2016MC0 | Gripper block | 1 | |
| B-9 | M200HFA2015MC0 | Gripper | 1 | |
| B-10 | M055MAA1004NI0 | Tension block | 1 | |
| B-11 | M130MAA4021MC0 | Belt gripper | 1 | |
| B-12 | M200HFA2014MC0 | Gripper | 1 | |
| B-13 | PBLTA105008888 | Timing belt | 2820 | |
| B-14 | M200HFA2006MC0 | Motor block | 1 | |
| B-15 | M130MAA4030ZZ0 | Guide shaft | 1 | |
| B-16 | PBRA6000ZZ8888 | Bearing | 1 | |
| B-17 | PRGS010S888888 | Snap ring | 1 | |
| B-18 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-19 | PPLMMA24428888 | Power lock | 1 | |
| B-20 | M200HFA2021ZZ0 | Timing pulley | 1 | |
| B-21 | M200HFA2024ZZ0 | Reducer plate | 1 | |
| B-22 | PRESSF15DPB088 | Reducer | 1 | |
| B-23 | PMTBMSMD082G1S | Servo motor | 1 | |
| B-24 | M200HFA2027ZZ0 | Collar | 2 | |
| B-25 | M080HFA2010ZZ0 | Roller | 2 | |
| B-26 | PBRA6304ZZ8888 | Bearing | 6 | |
| B-27 | PRGH052H888888 | Snap ring | 2 | |
| B-28 | M080HFA2007ZZ0 | Idle shaft | 2 | |
| B-29 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| B-30 | M200HFA2007ZZ0 | Joint block | 1 | |
| B-31 | M300QLA2012ZZ0 | Plate | 1 | |
| B-32 | M130HFA2014ZZ0 | Bracket | 1 | |
| B-33 | PBDCIFVECT8888 | Board | 1 | |
| B-34 | PAXSVEX133304G | Power valve | 2 | |
| B-35 | PAXFEL12120888 | Fitting | 4 | |
| B-36 | PAXZSILENCER12 | Silincer | 2 | |
| B-37 | PAXVAF06888888 | Vuccum air filter | 1 | |
| B-38 | PAXFEL08380888 | Fitting | 2 | |
| B-39 | PAXFDOUBLEPT38 | Fitting | 1 | |
| B-40 | PAXVAV020HS888 | Vacuum pump | 1 | |
| B-41 | M250ULB2100000 | Solenoid valve unit | 1 | |
| B-42 | M130HFB2029ZZ0 | Solenoid valve plate | 1 | |
| B-43 | M200HFA2013ZZ0 | Cover | 1 | |
| B-44 | M200HFA2010ZZ0 | Cover | 1 | |
| B-45 | M300QLA2008ZZ0 | Cableveyor bracket | 1 | |
| B-46 | M200HFA2028ZZ0 | Cavblevor bracket | 1 | |
| B-47 | PCVH6252312588 | Cableveyor link | 27 | |
| B-48 | PCVE6252300088 | Cableveyor end bracket | 1 | |
| B-49 | M200HFA2002PW0 | Guard angle | 4 | |
| B-50 | M200HFA2003PW0 | Guard rail | 1 |
