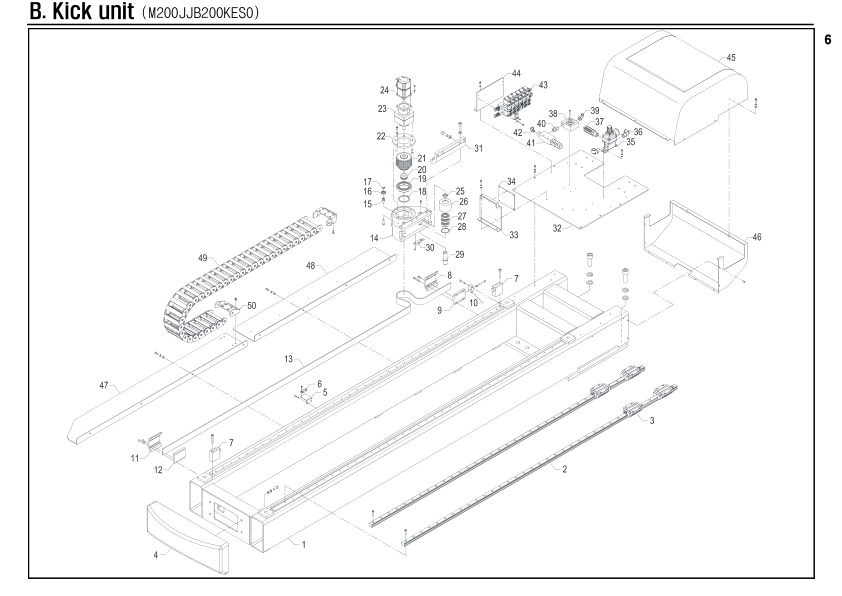

Kick unit
Unit Number: M200JJB200KES0
Robot: NEXIA-2000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M200FJB2001PW0 | Frame | 1 | |
| B-2 | PLMRSHS252080L | LM rail | 2 | |
| B-3 | PLMBSHS25CKZ18 | LM block | 4 | |
| B-4 | M130HFA2009PW0 | LM block | 1 | |
| B-5 | M015MAB1018MC0 | Bracket | 1 | |
| B-6 | PSSMRS52SHC888 | Magnet | 1 | |
| B-7 | M130MAA2011ZZ0 | Stopper | 2 | |
| B-8 | M130HFA2016MC0 | Gripper block | 1 | |
| B-9 | M130HFA2015MC0 | Gripper | 1 | |
| B-10 | M130MAA1004ZZ0 | Tension block | 1 | |
| B-11 | M130MAA2016MC0 | Gripper block | 1 | |
| B-12 | M130MAA2015MC0 | Gripper | 1 | |
| B-13 | PBLTA104008888 | Timing belt | 2430 | |
| B-14 | M130HFA2006MC0 | Motor block | 1 | |
| B-15 | M130MAA4030ZZ0 | Guide shaft | 1 | |
| B-16 | PBRA6000ZZ8888 | Bearing | 1 | |
| B-17 | PRGS010S888888 | Snap ring | 1 | |
| B-18 | PRGS055S888888 | Snap ring | 1 | |
| B-19 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-20 | PPLMMA19338888 | Power lock | 1 | |
| B-21 | M130MAA2021ZZ0 | Timing pulley | 1 | |
| B-22 | M130MAA2024ZZ0 | Reducer plate | 1 | |
| B-23 | PRESSF15CYA048 | Reducer | 1 | |
| B-24 | PMTBMSMD042G1S | Servo motor | 1 | |
| B-25 | M130MAA2027ZZ0 | Collar | 2 | |
| B-26 | M130MAA2026ZZ0 | Roller | 2 | |
| B-27 | PBRA6004ZZ8888 | Bearing | 6 | |
| B-28 | PRGH042H888888 | Snap ring | 2 | |
| B-29 | M040HFA2007ZZ0 | Idle shaft | 2 | |
| B-30 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| B-31 | M130HFA2007ZZ0 | Joint block | 1 | |
| B-32 | M130HFB2012ZZ0 | Plate | 1 | |
| B-33 | M130HFA2014ZZ0 | Bracket | 1 | |
| B-34 | PBDCIFVECT8888 | Board | 1 | |
| B-35 | PAXSVEX133304G | Power valve | 1 | |
| B-36 | PAXFEL12120888 | Fitting | 2 | |
| B-37 | PAXZSILENCER12 | Silincer | 1 | |
| B-38 | PAXVAF06888888 | Vuccum air filter | 1 | |
| B-39 | PAXFEL08380888 | Fitting | 1 | |
| B-40 | PAXFDOUBLEPT38 | Fitting | 1 | |
| B-41 | PAXVAV020HS888 | Vacuum pump | 1 | |
| B-42 | PAXFEL08140888 | Fitting | 1 | |
| B-43 | M130GFA2100000 | SOL_VALVE_ASSY | 1 | |
| B-44 | M130HFA2029ZZ0 | SOL_V/V_PLATE | 1 | |
| B-45 | M130HFA2013ZZ0 | Cover | 1 | |
| B-46 | M130HFA2010ZZ0 | Cover | 1 | |
| B-47 | M200FJA2008ZZ0 | Cableveyor bracket | 1 | |
| B-48 | M200FJA2034ZZ0 | Cableveyor bracket | 1 | |
| B-49 | PCVH4504312588 | Cableveyor link | 34 | |
| B-50 | PCVE4504300088 | Cableveyor end bracket | 1 |
