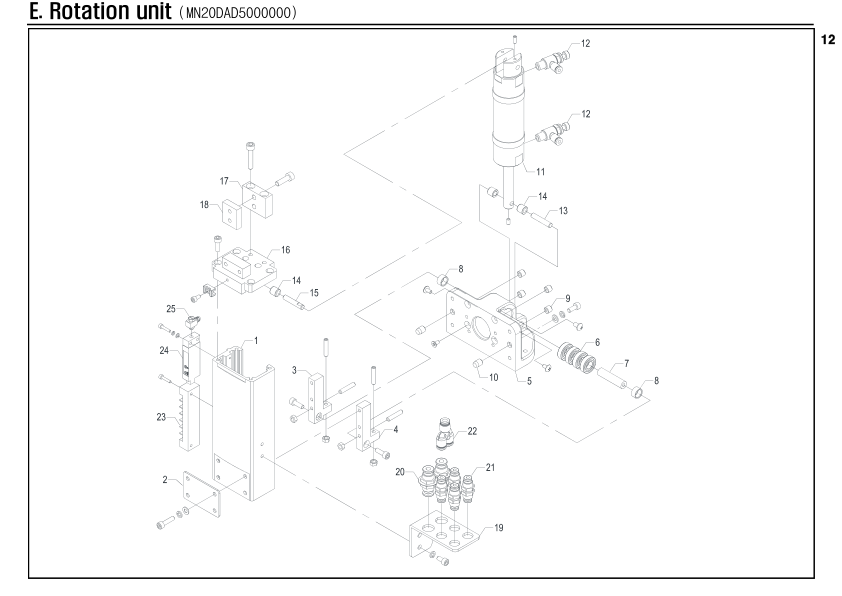

Rotation unit

Unit Number: MN20DAD5000000

Robot: MACH-300D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	MN20DAD5002MC0	Frame	1
E-2	M040KJG4041ZZ0	Plate	1
E-3	MN20DAA5004ZB0	Plate fix block	1
E-4	MN20DAA5003ZB0	Plate fix block	1
E-5	MN20KFG4003MC0	Plate	1
E-6	PBRA6900ZZ8888	Bearing	4
E-7	MN20KFG4007ZZ0	Pin	1
E-8	MN20KFG4006ZZ0	Collar	2
E-9	MN20KFG4047ZZ0	Pin	4
E-10	M035HAA5012ZZ0	Pin	2
E-11	PAXA0082320588	Cylinder	1
E-12	PAXFESC0418888	Speed controller	2
E-13	PMXPSFJ6328888	Shaft	1
E-14	PBRNFJ69ZZ8888	Roller bearing	3
E-15	M035HAA5009MC0	Pin	1
E-16	MN20DAD5016ZZ0	Block	1
E-17	M015HAB5004ZZ0	Block	1
E-18	M015HAB5011ZZ0	Block	1
E-19	MN20KFG4046ZZ0	Bracket	1
E-20	PAXFPMM0688888	Fitting	2
E-21	PAXFPMM0488888	Fitting	4
E-22	PAXFAYB0606888	Fitting	1
E-23	PTLA07P8888888	Terminal	1
E-24	PAXVPS6102VNAM	Sensor	1
E-25	PAXFBUVLM56888	Nipple	1
