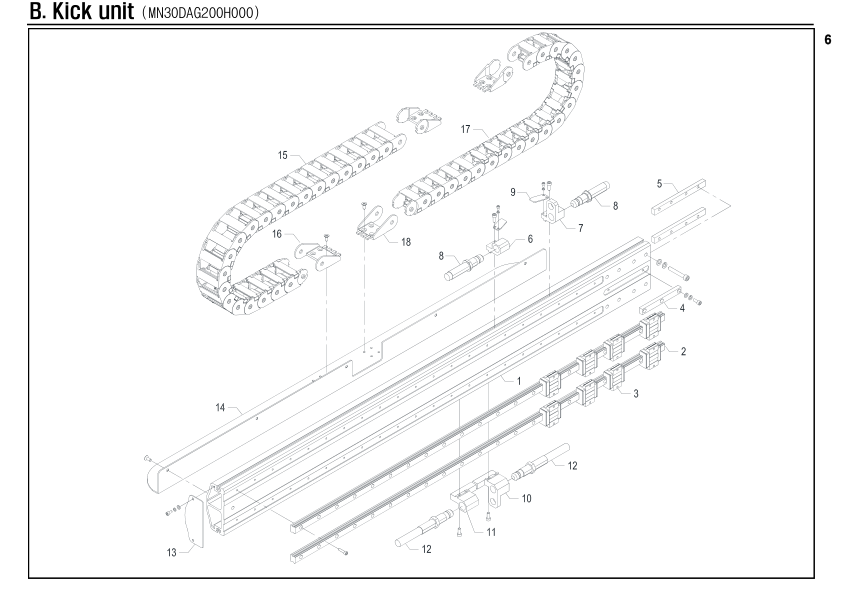

Kick unit
Unit Number: MN30DAG200H000
Robot: MACH-300D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | MN30DAG2001MC0 | Frame | 1 | |
| B-2 | PMLREGR20R1240 | LM rail | 2 | |
| B-3 | PLMBEGW20SA888 | LM block | 8 | |
| B-4 | MN20DAA2002NI0 | Key | 1 | |
| B-5 | MN20DAA0001NI0 | Key | 2 | |
| B-6 | MN20DAC2005ZZ0 | Stopper A | 1 | |
| B-7 | MN20DAC2006ZZ0 | Stopper A | 1 | |
| B-8 | PSAKIEM10306CT | Absorber | 2 | |
| B-9 | M040DAA2016ZZ0 | Touch plate | 2 | |
| B-10 | MN20DAC2007ZZ0 | Stopper C | 1 | |
| B-11 | MN20DAA2005NI0 | Stopper B | 1 | |
| B-12 | PSAKIEM10508CT | Absorber | 2 | |
| B-13 | MN20DAG2004ZZ0 | Cover | 1 | |
| B-14 | MN30DAG2003ZZ0 | Cableveyor bracket | 1 | |
| B-15 | PCVH4502309588 | Cableveyor link | 20 | |
| B-16 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-17 | PCVH4501B09588 | Cableveyor link | 19 | |
| B-18 | PCVE4501300088 | Cableveyor end bracket | 1 |
