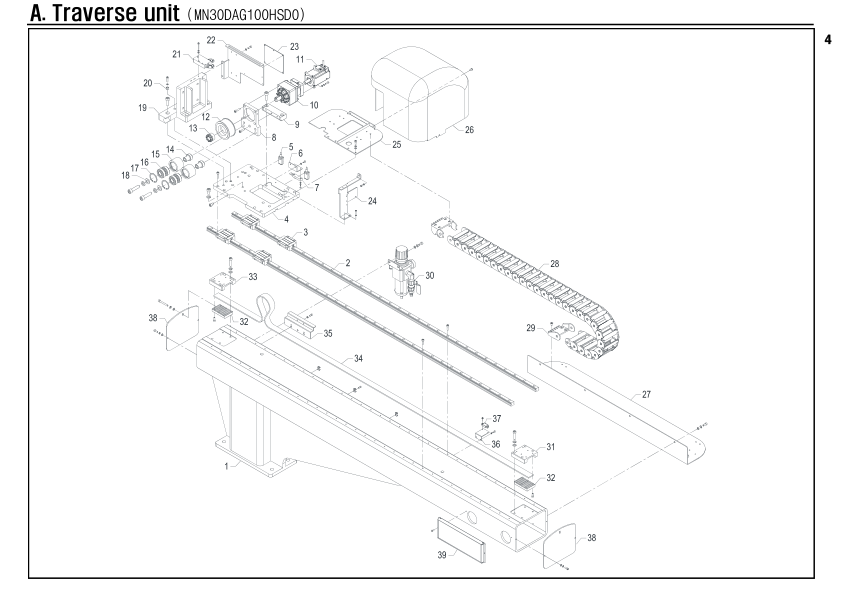

Traverse unit
Unit Number: MN30DAG100HSD0
Robot: MACH-300D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | MN30DAG1001PW0 | Body | 1 | |
| A-2 | PMLRHGR20R1900 | LM rail | 2 | |
| A-3 | PLMBQHW20CC888 | LM block | 4 | |
| A-4 | MN20DAG1003ZZ0 | LM base | 1 | |
| A-5 | PSSRHYP18S5NAF | Sensor | 2 | |
| A-6 | M015MAB1017MC0 | Bracket | 1 | |
| A-7 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-8 | M040DAA1004ZZ0 | Motor bracket | 1 | |
| A-9 | MN20DAC1005ZZ0 | Motor plate | 1 | |
| A-10 | PRES78Z090SA04 | Reducer | 1 | |
| A-11 | PMTBMA401N2TN5 | Servo motor | 1 | |
| A-12 | MN20KFA4012ZZ0 | Timing pulley | 1 | |
| A-13 | PPLMMA19338888 | Power lock | 1 | |
| A-14 | M040DAA1007ZZ0 | Collar | 2 | |
| A-15 | M015MAB2010MC0 | Idle roller | 2 | |
| A-16 | PBRA6004ZZ8888 | Bearing | 4 | |
| A-17 | PRGH042H888888 | Snap ring | 2 | |
| A-18 | M040DAA1008ZZ0 | Washer | 2 | |
| A-19 | MN20DAC1004MC0 | Plate | 1 | |
| A-20 | PBRNFJ69ZZ8888 | Roller bearing | 2 | |
| A-21 | PAXVAV015HS888 | Vacuum pump | 1 | |
| A-22 | MN20DAC1602ZZ0 | Solenoid plate | 1 | |
| A-23 | PBDCIFVECT8888 | Board | 1 | |
| A-24 | MN20DAC1006ZZ0 | Solenoid plate | 1 | |
| A-25 | MN20DAC1009ZZ0 | Cableveyor plate | 1 | |
| A-26 | MN20DAG1015MD0 | Cover | 1 | |
| A-27 | MN30DAC1010ZZ0 | Cableveyor plate | 1 | |
| A-28 | PCVH4503309588 | Cableveyor link | 28 | |
| A-29 | PCVE4503300088 | Cableveyor end bracket | 1 | |
| A-30 | PAXSTAW4000ASY | Filter regulator | 1 | |
| A-31 | M015MAB1009ZZ0 | Gripper block | 1 | |
| A-32 | M015MAB1002MC0 | Gripper | 2 | |
| A-33 | M015MAB1004ZZ0 | Gripper block | 1 | |
| A-34 | PBLTA103088888 | Timing belt | 2290 | |
| A-35 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-36 | M015MAB1018MC0 | Bracket | 1 | |
| A-37 | PSSMRS52SHC888 | Magnet | 1 | |
| A-38 | MN20KFG1025ZZ0 | Bracket | 2 | |
| A-39 | MXAKAAB1000000 | Counter | 1 |
