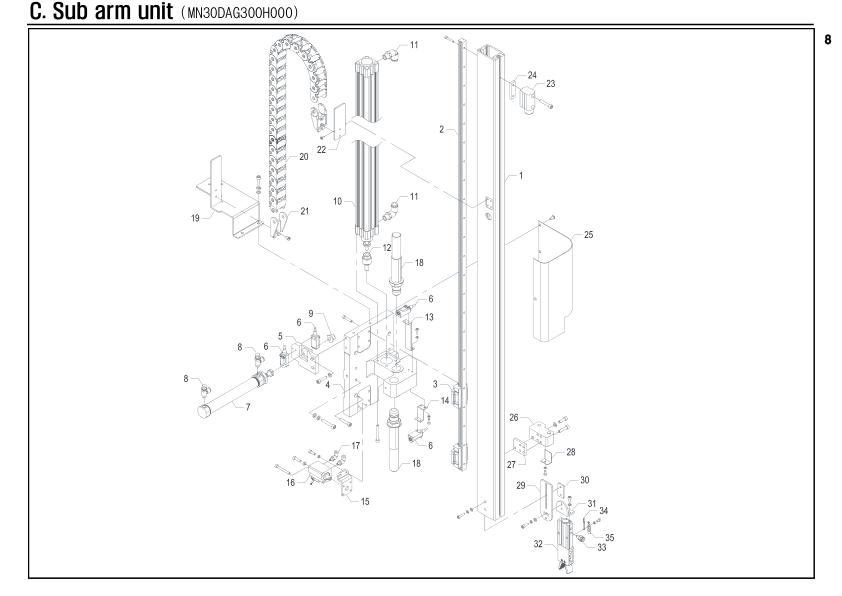

Sub arm unit
Unit Number: MN30DAG300H000
Robot: MACH-300D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| C-1 | MN30DAD3201MC0 | Frame | 1 | |
| C-2 | PMLRHGR15R1360 | LM rail | 1 | |
| C-3 | PLMBQHW15CC888 | LM block | 2 | |
| C-4 | MN20DAD3101HW0 | Base | 1 | |
| C-5 | MN20DAC3301ZZ0 | Block | 1 | |
| C-6 | PSSRHYP18S5NAF | Sensor | 4 | |
| C-7 | PAXATCM2BZ2515 | Cylinder | 1 | |
| C-8 | PAXFESC0618088 | Fitting | 2 | |
| C-9 | M040DAA4010ZZ0 | Cylinder rod nut | 1 | |
| C-10 | PAXA3974611088 | Cylinder | 1 | |
| C-11 | PAXFEL12140888 | Fitting | 2 | |
| C-12 | PAXJFJ10125SY8 | Floating Joint | 1 | |
| C-13 | MN20DAA4102NI0 | Sensor bracket | 1 | |
| C-14 | MN20DAA4103NI0 | Sensor bracket | 1 | |
| C-15 | MN20DAG4401ZZ0 | Cylinder bracket | 1 | |
| C-16 | PAXATCDQ2W2010 | Cylinder | 1 | |
| C-17 | PAXFEL04M58888 | Fitting | 2 | |
| C-18 | PSAKIEM14508CE | Absorber | 2 | |
| C-19 | MN30DAD3002ZZ0 | Cableveyor bracket | 1 | |
| C-20 | PCVH3202307588 | Cableveyor link | 28 | |
| C-21 | PCVE3202300088 | Cableveyor end bracket | 1 | |
| C-22 | MN20KFA3023ZZ0 | Cableveyor bracket | 1 | |
| C-23 | MN20DAA4205NI0 | Stopper | 1 | |
| C-24 | MN20DAA4208NI0 | Stopper nut | 1 | |
| C-25 | MN20DAA0003ZZ0 | Cover | 1 | |
| C-26 | MN20DAA3204NI0 | Block | 1 | |
| C-27 | MN20DAA4202NI0 | Nut | 1 | |
| C-28 | MN20DAA4105ZZ0 | Sensor plate | 1 | |
| C-29 | M015MAA3902MF0 | Gripper bracket | 1 | |
| C-30 | M015MAA3903MF0 | Gripper bracket nut | 1 | |
| C-31 | MS55AT34005ZW0 | Gripper bracket | 1 | |
| C-32 | PAXAHYCITYPE88 | Hy air chuck(I-type) | 1 | |
| C-33 | PAXFEC04M58888 | Fitting | 1 | |
| C-34 | PSSMSHYCDA9388 | Auto switch | 1 | |
| C-35 | MS55AT44302ZZ0 | Sensor bracket | 1 |
