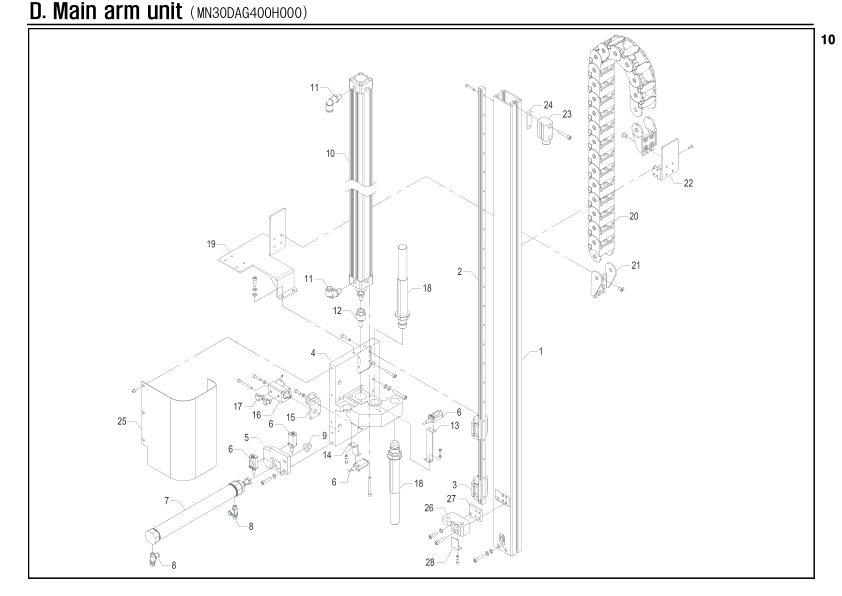

Main arm unit
Unit Number: MN30DAG400H000
Robot: MACH-300D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MN30DAD4201MC0 | Frame | 1 | |
| D-2 | PMLRHGR15R1300 | LM rail | 1 | |
| D-3 | PLMBQHW15CC888 | LM block | 2 | |
| D-4 | MN20DAD4101HW0 | Base | 1 | |
| D-5 | MN20DAC4301ZZ0 | Block | 1 | |
| D-6 | PSSRHYP18S5NAF | Sensor | 4 | |
| D-7 | PAXATCM2BZ3225 | Cylinder | 1 | |
| D-8 | PAXFESC0618088 | Fitting | 2 | |
| D-9 | M040DAA4010ZZ0 | Cylinder rod nut | 1 | |
| D-10 | PAXA3972810588 | Cylinder | 1 | |
| D-11 | PAXFEL12140888 | Fitting | 2 | |
| D-12 | PAXJFJ10125SY8 | Floating Joint | 1 | |
| D-13 | MN20DAA4102NI0 | Sensor bracket | 1 | |
| D-14 | MN20DAA4103NI0 | Sensor bracket | 1 | |
| D-15 | MN20DAG4401ZZ0 | Cylinder bracket | 1 | |
| D-16 | PAXATCDQ2W2010 | Cylinder | 1 | |
| D-17 | PAXFEL04M58888 | Fitting | 2 | |
| D-18 | PSAKIEM14808CE | Absorber | 2 | |
| D-19 | MN30DAC4001ZZ0 | Cableveyor bracket | 1 | |
| D-20 | PCVH4501B07588 | Cableveyor link | 20 | |
| D-21 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| D-22 | MN20TFA4023ZZ0 | Cableveyor bracket | 1 | |
| D-23 | MN20DAA4205NI0 | Stopper | 1 | |
| D-24 | MN20DAA4208NI0 | Stopper nut | 1 | |
| D-25 | MN20DAC4302ZZ0 | Cover | 1 | |
| D-26 | MN20DAA4209NI0 | Block | 1 | |
| D-27 | MN20DAA4202NI0 | Nut | 1 | |
| D-28 | MN20DAA4105ZZ0 | Sensor plate | 1 |
