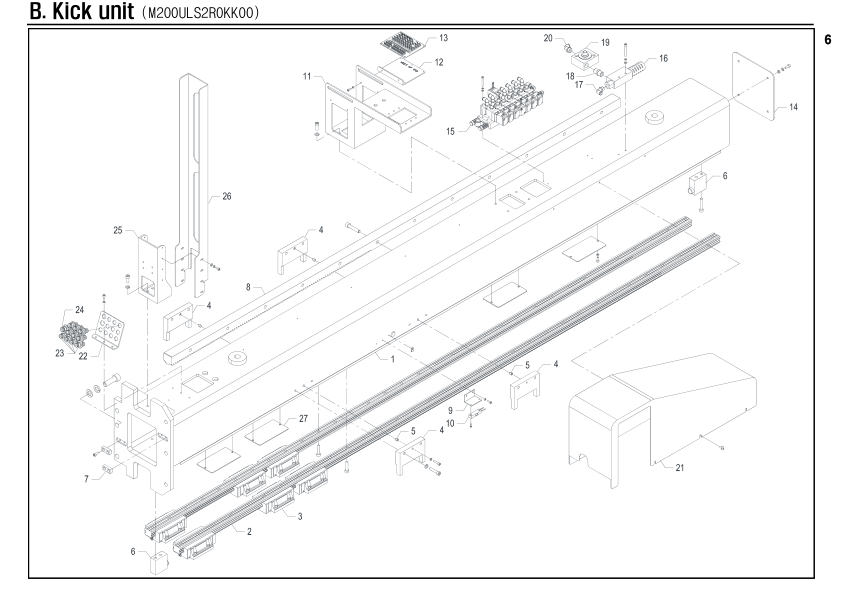

Kick unit
Unit Number: M200ULS2R0KK00
Robot: EPIK-E-2500SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M200ULS2001PW0 | Frame | 1 | |
| B-2 | PLMRSHS352600L | LM rail | 2 | |
| B-3 | PLMBSHS35CKZ18 | LM block | 6 | |
| B-4 | M250ULB2016TH0 | Guide plate | 4 | |
| B-5 | M035HAA5012ZZ0 | Pin | 4 | |
| B-6 | M130MAA2011ZZ0 | Stopper | 2 | |
| B-7 | M200ULA2020ZZ0 | Joint key | 2 | |
| B-8 | M200ULS2050ZZXA | Helical rack | 1 | |
| B-9 | M015MAB1017MC0 | Bracket | 1 | |
| B-10 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| B-11 | M200ULA2012ZZ0 | Cableveyor Bracket | 1 | |
| B-12 | M040FFA2038ZZ0 | Plate | 1 | |
| B-13 | PBDCIFKEBA8888 | Board | 1 | |
| B-14 | M200ULA2009ZZ0 | Cover | 1 | |
| B-15 | M200ULS2100000 | Solenoid valve unit | 1 | |
| B-16 | PAXVAV020HS888 | Vacuum pump | 1 | |
| B-17 | PAXFEL08140888 | Fitting | 1 | |
| B-18 | PAXFDOUBLEPT38 | Fitting | 1 | |
| B-19 | PAXVAF06888888 | Vuccum air filter | 1 | |
| B-20 | PAXFEL08380888 | Fitting | 1 | |
| B-21 | M200ULA2013ZZ0 | Solenoid cover | 1 | |
| B-22 | M200ULA2038ZZ0 | Plate | 1 | |
| B-23 | PAXFPMM0688888 | Fitting | 10 | |
| B-24 | PAXFPMM0888888 | Fitting | 1 | |
| B-25 | M200ULA4028ZZ0 | Cableveyor Bracket | 1 | |
| B-26 | M130HFA4046ZZ0 | Plate | 1 | |
| B-27 | M200ULA2034ZZ0 | Cover | 4 |
