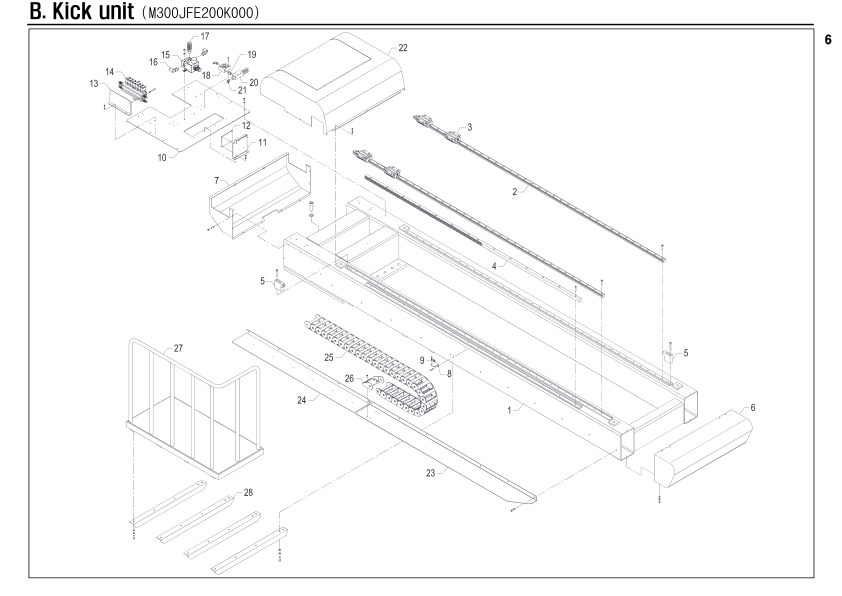

Kick unit
Unit Number: M300JFE200K000
Robot: NEXIA-3000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M300JFB2001PW0 | Frame | 1 | |
| B-2 | PLMRSHS302760L | LM rail | 2 | |
| B-3 | PLMBSHS30CKZ18 | LM block | 4 | |
| B-4 | M300JFE2050ZZ0 | Helical rack | 1 | |
| B-5 | M200HFA2011ZZ0 | Stopper | 2 | |
| B-6 | M300JFA2009ZZ0 | Cover | 1 | |
| B-7 | M300JFA2010ZZ0 | Cover | 1 | |
| B-8 | M015MAB1018MC0 | Bracket | 1 | |
| B-9 | PSSMRS52SHC888 | Magnet | 1 | |
| B-10 | M300JFA2012ZZ0 | Plate | 1 | |
| B-11 | M130HFA2014ZZ0 | Bracket | 1 | |
| B-12 | PBDCIFVECT8888 | Board | 1 | |
| B-13 | M130HFB2029ZZ0 | Solenoid valve plate | 1 | |
| B-14 | M250ULB2100000 | Solenoid valve unit | 1 | |
| B-15 | PAXSVEX153304G | Power valve | 1 | |
| B-16 | PAXFEL16120888 | Fitting | 2 | |
| B-17 | PAXZSILENCER12 | Silincer | 1 | |
| B-18 | PAXVAF06888888 | Vuccum air filter | 1 | |
| B-19 | PAXFDOUBLEPT38 | Fitting | 1 | |
| B-20 | PAXVAV020HS888 | Vacuum pump | 1 | |
| B-21 | PAXFEL08140888 | Fitting | 2 | |
| B-22 | M300JFA2013ZZ0 | Cover | 1 | |
| B-23 | M300JFA2008ZZ0 | Plate | 1 | |
| B-24 | M200HFA2028ZZ0 | Cavblevor bracket | 1 | |
| B-25 | PCVH6252312588 | Cableveyor link | 31 | |
| B-26 | PCVE6252300088 | Cableveyor end bracket | 1 | |
| B-27 | M200HFA2003PW0 | Guard rail | 1 | |
| B-28 | M200HFA2002PW0 | Guard angle | 4 |
