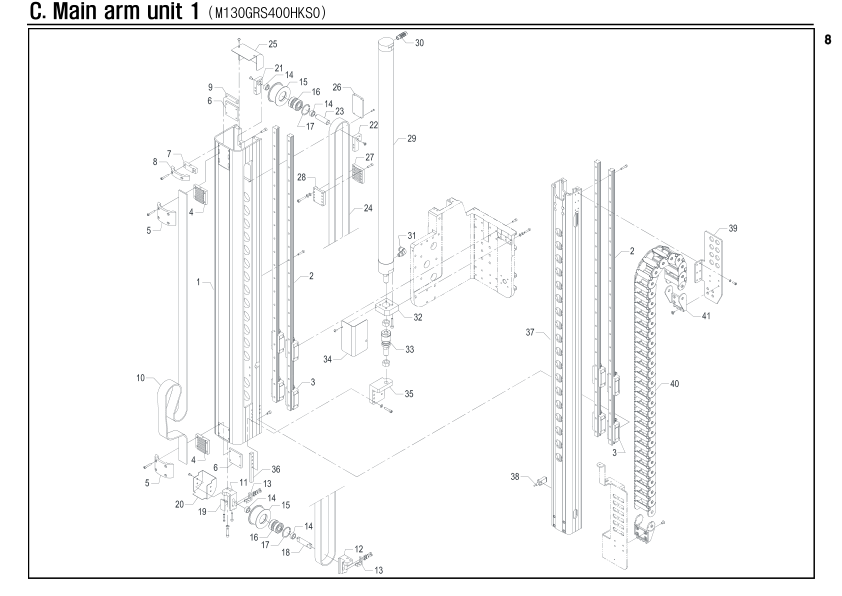

Main arm unit

Unit Number: M130GRS400HKS0

Robot: UNIK-II-1300D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M130GRE4006MC0	File	1
C-2	PMLRHGR20R1240	LM rail	4
C-3	PLMBQHH20CA888	LM block	8
C-4	M060HFA4009MC0	Gripper	2
C-5	M060HFA4008MC0	Gripper block	2
C-6	M060HFA4010ZZ0	Gripper nut	2
C-7	M060HFA4012ZZ0	Gripper block	1
C-8	M060HFA4011MC0	Gripper block	1
C-9	M060HFA4013ZZ0	Nut	1
C-10	PBLTA104088888	Timing belt	1810
C-11	M130GRE4022ZZ0	Pulley block	1
C-12	M130GRE4023ZZ0	Pulley block	1
C-13	M060HFA4065ZZXA	Bracket	2
C-14	M060HFA4036ZZ0	Collar	4
C-15	M060HFA4025ZZ0	Roller	2
C-16	PBRA6203ZZ8888	Bearing	4
C-17	PRGH040H888888	Snap ring	2
C-18	M060HFA4024ZZXA	Shaft	1
C-19	M250ULA4040ZZ0	Plate	1
C-20	M060HFA4045ZZ0	Cover	1
C-21	M060HFA4020ZZ0	Bearing block	1
C-22	M060HFA4019ZZ0	Bearing block	1
C-23	M060HFA4021ZZ0	Shaft	1
C-24	PBLTA103088888	Timing belt	2880
C-25	M130GRE4044ZZ0	Cover	1
C-26	M060HFA4048ZZ0	Gripper block	1
C-27	M060HFA4014MC0	Gripper	1
C-28	M060HFA4017ZZ0	Gripper block	1
C-29	PAXA3474509218	Cylinder	1
C-30	PAXZSILENCER14	Silincer	1
C-31	PAXFEL10148888	Fitting	1
C-32	M130GRE4026ZZXA	Block	1
C-33	PAXFKM16X15888	Ploating joint	1
C-34	M130GRE4043ZZXA	Cover	1
C-35	M130GRE4027ZZXA	Block	1
C-36	M130GRE4028ZZ0	Nut	1
C-37	M130GRE4007MC0	File	1
C-38	PSSRHYP18S5NAF	Sensor	1
C-39	M130GRE4047ZZXA	Bracket	1
C-40	PCVH4502B07588	Cableveyor link	32
C-41	PCVE4502300088	Cableveyor end bracket	1
C-42	M130GRE4001MC0	Base	1
C-43	M130GRE4050ZZ0	Stopper	1
C-44	M130GRE4034MC0	Block	1
C-45	PPLMMA24428888	Power lock	1
C-46	M060HFA4032ZZ0	Timing pully	1
C-47	PRESSFS9DPB088	Reducer	1
C-48	PMTBEMJ10APB24	Servo motor	1
C-49	M200HFA4042ZZ0	Collar	3
C-50	M130GRE4011ZZ0	Roller	3
C-51	PBRA6005ZZ8888	Bearing	9
C-52	PRGH047H888888	Snap ring	3
C-53	M130GRE4035ZZ0	Shaft	3
C-54	M130GRE4045ZZXA	Bracket	1
C-55	M060HFA4016ZZ0	Gripper block	1
C-56	M060HFA4046MC0	Gripper	2
C-57	PAXAIDF32AS20T	Cylinder	1
C-58	PAXFEC06180888	Fitting	1
C-59	M080HRE4040ZZ0	Sensor bracket	1
C-60	PSSMRS1SH88888	Sensor	1
C-61	MN20BDA1007ZZ0	Collar	2
C-62	PBRA6302ZZ8888	Bearing	4
C-63	M130GRE4036MC0	Bracket	1
C-64	M130GRE2017ZZ0	Block	2
C-65	PPLMMA19338888	Power lock	1
C-66	MN08KFA1005ZZ0	Timing pulley	1
C-67	M130GRE2015ZZ0	Bracket	1
C-68	PRESSFS9CPB048	Reducer	1
C-69	PMTBEMJ04APB22	Servo motor	1
C-70	M130GRE4018ZZXA	Bracket	1
C-71	M130GRE4048ZZ0	Cover	1
C-72	M130GRE4042ZZXA	Cover	1
