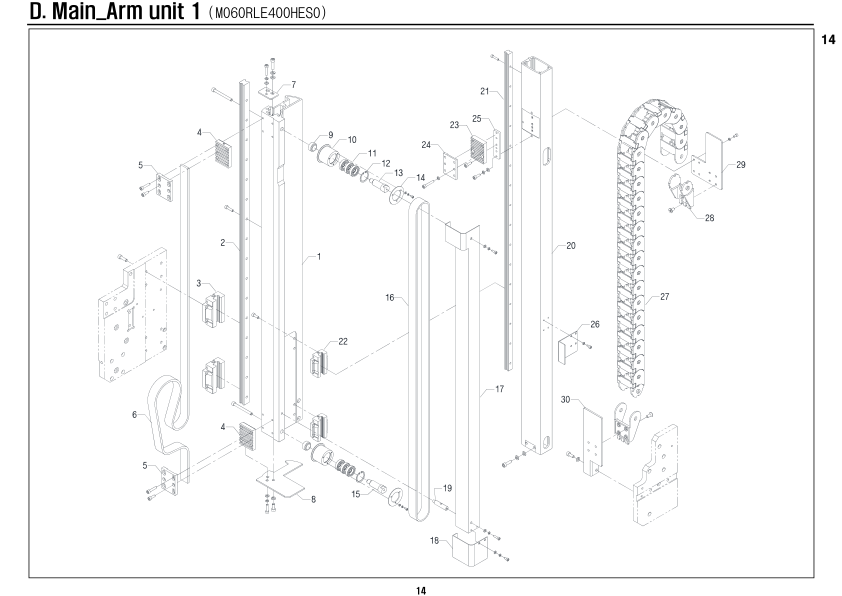

Main_Arm unit
Unit Number: M060RLE400HES0
Robot: NEXIA-E-600D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M060RLA4006MC0 | File | 1 | |
| D-2 | PMLRHGR20R0970 | LM rail | 1 | |
| D-3 | PLMBQHW20CC888 | LM block | 2 | |
| D-4 | M020KFC4033MC0 | Belt gripper | 2 | |
| D-5 | M015MAB4016ZZ0 | Gripper block | 2 | |
| D-6 | PBLTU8M2588888 | Timing belt | 1424 | |
| D-7 | M015MAB3044ZZ0 | Plate | 1 | |
| D-8 | M035HAA3037ZZ0 | Plate | 1 | |
| D-9 | M035HAA3018ZZ0 | Collar | 2 | |
| D-10 | M035HAA3021ZZ0 | Roller | 2 | |
| D-11 | PBRA6902ZZ8888 | Bearing | 6 | |
| D-12 | PRGH028H888888 | Snap ring | 2 | |
| D-13 | M015MAB4020ZZ0 | Shaft | 1 | |
| D-14 | M035HAA3015ZZ0 | Timing pulley | 2 | |
| D-15 | M035HAA3019ZZ0 | Shaft | 1 | |
| D-16 | PBLTU5M2588888 | Timing belt | 1965 | |
| D-17 | M060RLA4036ZZ0 | Belt cover | 1 | |
| D-18 | M015MAB4038ZZ0 | Belt cover | 1 | |
| D-19 | M015MAB3025ZZ0 | Shaft | 1 | |
| D-20 | M060RLA4007MC0 | File | 1 | |
| D-21 | PMLRHGR15R0960 | LM rail | 1 | |
| D-22 | PLMBQHW15CC888 | LM block | 2 | |
| D-23 | M035HAA3014MC0 | Belt gripper | 1 | |
| D-24 | M035HAA3017ZZ0 | Gripper block | 1 | |
| D-25 | M035HAA3010ZZ0 | Gripper nut | 1 | |
| D-26 | M015MAB4039ZZ0 | Bracket | 1 | |
| D-27 | PCVH4501B07588 | Cableveyor link | 23 | |
| D-28 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| D-29 | M015MAB4023ZZ0 | Bracket | 1 | |
| D-30 | M015MAB4044ZZ0 | Bracket | 1 | |
| D-31 | M015MAB4001MC0 | Plate | 1 | |
| D-32 | M015MAB4025ZZ0 | Bar | 1 | |
| D-33 | M015MAB4009ZZ0 | Shaft | 4 | |
| D-34 | PRGH035H888888 | Snap ring | 3 | |
| D-35 | PRGS015S888888 | Snap ring | 6 | |
| D-36 | PBRA6202ZZ8888 | Bearing | 6 | |
| D-37 | M035HAA3011ZZ0 | Roller | 3 | |
| D-38 | M015MAB4003MC0 | Plate | 1 | |
| D-39 | M015MAB4005ZZ0 | Plate A | 1 | |
| D-40 | M015MAB4043MC0 | Block | 1 | |
| D-41 | M020KFA4043MC0 | Block | 1 | |
| D-42 | M015MAB4041MD0 | Cover | 1 | |
| D-43 | M015MAB4042ZZ0 | Cover | 1 | |
| D-44 | M015MAB4004MC0 | Belt gripper | 1 | |
| D-45 | M035HAA3042ZZ0 | Gripper block | 1 | |
| D-46 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-47 | M015MAB3032ZZ0 | Bracket | 1 | |
| D-48 | M035HAA3031MC0 | Belt gripper | 1 | |
| D-49 | M015MAB4040ZZ0 | Bracket | 1 | |
| D-50 | E020PFA5020030 | Sensor cable | 1 | |
| D-51 | M015MAB4013ZZ0 | Plate | 1 | |
| D-52 | PRESSF15DPB088 | Reducer | 1 | |
| D-53 | PMTBMSMD082G1T | Servo motor | 1 | |
| D-54 | M060RLA4012ZZ0 | Timing pulley | 1 | |
| D-55 | PPLMMA24428888 | Power lock | 1 | |
| D-56 | M015MAB4024ZZ0 | Bracket | 1 | |
| D-57 | M015MAB4034ZZ0 | Cableveyor fixed bracket | 1 | |
| D-58 | M015MAB4035MD0 | Cover | 1 |
