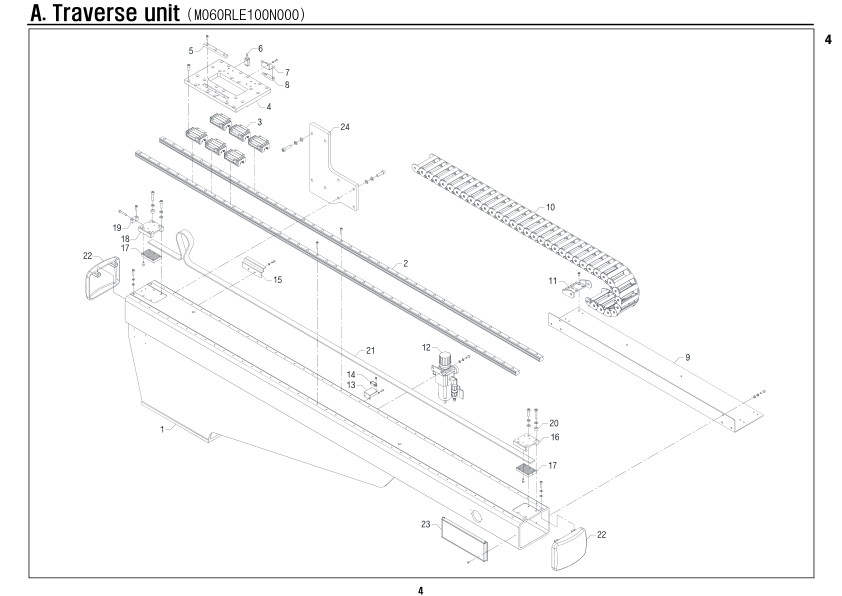

Traverse unit
Unit Number: M060RLE100N000
Robot: NEXIA-E-600D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M060RLA1001PW0 | Body | 1 | |
| A-2 | PLMRSAH252440L | LM rail | 2 | |
| A-3 | PLMBSAH25EM888 | LM block | 6 | |
| A-4 | M060RLA1012ZZ0 | LM base | 1 | |
| A-5 | M035HAA1013ZZ0 | Key | 1 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M015MAB1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M040HKB1010ZZ0 | Cableveyor plate | 1 | |
| A-10 | PCVH4504B09588 | Cableveyor link | 36 | |
| A-11 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-12 | PAXSTAW4000ASY | Filter regulator | 1 | |
| A-13 | M015MAB1018MC0 | Bracket | 1 | |
| A-14 | PSSMRS52SHC888 | Magnet | 1 | |
| A-15 | M060RLA1007ZZ0 | Bracket | 1 | |
| A-16 | M015MAB1009ZZ0 | Gripper block | 1 | |
| A-17 | M015MAB1002MC0 | Gripper | 2 | |
| A-18 | M015MAB1004ZZ0 | Gripper block | 1 | |
| A-19 | M055MAA1004NI0 | Tension block | 1 | |
| A-20 | M015MAB1016ZZ0 | Block | 4 | |
| A-21 | PBLTA103008888 | Timing belt | 2820 | |
| A-22 | M015MAB1011PW0 | Cover | 2 | |
| A-23 | MXAKAAB1000000 | Counter | 1 | |
| A-24 | MN20TEA1021PW0 | Plate | 1 |
