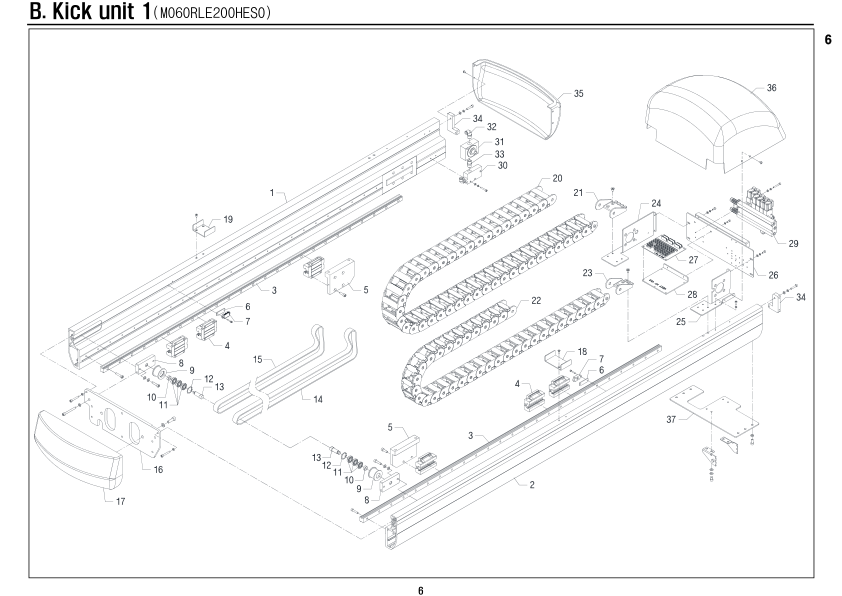

Kick unit
Unit Number: M060RLE200HES0
Robot: NEXIA-E-600D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M060FLA2001MC0 | File | 1 | |
| B-2 | M060FLA2002MC0 | File | 1 | |
| B-3 | PMLRHGR20R1480 | LM rail | 2 | |
| B-4 | PLMBQHW20CC888 | LM block | 6 | |
| B-5 | M015MAB4008ZZ0 | Plate A | 2 | |
| B-6 | M015MAB2035MC0 | Nut key | 2 | |
| B-7 | PSSMRS52SHC888 | Magnet | 2 | |
| B-8 | M035HAA2045ZZ0 | Tention block | 2 | |
| B-9 | M035HAA2043ZZ0 | Idle roller | 6 | |
| B-10 | M035HAA2044ZZ0 | Collar | 6 | |
| B-11 | PBRA6901ZZ8888 | Bearing | 18 | |
| B-12 | PRGH024H888888 | Snap ring | 6 | |
| B-13 | M035HAA2042ZZ0 | Shaft | 6 | |
| B-14 | PBLTU5M2088888 | Timing belt | 3400 | |
| B-15 | PBLTU5M2088888 | Timing belt | 3265 | |
| B-16 | M015MAB2020ZZ0 | Pull out cover | 1 | |
| B-17 | M015MAB2021PW0 | Cover | 1 | |
| B-18 | M015MAB2036MC0 | Bracket | 1 | |
| B-19 | M015MAB2037MC0 | Bracket | 1 | |
| B-20 | PCVH4502309588 | Cableveyor link | 41 | |
| B-21 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-22 | PCVH4501B07534 | Cableveyor link | 34 | |
| B-23 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| B-24 | M015MAB2024ZZ0 | Solenoid valve boxbase B | 1 | |
| B-25 | M015MAB2023ZZ0 | Solenoid valve boxbase A | 1 | |
| B-26 | M015MAB2029ZZ0 | Solenoid valve boxbase C | 1 | |
| B-27 | PBDCIFVECT8888 | Board | 1 | |
| B-28 | M040FFA2038ZZ0 | Plate | 1 | |
| B-29 | M060KJA2100000 | Solenoid valve unit | 1 | |
| B-30 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-31 | PAXVAF05888888 | Air filter | 1 | |
| B-32 | PAXFEL06140888 | Fitting | 1 | |
| B-33 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-34 | M015MAB2034MC0 | Cover block | 2 | |
| B-35 | M015MAB2031MD0 | Cover | 1 | |
| B-36 | M015MAB2039ZZ0 | Solbox cover | 1 | |
| B-37 | M015MAB2032MD0 | Cableveyor plate | 1 | |
| B-38 | M015MAB2003MC0 | Slide base | 1 | |
| B-39 | M015MAB2014ZZ0 | Nut key | 4 | |
| B-40 | M015MAB2033ZZ0 | Cover | 1 | |
| B-41 | M015MAB2015ZZ0 | Motor plate | 1 | |
| B-42 | M015MAB2016ZZ0 | Motor plate | 1 | |
| B-43 | PRESSF5BPB0288 | Reducer | 2 | |
| B-44 | PMTBMSMD022P1S | Servo motor | 2 | |
| B-45 | M030SBA2040ZZ0 | Pulley | 2 | |
| B-46 | PPLMMA12268888 | Power lock | 2 | |
| B-47 | M035HAA2026ZZ0 | Shaft | 3 | |
| B-48 | PBRA6000ZZ8888 | Bearing | 3 | |
| B-49 | M015MAB2004MC0 | Horizontal motor Bracket | 1 | |
| B-50 | M015MAB2007ZZ0 | Idle shaft | 2 | |
| B-51 | M015MAB2010MC0 | Idle roller | 2 | |
| B-52 | M015MAB2008ZZ0 | Collar | 2 | |
| B-53 | PBRA6004ZZ8888 | Bearing | 4 | |
| B-54 | PRGH042H888888 | Snap ring | 2 | |
| B-55 | M015MAB2028MC0 | Block | 2 | |
| B-56 | PRESSFS9DPB088 | Reducer | 1 | |
| B-57 | PMTBMSMD082P1S | Servo motor | 1 | |
| B-58 | M015MAB2006ZZ0 | Timing pulley | 1 | |
| B-59 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-60 | PPLMMA24428888 | Power lock | 1 |
