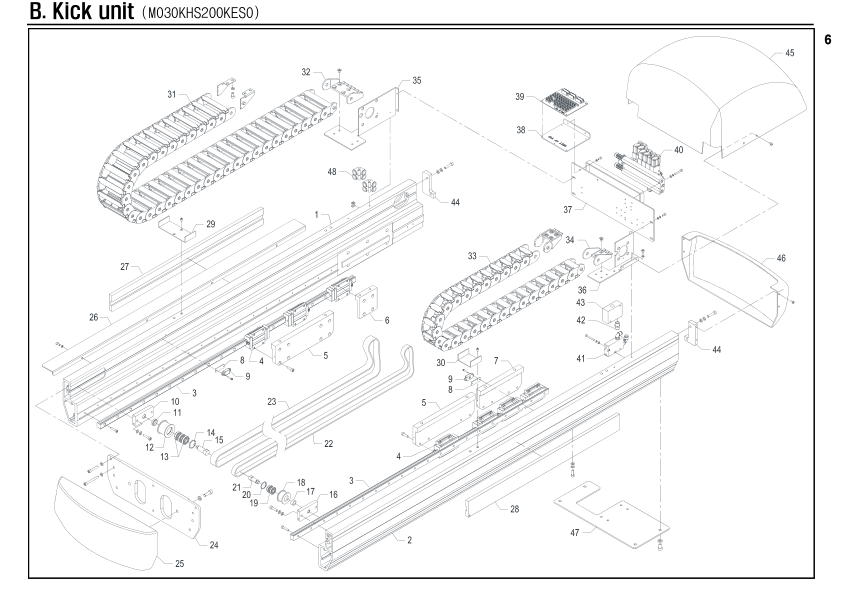

Kick unit
Unit Number: M030KHS200KES0
Robot: NEXIA-V-300DYSA 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M030KHS2001MC3 | File | 1 | |
| B-2 | M030SBB2002MC0 | File | 1 | |
| B-3 | PLMRSHS201180L | LM rail | 2 | |
| B-4 | PLMBSHS20CKZ18 | LM block | 7 | |
| B-5 | M030SBB2055ZZ0 | Plate | 2 | |
| B-6 | M030SBB2056ZZ0 | Plate | 1 | |
| B-7 | M030SBB2057ZZ0 | Plate | 1 | |
| B-8 | M015MAB2035MC0 | Nut key | 2 | |
| B-9 | PSSMRS52SHC888 | Magnet | 2 | |
| B-10 | M035HAA2018ZZ0 | Tension block | 1 | |
| B-11 | M035HAA2035ZZ0 | Collar | 3 | |
| B-12 | M035HAA2019ZZ0 | Idle roller | 3 | |
| B-13 | PBRA6902ZZ8888 | Bearing | 9 | |
| B-14 | PRGH028H888888 | Snap ring | 3 | |
| B-15 | M035HAA2034ZZ0 | Shaft | 3 | |
| B-16 | M035HAA2045ZZ0 | Tention block | 1 | |
| B-17 | M030SBB2044ZZ0 | Collar | 3 | |
| B-18 | M030SBB2046ZZ0 | Roller | 1 | |
| B-19 | PBRA6901ZZ8888 | Bearing | 6 | |
| B-20 | PRGH024H888888 | Snap ring | 3 | |
| B-21 | M030SBB2042ZZ0 | Shaft | 3 | |
| B-22 | PBLTU5M1588888 | Timing belt | 2910 | |
| B-23 | PBLTU5M2588888 | Timing belt | 2850 | |
| B-24 | M035HAA2020ZZ0 | Cover | 1 | |
| B-25 | M035HAA2021PW0 | Cover | 1 | |
| B-26 | M030KHS2025ZZ3 | Cableveyor plate | 1 | |
| B-27 | M030SBB2058ZZ0 | File bracket | 1 | |
| B-28 | M030SBB2059ZZ0 | File bracket | 1 | |
| B-29 | M030KHS2036MC3 | Bracket | 1 | |
| B-30 | M015MAB2037MC0 | Bracket | 1 | |
| B-31 | PCVH4504B09588 | Cableveyor link | 35 | |
| B-32 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| B-33 | PCVH4501B07588 | Cableveyor link | 27 | |
| B-34 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| B-35 | M030KHS2024ZZ3 | Base | 1 | |
| B-36 | M040HFA2023ZZ0 | Base | 1 | |
| B-37 | M040HFA2029ZZ0 | Base | 1 | |
| B-38 | M040FFA2038ZZ0 | Plate | 1 | |
| B-39 | PBDCIFVECT8888 | Board | 1 | |
| B-40 | M020KFA2100000 | Solenoid valve unit | 1 | |
| B-41 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-42 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-43 | PAXVAF05888888 | Air filter | 1 | |
| B-44 | M040HFA2047ZZ0 | Cover block | 2 | |
| B-45 | M040HFA2027MD0 | Cover | 1 | |
| B-46 | M040HFA2046MD0 | Cover | 1 | |
| B-47 | M030KHS2022ZZ3 | Cableveyor plate | 1 | |
| B-48 | PAXFAUL1288888 | Fitting | 4 | |
| B-49 | M030SBB2003MC0 | Slide base | 1 | |
| B-50 | M035HAA2014ZZ0 | Nut key | 4 | |
| B-51 | M040HFA2033ZZ0 | Cover | 1 | |
| B-52 | M035HAA2015ZZ0 | Motor plate | 1 | |
| B-53 | PRESSFS9CPB048 | Reducer | 1 | |
| B-54 | PMTBMSMD042G1S | Servo motor | 1 | |
| B-55 | M030SBA2044ZZ0 | Pulley | 1 | |
| B-56 | PPLMMA19338888 | Power lock | 1 | |
| B-57 | M035HAA2016ZZ0 | Motor plate | 1 | |
| B-58 | PRESSF5BPB0288 | Reducer | 1 | |
| B-59 | PMTBMSMD022G1S | Servo motor | 1 | |
| B-60 | M030SBB2060ZZ0 | Pulley | 1 | |
| B-61 | PPLMMA12268888 | Power lock | 1 | |
| B-62 | M030SBA2046ZZ0 | Roller | 2 | |
| B-63 | M040HFA2004MC0 | Horizontal motor Bracket | 1 | |
| B-64 | M035HAA2005ZZ0 | Block | 2 | |
| B-65 | PRESSFS9DPB088 | Reducer | 1 | |
| B-66 | PMTBMSMD082G1S | Servo motor | 1 | |
| B-67 | M030SBB2006ZZ0 | Timing pulley | 1 | |
| B-68 | PPLMMA24428888 | Power lock | 1 | |
| B-69 | PBRA6911ZZ8888 | Bearing | 1 | |
| B-70 | M040HFA2007ZZ0 | Idle shaft | 2 | |
| B-71 | PRGH042H888888 | Snap ring | 2 | |
| B-72 | PBRA6004ZZ8888 | Bearing | 6 | |
| B-73 | M035HAA2010ZZ0 | Idle roller | 2 | |
| B-74 | M035HAA2008ZZ0 | Collar | 2 | |
| B-75 | M040HFA2028MC0 | Block | 2 |
