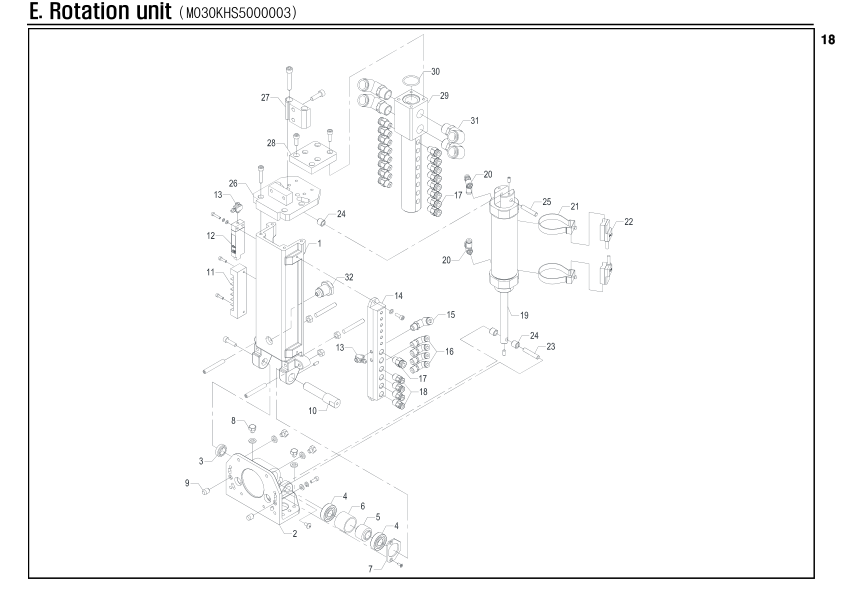

Rotation unit

Unit Number: M030KHS5000003

Robot: NEXIA-V-300DYSA 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	M030KHS5002PW0	Block	1
E-2	M040HFB5003ZZ0	Rot plate	1
E-3	M040HFA5006ZZ0	Collar	1
E-4	PBRA6001ZZ8888	Bearing	2
E-5	M035HAA5004ZZ0	Collar	1
E-6	M035HAA5006ZZ0	Collar	1
E-7	M035HAA5008ZZ0	Plate	1
E-8	PMXSTEHN108888	Bolt	4
E-9	M035HAA5012ZZ0	Pin	2
E-10	M035HAA5003ZZ0	Pin	1
E-11	PTLA07P8888888	Terminal	1
E-12	PAXVPS6102VNAM	Sensor	1
E-13	PAXFBUVLM56888	Nipple	2
E-14	M040HFA5004ZZ1	Air block	1
E-15	PAXFEL06180888	Fitting	1
E-16	PAXFEL04180888	Fitting	4
E-17	PAXFEC06180888	Fitting	17
E-18	PAXFEL12380888	Fitting	4
E-19	PAXA3548400888	Cylinder	1
E-20	PAXFESC04M5888	Speed controller	2
E-21	PSSOROSWBAND88	Sensor band	2
E-22	PSSOROSW888888	Sensor	2
E-23	PMXPSFJ6328888	Shaft	1
E-24	PBRNFJ69ZZ8888	Roller bearing	3
E-25	M035HAA5009MC0	Pin	1
E-26	M030KHS5016ZZ0	Block	1
E-27	M040HFA5005ZZ0	Block	1
E-28	M030KHS5018ZZ0	Plate	1
E-29	M030KHS5017ZZ0	Block	1
E-30	PPAS0248888888	O-ring	1
E-31	PAXFEC04188888	Fitting	4
E-32	PSARBQC1604888	Shock absorber	1
