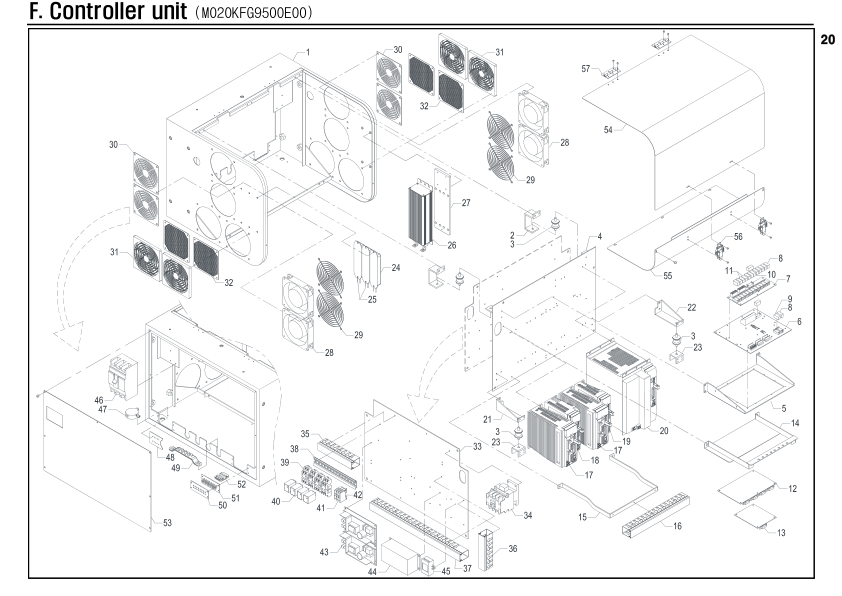

Controller unit

Unit Number: M020KFG9500E00

Robot: NEXIA-V-300DYSA 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
F-1	M030KHS9002ZZ0	Body	1
F-2	M020HFA9004ZZ0	Controller bracket	2
F-3	PMXK25M6888888	Antivibration gels	4
F-4	M030KHS9003ZZ0	Plate	1
F-5	MN20KFA9004ZZ0	Plate	1
F-6	PBDDSC88888888	Board	1
F-7	PBDDIL88888888	Board	1
F-8	PRL1174PFDUS242	Relay	12
F-9	PRL2114PUS2488	Relay	1
F-10	PRL2014PUS2488	Relay	1
F-11	PRL2214PUS2488	Relay	2
F-12	PBDDMOTION8888	Board	1
F-13	PBDDVECT1X8888	Board	1
F-14	MN20KFA9028ZZ1	Plate	1
F-15	M030SBA9009ZZ0	Controller bracket	1
F-16	M030SBA9026MC0	Duct-30	1
F-17	PMTXMCDHT35208	Servo drive	2
F-18	PMTXMBDHT25108	Servo drive	1
F-19	PMTXMADHT15078	Servo drive	1
F-20	PMTXMFDHTB3A28	Servo drive	1
F-21	M020KFE9005ZZ0	Controller bracket	1
F-22	M020KFE9006ZZ0	Controller bracket	1
F-23	M020HFA9007ZZ0	Controller bracket	2
F-24	PEXRS017W50K88	Regenerative resistor	1
F-25	PEXRS040W30K88	Regenerative resistor	2
F-26	PEXRMCRA500888	Regenerative resistor	1
F-27	M020KKA9033ZZ0	Plate	1
F-28	PEXFSJ1238HA28	Fan	4
F-29	PEXFS105105888	Fan cover	4
F-30	PEXFSJ12COVER8	Fan cover	4
F-31	PEXFFILTER102F	Fan filter	4
F-32	PEXFFILTER120S	Fan filter	4
F-33	M030SBG9010ZZ0	Plate	1
F-34	PNSEGMC3288888	Contactor	1
F-35	MN20KFA9029MC0	Duct-30	1
F-36	MN20KFA9027MC0	Duct-30	1
F-37	M030SBA9025MC0	Duct-30	1
F-38	M020KFA9020MC0	Terminal channel	1
F-39	PRLKLY28888888	Relay socket	4
F-40	PRLALY2N1DC248	Relay	4
F-41	PTLD0600015288	Terminal	3
F-42	PTLD0600015888	Separator	1
F-43	PSMASMPS000188	SMPS	2
F-44	PFTEWYFT30T1A8	Noise filter	1
F-45	PFTEWYFS03TM88	Noise filter	1
F-46	PNSCABS33B3088	Circuit breaker	1
F-47	ES55TW4610060E	Buzzer cable	1
F-48	M020HFA9032ZZ0	Cover	1
F-49	PEXELEBAR14588	Earth Bar	1
F-50	M020HFA9023MC0	Plate	1
F-51	PBDCLEDVECT888	Board	1
F-52	E020PFA8040060	Cable	1
F-53	M030SBA9012ZZ0	Cover	1
F-54	M030SBB9013ZZ0	Cover	1
F-55	M030SBB9014ZZ0	Cover	1
F-56	PMXBY117888888	Hook	2
F-57	PMXBYHS1560888	Hinge	2
