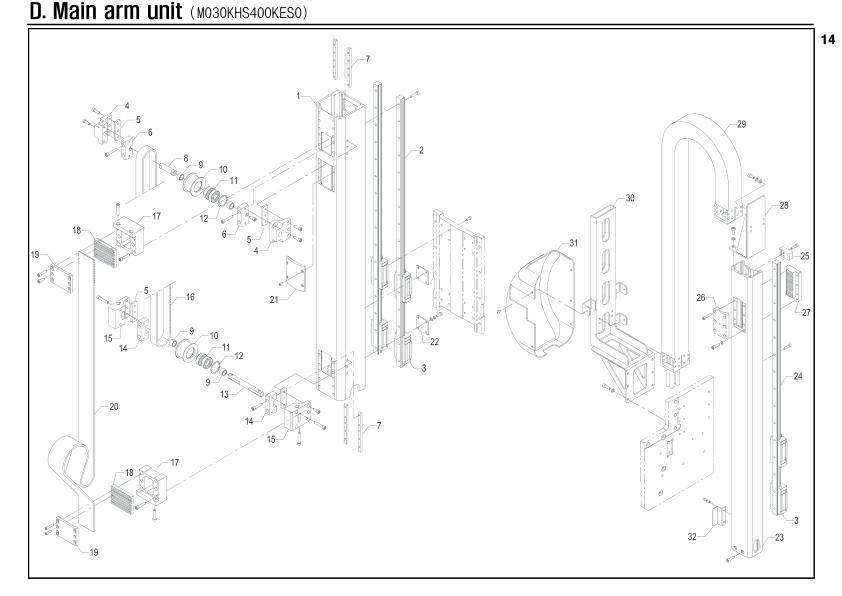

Main arm unit

Unit Number: M030KHS400KES0

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
D-1	M030KHS4006MC3	File	1
D-2	PLMRSHS200940L	LM rail	2
D-3	PLMBSHS20VKZ18	LM block	6
D-4	M030SBB4058ZZ0	Block	2
D-5	M035HAA4022ZZ0	Plate	4
D-6	M030SBB4050ZZ0	Holder	2
D-7	M030SBB4023ZZ0	Nut	4
D-8	M030SBB4012ZZ0	Shaft	1
D-9	M030SBB4018ZZ0	Collar	4
D-10	M030SBB4021ZZ0	Roller	2
D-11	PBRA6202ZZ8888	Bearing	4
D-12	PRGH035H888888	Snap ring	2
D-13	M030SBB4008ZZ0	Shaft	1
D-14	M030SBB4051ZZ0	Holder	2
D-15	M030SBB4057ZZ0	Block	2
D-16	PBLTU8M2588888	Timing belt	1712
D-17	M030SBB4044ZZ0	Block	2
D-18	M030SBB4033MC0	Belt gripper	2
D-19	M030SBB4016ZZ0	Gripper block	2
D-20	PBLTU8M6088888	Timing belt	1416
D-21	M080QLS4048MC0	Gripper block	1
D-22	M030SBB4059ZZ0	Plate	2
D-23	M030KHS4007MC3	File	1
D-24	PLMRSHS200880L	LM rail	1
D-25	M030KHS4061ZZ0	Block	1
D-26	M080QLS4017ZZ0	Gripper block	1
D-27	M080QLS4014MC0	Belt gripper	1
D-28	M040YFS4060ZZ0	Bracket	1
D-29	PCVH3503510031	Cableveyor	1
D-30	M030KHS4045ZZ0	Cableveyor bracket	1
D-31	M030KHS4039MD0	Cover	1
D-32	M030SBB4040ZZ0	Plate	1
D-33	M030SBB4002ZZ0	Plate	1
D-34	M080QLS4003ZZ0	Plate	1
D-35	M030KHS4001ZZ0	Plate	1
D-36	M030SBB4004MC0	Belt gripper	1
D-37	M030SBB4042ZZ0	Gripper block	1
D-38	M030SBC4009ZZ0	Shaft	2
D-39	PRGS020S888888	Snap ring	4
D-40	M030SBC4011ZZ0	Roller	2
D-41	PBRA6904ZZ8888	Bearing	10
D-42	PRGH037H888888	Snap ring	2
D-43	M030SBB4009ZZ0	Shaft	1
D-44	PSSRHYP18S5NAF	Sensor	1
D-45	M030SBB4013ZZ0	Housing	1
D-46	PBRA6913ZZ8888	Bearing	1
D-47	PPLMMA32508888	Power lock	1
D-48	M030SBB4045ZZ0	Timing pulley	1
D-49	PRESSF5EPD4088	Reducer	1
D-50	PMTBMSME402GCH	Servo motor	1
D-51	M080QLS4032ZZ0	Belt gripper	1
D-52	M035HAA4031MC0	Belt gripper	1
D-53	PSSMRS52SH8888	Magnet sensor	1
D-54	M080QLS4040ZZ0	Bracket	1
D-55	M030SBB4053ZZ0	Bolt	1
D-56	M030KHS4037ZZ3	Bracket	1
D-57	M030SBB4005ZZ0	Plate	1
D-58	M030SBB4056ZZ0	Plate	1
D-59	M030SBB4052ZZ0	Bracket	4
D-60	M030SBB4055ZZ0	Plate	1
D-61	M030SBB4042MD0	Cover	1
D-50		Servo motor	1
