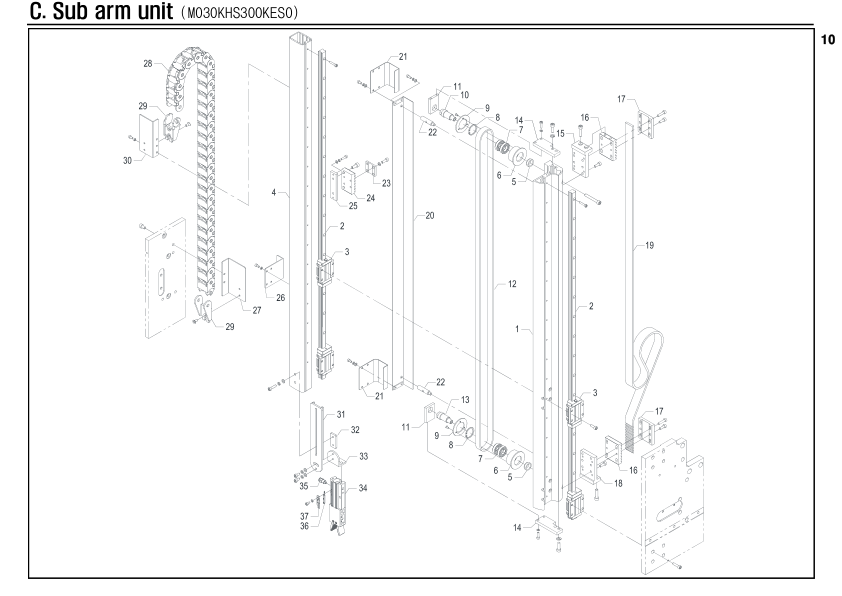

Sub arm unit

Unit Number: M030KHS300KES0

Robot: NEXIA-V-300DYSA 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M030SBA3006MC0	File	1
C-2	PLMRSHS151000L	LM rail	2
C-3	PLMBSHS15CKZ18	LM block	4
C-4	M030KHS3007MC0	File	1
C-5	M020KFC3018ZZ0	Collar	2
C-6	M030SBB3021ZZ0	Roller	2
C-7	PBRA6902ZZ8888	Bearing	4
C-8	PRGH028H888888	Snap ring	2
C-9	M030SBB3015ZZ0	Timing pulley	2
C-10	M030SBB3020ZZ0	Shaft	1
C-11	M030SBA3011ZZ0	Plate	2
C-12	PBLTU5M1502010	Timing belt	2010
C-13	M030SBB3019ZZ0	Shaft	1
C-14	M030SBB3010ZZ0	Plate	2
C-15	M030SBA3044ZZ0	Plate	1
C-16	M030SBA3030MC0	Gripper	2
C-17	M030SBA3016ZZ0	Gripper block	2
C-18	M030SBA3045ZZ0	Plate	1
C-19	PBLTU8M2501400	Timing belt	1400
C-20	M030SBA3051ZZ0	Belt cover	1
C-21	M020KFC3038ZZ0	Belt cover	2
C-22	M020KFC3025ZZ0	Shaft	2
C-23	M020KFC3017ZZ0	Gripper block	1
C-24	M020KFC3014MC0	Belt gripper	1
C-25	M020KFC4010ZZ0	Gripper nut	1
C-26	M020KFC4039ZZ0	Bracket	1
C-27	M020KFC3022ZZ0	Bracket	1
C-28	PCVH3202B05029	Cableveyor link	29
C-29	PCVE3202300088	Cableveyor end bracket	1
C-30	M020KFC3023ZZ0	Bracket	1
C-31	M015MAA3902MF2	Gripper bracket	1
C-32	M015MAA3903MF0	Gripper bracket nut	1
C-33	MS55AT34005ZC0	Gripper bracket B	1
C-34	PAXAHYCITYPE88	Hy air chuck(I-type)	1
C-35	PAXFEC04M58888	Fitting	1
C-36	PSSMSHYCDA9388	Auto switch	1
C-37	MS55AT44302ZZ0	Sensor bracket	1
C-38	M030SBB3001ZZ0	Plate	1
C-39	M030SBB3013ZZ0	Plate	1
C-40	PRESSF5CPB0888	Reducer	1
C-41	PMTBMSMD082G1T	Servo motor	1
C-42	M030SBA3012ZZ0	Timing pulley	1
C-43	PPLMMA19338888	Power lock	1
C-44	M020KFC4024ZZ0	Bracket	1
C-45	M030SBB3033ZZ0	Plate	1
C-46	M030SBB3032ZZ0	Bracket	1
C-47	M030SBB3031MC0	Belt gripper	1
C-48	M030SBB3040ZZ0	Bracket	1
C-49	PSSMRS1SH88888	Sensor	1
C-50	M020KFC3046ZZ0	Cableveyor fixed bracket	1
C-51	M030SBB3034ZZ0	Bracket	1
C-52	M015MAB3047MD0	Cover	1
C-53	M030SBA3009ZZ0	Shaft	3
C-54	PRGS015S888888	Snap ring	4
C-55	M020KFC4011ZZ0	Roller	2
C-56	PRGH035H888888	Snap ring	2
C-57	PBRA6202ZZ8888	Bearing	4
C-58	M030SBA3004MC0	Belt gripper	1
C-59	M020KFC3042ZZ0	Gripper block	1
C-60	PSSRHYP18S5NAF	Sensor	1
C-61	M030SBA3003ZZ0	Plate	1
C-62	M030SBB3005ZZ0	Plate A	1
C-63	M030SBA3021ZZ0	Cover	1
C-64	M030SBA3047ZZ0	Cover	1
