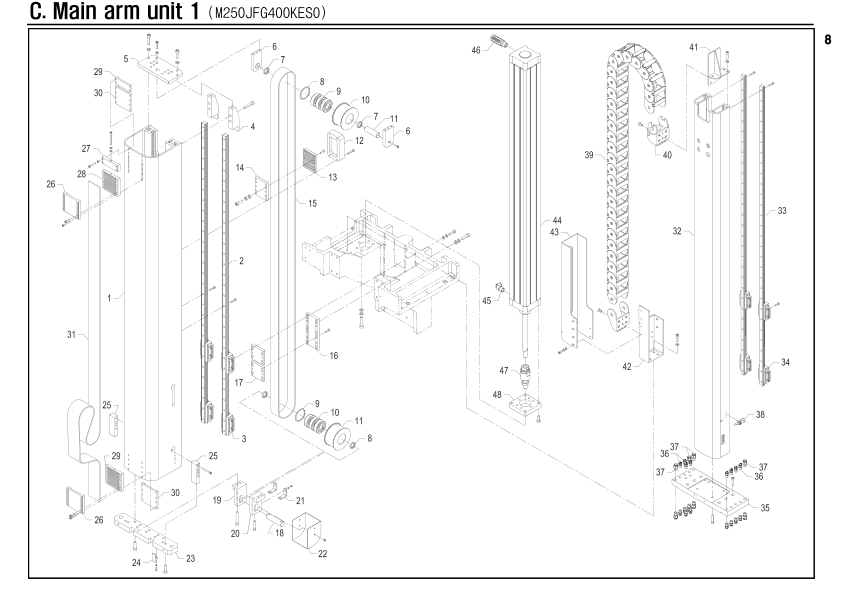

Main arm unit

Unit Number: M250JFG400KES0

Robot: NEXIA-2500S 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M250GFG4002MC0	File	1
C-2	PLMRSHS251720L	LM rail	2
C-3	PLMBSHS25CKZ18	LM block	4
C-4	M200HFA4031ZZ0	Block	2
C-5	M200HFA4004ZZ0	Plate	1
C-6	M200HFA4005ZZ0	Pulley block	2
C-7	M200HFA4039ZZ0	Collar	4
C-8	PRGH062H888888	Snap ring	5
C-9	PBRA6305ZZ8888	Bearing	18
C-10	M200HFA4007ZZ0	Idle roller	2
C-11	M200HFA4006ZZ0	Roller shaft	1
C-12	M200HFA4048MC0	Block	1
C-13	M200HFA4014MC0	Belt gripper	1
C-14	M200HFA4013ZZ0	Belt gripper	1
C-15	PBLTA105008888	Timing belt	4090
C-16	M130MAA4012ZZ0	Belt gripper	1
C-17	M130MAA4014MC0	Belt Gripper	2
C-18	M200HFA4040ZZ0	Roller shaft	1
C-19	M200HFA4010ZZ0	Block	1
C-20	M200HFA4011ZZ0	Block	1
C-21	M130HFA4065ZZ0	Bracket	2
C-22	M200HFA4034ZZ0	Cover	1
C-23	M200HFA4008ZZ1	Plate	1
C-24	M130HFA4040ZZ0	Plate	1
C-25	M250JFS4027ZZ0	Block	2
C-26	M200HFA4021ZZ0	Belt gripper	2
C-27	M200HFA4024ZZ0	Block	1
C-28	M200HFA4020MC0	Belt gripper	2
C-29	M200HFA4023ZZ0	Plate	1
C-30	M200HFA4022ZZ0	Plate	2
C-31	PBLTA107508888	Timing belt	2470
C-32	M250GFA4003MC0	File	1
C-33	PLMRSHS201720L	LM rail	2
C-34	PLMBSHS20CKZ18	LM block	4
C-35	M200HFA4052ZZ0	Plate	1
C-36	PAXFEC08140888	Fitting	16
C-37	PAXFEC10140888	Fitting	8
C-38	PSSRHYP18S5NAF	Sensor	1
C-39	PCVH6251B12588	Cableveyor link	29
C-40	PCVE6251300088	Cableveyor end bracket	1
C-41	M200HFA4029ZZ0	Bracket	1
C-42	M200HFA4028ZZ0	Cableveyor bracket	1
C-43	M200HFA4046ZZ0	Plate	1
C-44	PAXADNC1001300	Cylinder	1
C-45	PAXFEL12120888	Fitting	1
C-46	PAXZSILENCER12	Silincer	1
C-47	PAXFKM20X15888	Floating joing	1
C-48	M200HFA4032ZZ0	Block	1
C-49	M200HFA4001MC0	Base	1
C-50	M200HFA4015ZZ0	Block	1
C-51	M200HFA4016ZZ0	Block	1
C-52	M200HFA4017MC0	Motor block	1
C-53	PBRA6916ZZ8888	Bearing	1
C-54	PPLMDR132A3260	Power lock	1
C-55	M200HFA4018ZZ0	Timing pulley	1
C-56	PRESSF15EPD208	Reducer	1
C-57	PMTBMSME152GCH	Servo motor	1
C-58	M130MAA4030ZZ0	Guide shaft	1
C-59	PBRA6000ZZ8888	Bearing	1
C-60	PRGS010S888888	Snap ring	1
C-61	M200HFA4041ZZ0	Shaft	3
C-62	M200HFA4044ZZ0	Roller	3
C-63	M200HFA4042ZZ0	Collar	3
C-64	M200HFA4036ZZ0	Cover	1
C-65	M200HFA4030ZZ0	Block	1
C-66	PAXAIDFW32AS25	Cylinder	1
C-67	M200HFA4045ZZ0	Joint	1
C-68	PAXFEL06180888	Fitting	2
C-69	M250HFA4038ZZ0	Cover	1
C-70	PAXFPMM0888888	Fitting	15
C-71	M200HFA4027ZZ0	Cableveyor bracket	1
C-72	M200HFA4053ZZ0	Block	1
C-73	M200HFA4035ZZ0	Cover	1
C-74	M200HFA4037ZZ0	Cover	1
C-75	M200HFA4025ZZ0	Cover	1
