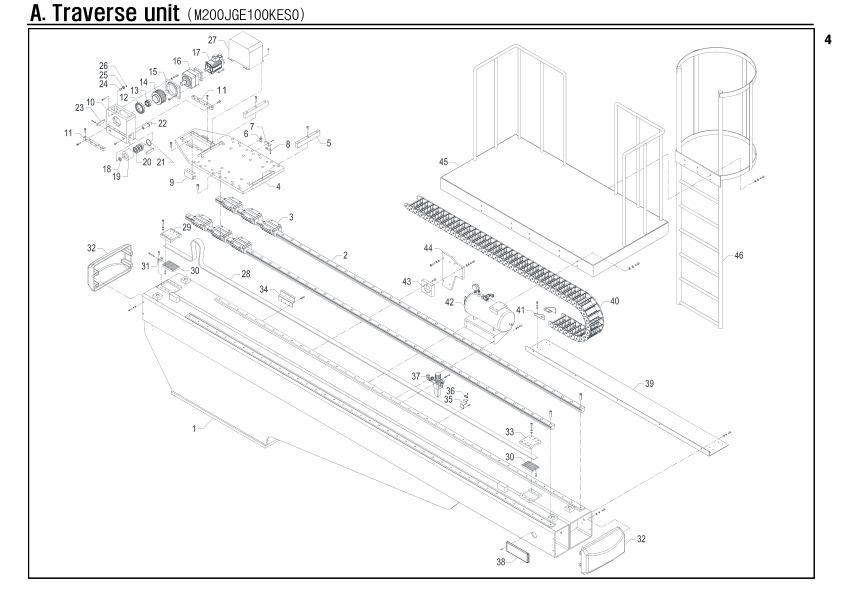

Traverse unit
Unit Number: M200JGE100KES0
Robot: NEXIA-2500S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M200GGA1001PW0 | Body | 1 | |
| A-2 | PLMRSHS554860L | LM rail | 2 | |
| A-3 | PLMBSHS55CKZ18 | LM block | 6 | |
| A-4 | M200HFA1003ZZ0 | Slide base | 1 | |
| A-5 | M200HFA2018ZZ0 | Guide block | 2 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M200HFA1018MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M200HFA1008ZZ0 | Stopper | 1 | |
| A-10 | M200HFA1006MC0 | Motor block | 1 | |
| A-11 | M200HFA1013ZZ0 | Block | 2 | |
| A-12 | PBRA6916ZZ8888 | Bearing | 1 | |
| A-13 | PPLMDR132A3260 | Power lock | 1 | |
| A-14 | M200HFA1009ZZ0 | Timing pulley | 1 | |
| A-15 | M200HFA1017ZZ0 | Collar | 1 | |
| A-16 | PRESSF15EPD158 | Reducer | 1 | |
| A-17 | PMTBMSME152GCG | Servo motor | 1 | |
| A-18 | M200HFA1014ZZ0 | Collar | 2 | |
| A-19 | M200HFA1016ZZ0 | Roller | 2 | |
| A-20 | PBRA6305ZZ8888 | Bearing | 6 | |
| A-21 | PRGH062H888888 | Snap ring | 2 | |
| A-22 | M200HFA1015ZZ0 | Idle shaft | 2 | |
| A-23 | M130HFA2031MC0 | Block | 2 | |
| A-24 | M130MAA4030ZZ0 | Guide shaft | 1 | |
| A-25 | PBRA6000ZZ8888 | Bearing | 1 | |
| A-26 | PRGS010S888888 | Snap ring | 1 | |
| A-27 | M200HFA1020ZZ0 | Cover | 1 | |
| A-28 | PBLTA205008888 | Timing belt | 5400 | |
| A-29 | M200HFA1004ZZ0 | Gripper block | 1 | |
| A-30 | M200HFA1002MC0 | Gripper | 2 | |
| A-31 | M200HFA1019ZZ0 | Tension block | 1 | |
| A-32 | M200HFA1011PW0 | Cover | 2 | |
| A-33 | M200HFA1005ZZ0 | Bracket | 1 | |
| A-34 | M200HFA1021ZZ0 | Bracket | 1 | |
| A-35 | M200HFA1022MC0 | Bracket | 1 | |
| A-36 | PSSMRS52SHC888 | Magnet | 1 | |
| A-37 | PAXSTAW4000AS3 | Filter regulator | 1 | |
| A-38 | MXAKAAB1000000 | Counter | 1 | |
| A-39 | M200GGA1007ZZ0 | Cableveyor plate | 1 | |
| A-40 | PCVH070NB15088 | Cableveyor link | 45 | |
| A-41 | PCVE070NB15088 | Cableveyor end bracket | 1 | |
| A-42 | M250EJE1100000 | Air tank | 1 | |
| A-43 | M130HFA1013PW0 | Spacer | 1 | |
| A-44 | M020HFA1021PW0 | Plate | 1 | |
| A-45 | M250JJE1025PW0 | Guide rail | 1 | |
| A-46 | M200JJE1012PW0 | Ladder | 1 |
