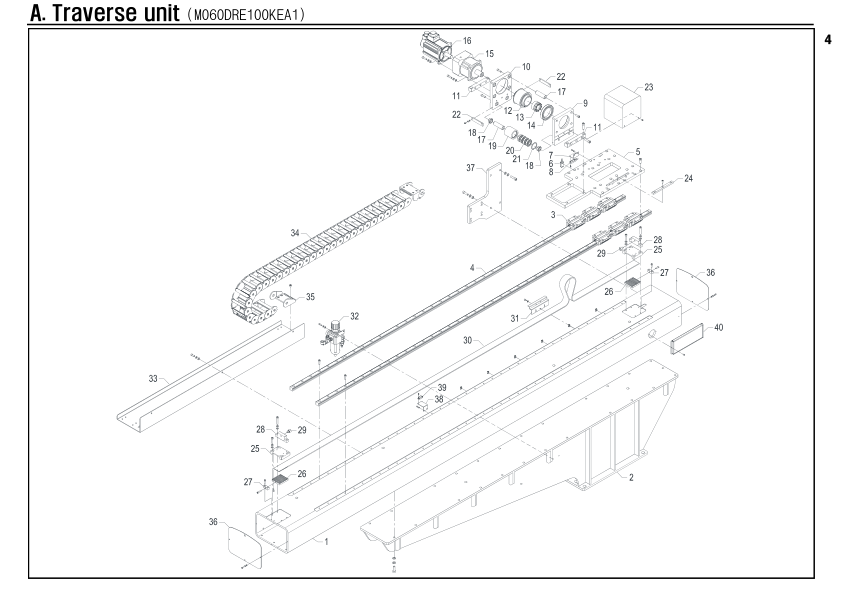

Traverse unit
Unit Number: M060DRE100KEA1
Robot: NEXIA-V-600SYSA 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M060DRE1001PWXA | Frame | 1 | |
| A-2 | M060DRE1002PW0 | Body | 1 | |
| A-3 | PLMBSHS30CKZ18 | LM block | 6 | |
| A-4 | PLMRSHS303080L | LM block | 2 | |
| A-5 | M060DRE1012ZZ0 | LM Base | 1 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M060HFA1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M060DRE2004ZZ0 | Plate | 1 | |
| A-10 | M060DRE2005ZZ0 | Plate | 1 | |
| A-11 | M060DRE2003ZZ0 | Block | 2 | |
| A-12 | M060DRE2006ZZ0 | Timing pulley | 1 | |
| A-13 | PPLMDR132A3260 | Power lock | 1 | |
| A-14 | PBRA6915ZZ8888 | Bearing | 1 | |
| A-15 | PRESAB15052PD30 | Reducer | 1 | |
| A-16 | PMTBMSME302GCG | Servo motor | 1 | |
| A-17 | M060DRE2007ZZ0 | Shaft | 6 | |
| A-18 | M060DRE2008ZZ0 | Bracket | 4 | |
| A-19 | M060DRE2010ZZ0 | Roller | 2 | |
| A-20 | PBRA6005ZZ8888 | Bearing | 8 | |
| A-21 | PRGH047H888888 | Snap ring | 2 | |
| A-22 | M080HFA2028MC0 | Block | 2 | |
| A-23 | M060DRE1005ZZ0 | Cover | 1 | |
| A-24 | M055MAA1013ZB0 | Key | 1 | |
| A-25 | M060DRE1004ZZ0 | Gripper block | 2 | |
| A-26 | M060DRE1002MC0 | Gripper | 2 | |
| A-27 | M055MAA1004NI0 | Tension block | 2 | |
| A-28 | M060DRE1016ZZ0 | Stopper | 2 | |
| A-29 | PMXUNAH8158888 | Stopper bolt | 2 | |
| A-30 | PBLTU8M5088888 | Timing belt | 3752 | |
| A-31 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-32 | PAXSTAW4000AS7 | Filter regulator | 1 | |
| A-33 | M060DRE1010ZZXA | Cableveyor plate | 1 | |
| A-34 | PCVH6252B12588 | Cableveyor link | 30 | |
| A-35 | PCVE6252300088 | Cableveyor end bracket | 1 | |
| A-36 | M060DRE1030ZZ0 | Cover | 2 | |
| A-37 | MN20TEA1021PW0 | Plate | 1 | |
| A-38 | M040HFA1018MC0 | Bracket | 1 | |
| A-39 | PSSMRS52SHC888 | Magnet | 1 | |
| A-40 | MXAKAAB1000000 | Counter | 1 |
