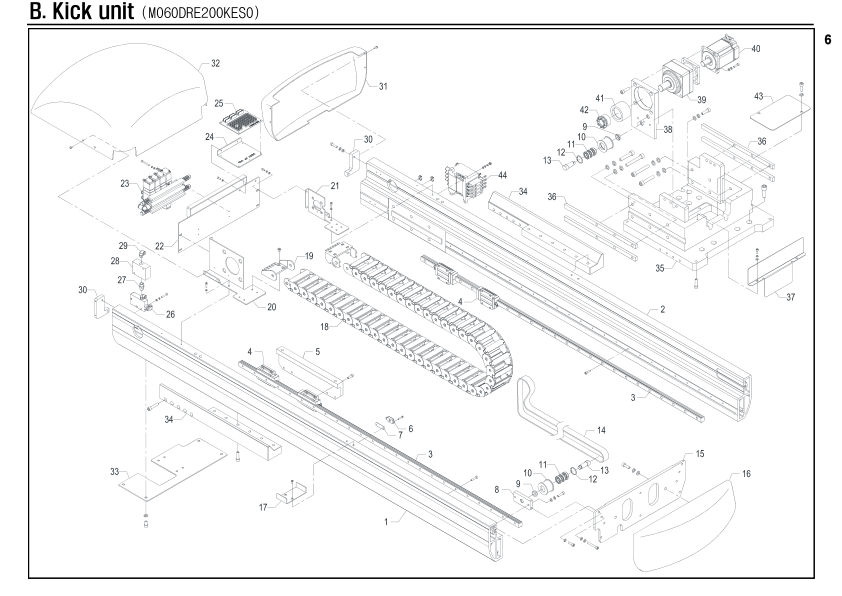

Kick unit
Unit Number: M060DRE200KES0
Robot: NEXIA-V-600SYSA 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M060DRE2001MC0 | File | 1 | |
| B-2 | M060DRE2002MC0 | File | 1 | |
| B-3 | PLMRSHS201420L | LM rail | 2 | |
| B-4 | PLMBSHS20CKZ18 | LM block | 4 | |
| B-5 | M060HFA2048ZZ0 | Plate A | 1 | |
| B-6 | PSSMRS52SHC888 | Magnet | 1 | |
| B-7 | M015MAB2035MC0 | Nut key | 1 | |
| B-8 | M035HAA2018ZZ0 | Tension block | 1 | |
| B-9 | M035HAA2035ZZ0 | Collar | 3 | |
| B-10 | M035HAA2019ZZ0 | Idle roller | 3 | |
| B-11 | PBRA6902ZZ8888 | Bearing | 9 | |
| B-12 | PRGH028H888888 | Snap ring | 3 | |
| B-13 | M035HAA2034ZZ0 | Shaft | 3 | |
| B-14 | PBLTU5M2588888 | Timing belt | 3450 | |
| B-15 | M060HFA2020ZZ0 | Pull out cover | 1 | |
| B-16 | M060HFA2021PW0 | Cover | 1 | |
| B-17 | M060DRE2036MC0 | Bracket | 1 | |
| B-18 | PCVH4503309588 | Cableveyor link | 42 | |
| B-19 | PCVE4503300088 | Cableveyor end bracket | 1 | |
| B-20 | M060DRE2024ZZ0 | Solenoid valve boxbase B | 1 | |
| B-21 | M040HFA2023ZZ0 | Base | 1 | |
| B-22 | M060DRE2029ZZ0 | Solenoid valve boxbase C | 1 | |
| B-23 | M060DRE2100000 | Solenoid valve unit | 1 | |
| B-24 | M040FFA2038ZZ0 | Plate | 1 | |
| B-25 | PBDCIFVECT8888 | Board | 1 | |
| B-26 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-27 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-28 | PAXVAF05888888 | Air filter | 1 | |
| B-29 | PAXFEL06140888 | Fitting | 1 | |
| B-30 | M060HFA2047ZZ0 | Cover block | 2 | |
| B-31 | M060HFA2046MD0 | Cover | 1 | |
| B-32 | M060HFA2027MD0 | Solbox cover | 1 | |
| B-33 | M060HFA2022ZZXA | Cableveyor plate | 1 | |
| B-34 | M060DRE2047ZZ0 | Bracket | 2 | |
| B-35 | M060DRE2003MC0 | Slide base | 1 | |
| B-36 | M035HAA2014ZZ0 | Nut key | 4 | |
| B-37 | M040HFA2033ZZ0 | Cover | 1 | |
| B-38 | M060DRE2015ZZ0 | Motor plate | 1 | |
| B-39 | PRESSFS9DPB088 | Reducer | 1 | |
| B-40 | PMTBMSMD082G1S | Servo motor | 1 | |
| B-41 | M060DRE2017ZZ0 | Pulley | 1 | |
| B-42 | PPLMMA24428888 | Power lock | 1 | |
| B-43 | M040HFA2050ZZ0 | Cover | 1 | |
| B-44 | PAXVZK2F12RE04 | Vacuum unit | 1 |
