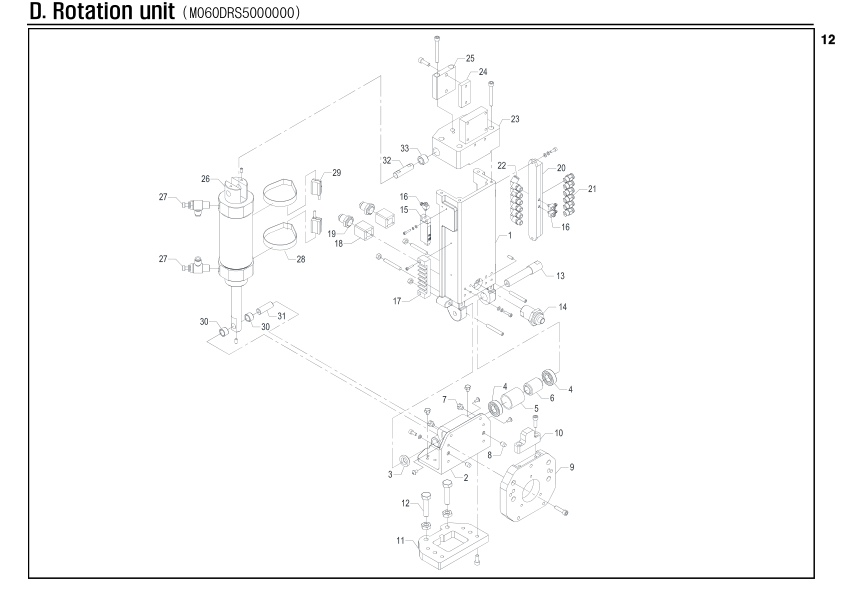

Rotation unit
Unit Number: M060DRS5000000
Robot: NEXIA-V-600SYSA 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M060DRS5002PW0 | Body | 1 | |
| D-2 | M060HFA5003ZZXA | Plate | 1 | |
| D-3 | M060HFA5006ZZ0 | Collar | 1 | |
| D-4 | PBRA6002ZZ8888 | Bearing | 2 | |
| D-5 | M060HFA5010ZZ0 | Collar | 1 | |
| D-6 | M060HFA5011ZZ0 | Collar | 1 | |
| D-7 | PMXSTEHN108888 | Bolt | 4 | |
| D-8 | M035HAA5012ZZ0 | Pin | 2 | |
| D-9 | M060DRS5030ZZ0 | Block | 1 | |
| D-10 | M060DRS5032ZZ0 | Stopper | 1 | |
| D-11 | M060DRS5031ZZ0 | Block | 1 | |
| D-12 | PBTSTRCC104588 | Stopper bolt | 2 | |
| D-13 | M060HFA5004ZZ0 | Pin | 1 | |
| D-14 | PSARBQSC250888 | Absorber | 1 | |
| D-15 | PAXVPS6102VNAM | Sensor | 1 | |
| D-16 | PAXFBUVLM56888 | Nipple | 3 | |
| D-17 | PTLA07P8888888 | Terminal | 1 | |
| D-18 | M060DRS5029ZZ0 | Block | 2 | |
| D-19 | PSARBQC1604888 | Shock absorber | 2 | |
| D-20 | M040HFA5004ZZ1 | Air block | 1 | |
| D-21 | PAXFEC06180888 | Fitting | 6 | |
| D-22 | PAXFEL06180888 | Fitting | 6 | |
| D-23 | M060DRS5016ZZ0 | Block | 1 | |
| D-24 | M060HFA5012ZZ0 | Block | 1 | |
| D-25 | M060HFA5005ZZ0 | Block | 1 | |
| D-26 | PAXA3593300888 | Cylinder | 1 | |
| D-27 | PAXFESC0614888 | Speed controller | 2 | |
| D-28 | PSSO80BAND8888 | Sensor band | 2 | |
| D-29 | PSSOROSW888888 | Sensor | 2 | |
| D-30 | PBRNFJ1210ZZ88 | Roller bearing | 2 | |
| D-31 | M200HFB6011ZZ0 | Pin | 1 | |
| D-32 | PMXPSFJ1247888 | Linear shaft | 1 | |
| D-33 | PBRNFJH1212ZZ8 | Roller bearing | 1 |
