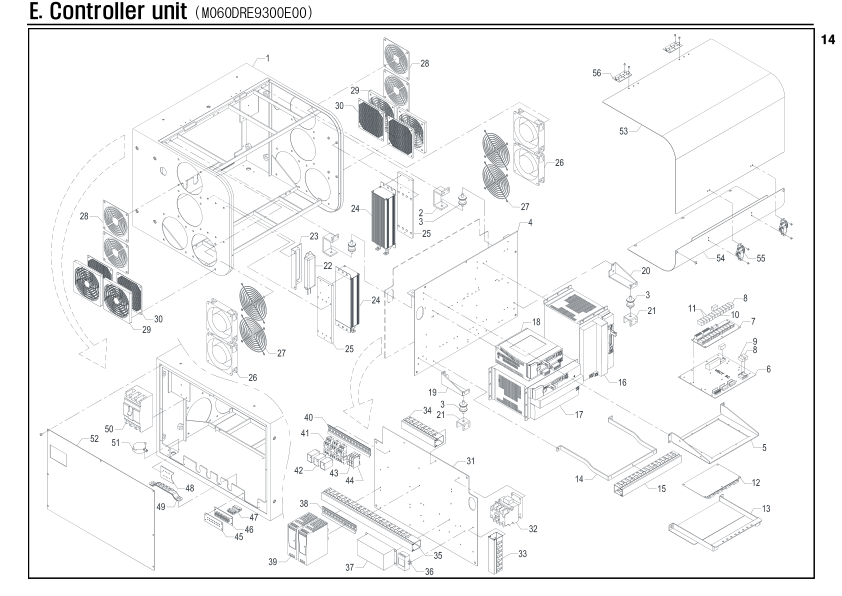

Controller unit

Unit Number: M060DRE9300E00

Robot: NEXIA-V-600SYSA 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	M060DRE9002ZZ0	Body	1
E-2	M020HFA9004ZZ0	Controller bracket	2
E-3	PMXK25M6888888	Antivibration gels	4
E-4	M030KHS9003ZZXA	Plate	1
E-5	MN20KFA9004ZZ0	Plate	1
E-6	PBDDSC88888888	Board	1
E-7	PBDDIL88888888	Board	1
E-8	PRL1174PFDUS24	Relay	12
E-9	PRL2114PUS2488	Relay	1
E-10	PRL2014PUS2488	Relay	1
E-11	PRL2214PUS2488	Relay	2
E-12	PBDDMOTION8888	Board	1
E-13	MN20KFA9028ZZ1	Plate	1
E-14	M030SBA9009ZZ0	Controller bracket	1
E-15	M030SBA9026MC0	Duct-30	1
E-16	PMTXMFDHTB3A28	Servo drive	1
E-17	PMTXMFDHTA3908	Servo drive	1
E-18	PMTXMCDHT35208	Servo drive	1
E-19	M020KFE9005ZZ0	Controller bracket	1
E-20	M020KFE9006ZZ0	Controller bracket	1
E-21	M020HFA9007ZZ0	Controller bracket	2
E-22	PEXRS040W30K88	Regenerative resistor	1
E-23	M060DRE9035ZZ0	Bracket	1
E-24	PEXRMCRA500888	Regenerative resistor	2
E-25	M020KKA9033ZZ0	Plate	2
E-26	PEXFSJ1238HA28	Fan	4
E-27	PEXFS105105888	Fan cover	4
E-28	PEXFSJ12COVER8	Fan cover	4
E-29	PEXFFILTER102F	Fan filter	4
E-30	PEXFFILTER120S	Fan filter	4
E-31	M030SBG9010ZZ0	Plate	1
E-32	PNSEGMC3288888	Contactor	1
E-33	MN20KFA9027MC0	Duct-30	1
E-34	MN20KFA9029MC0	Duct-30	1
E-35	M030SBA9025MC0	Duct-30	1
E-36	PFTEWYFS03TM88	Noise filter	1
E-37	PFTEWYFT30T1A8	Noise filter	1
E-38	M060DRECHAN-01	Terminal chnnel	1
E-39	PSMPSPRO075243	Power supply	2
E-40	M020KFA9020MC0	Terminal channel	1
E-41	PRLKLY28888888	Relay socket	3
E-42	PRLALY2N1DC248	Relay	3
E-43	PTLD0600015288	Terminal	3
E-44	PTLD0600015888	Separator	1
E-45	M020HFA9023MC0	Plate	1
E-46	PBDCLEDVECT888	Board	1
E-47	E020PFA8040060	Cable	1
E-48	M020HFA9032ZZ0	Cover	1
E-49	PEXELEBAR1458	Earth Bar	1
E-50	PNSCABS33B3088	Circuit breaker	1
E-51	ES55TW4610060E	Buzzer cable	1
E-52	M030SBA9012ZZ0	Cover	1
E-53	M030SBB9013ZZ0	Cover	1
E-54	M030SBB9014ZZ0	Cover	1
E-55	PMXBY117888888	Hook	2
E-56	PMXBYHS1560888	Hinge	2
