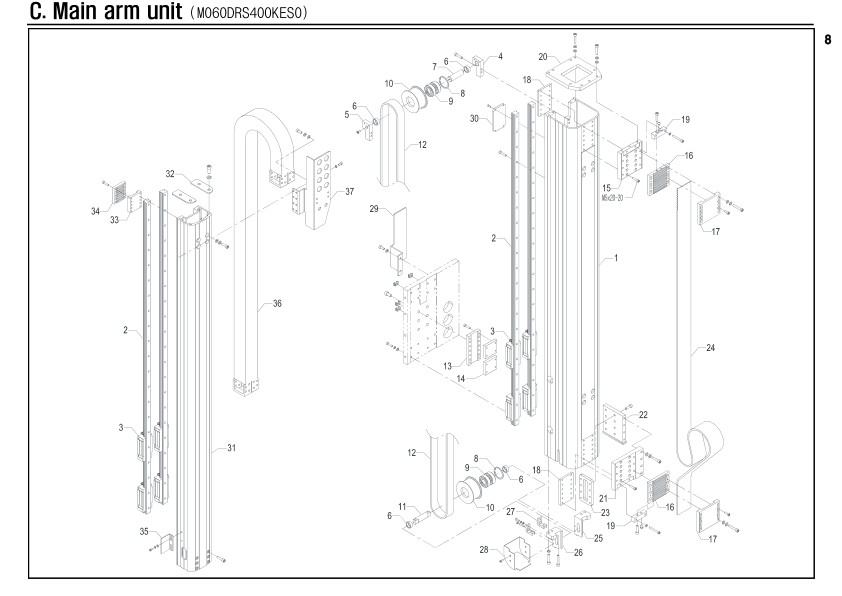

Main arm unit

Unit Number: M060DRS400KES0

Robot: NEXIA-V-600SYSA 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M060DRS4006MC0	File	1
C-2	PLMRSHS201240L	LM rail	4
C-3	PLMBSHS20VKZ18	LM block	8
C-4	M060HFA4019ZZ0	Bearing block	1
C-5	M060HFA4020ZZ0	Bearing block	1
C-6	M060HFA4036ZZ0	Collar	4
C-7	M060HFA4021ZZ0	Shaft	1
C-8	PRGH040H888888	Snap ring	2
C-9	PBRA6203ZZ8888	Bearing	4
C-10	M060HFA4025ZZ0	Roller	2
C-11	M060HFA4024ZZXA	Shaft	1
C-12	PBLTU8M3088888	Timing belt	2090
C-13	M060HFA4016ZZ0	Gripper block	1
C-14	M080PLE4046MC0	Gripper	2
C-15	M060DRE4044ZZ0	Block	1
C-16	M060DRE4020MC0	Gripper	2
C-17	M060DRE4021ZZ0	Gripper	2
C-18	M060DRE4010ZZ0	Gripper nut	2
C-19	M060DRE4012ZZ0	Block	2
C-20	M060DRE4052ZZ0	Plate	1
C-21	M060DRE4048ZZ0	Block	1
C-22	M060DRE4027ZZ0	Block	1
C-23	M060DRE4028ZZ0	Nut	1
C-24	PBLTU8M6088888	Timing belt	1776
C-25	M130GRE4023ZZ0	Pulley block	1
C-26	M130GRE4022ZZ0	Pulley block	1
C-27	M060HFA4065ZZXA	Bracket	2
C-28	M060HFA4045ZZ0	Cover	1
C-29	M060DRE4051ZZ0	Bracket	1
C-30	M060HFA4048ZZ0	Gripper block	1
C-31	M060DRS4007MC0	File	1
C-32	M060DRE4057ZZ0	Bracket	2
C-33	M060HFA4017ZZ1	Gripper block	1
C-34	M080PLE4014MC0	Gripper	1
C-35	M060DRE4040ZZ0	Plate	1
C-36	PCVH3503507535	Gripper	1
C-37	M060DRE4047ZZ0	Bracket	1
C-38	M060DRE4001ZZ0	Plate	1
C-39	M060DRE4002ZZ0	Plate	1
C-40	M060DRE4003ZZ0	Plate	1
C-41	MXADGAAB425ZZ0	Bar	1
C-42	PMXUNAH8158888	Stopper bolt	2
C-43	M060DRE4024ZZ0	Bar	1
C-44	M060DRE4050ZZ0	Shaft	1
C-45	M060DRE4026ZZ0	Shaft	3
C-46	M060DRE4015ZZ0	Shaft	6
C-47	M060DRE4019ZZ0	Plate	1
C-48	M060DRE4017ZZ0	Plate	1
C-49	PMTBMSME502GCH	Servo motor	1
C-50	PRESB11505PD40	Reducer	1
C-51	M060DRE4045ZZ0	Timing pulley	1
C-52	PPLMDR132A3260	Power lock	1
C-53	PBRA6915ZZ8888	Bearing	1
C-54	M060DRE4049ZZ0	Bearing	4
C-55	M060DRE4033ZZ0	Roller	2
C-56	PBRA6204ZZ8888	Bearing	8
C-57	PRGH047H888888	Snap ring	2
C-58	M060HFA4005ZZ0	Plate	1
C-59	M060DRE4056ZZ0	Block	1
C-60	PSSRHYP18S5NAF	Sensor	1
C-61	M035HAA4032ZZ0	Cylinder bracket	1
C-62	M035HAA4031MC0	Belt gripper	1
C-63	M080QLS4040ZZ0	Bracket	1
C-64	PSSMRS52SH8888	Magnet sensor	1
C-65	M060DRE4018ZZ0	Bracket	1
C-66	M060DRE4039MD0	Cover	1
C-67	M060DRE4025ZZ0	Bar	2
C-68	M060DRE4055ZZ0	Cover plate	1
C-69	M060DRE4042ZZ0	Cover	1
