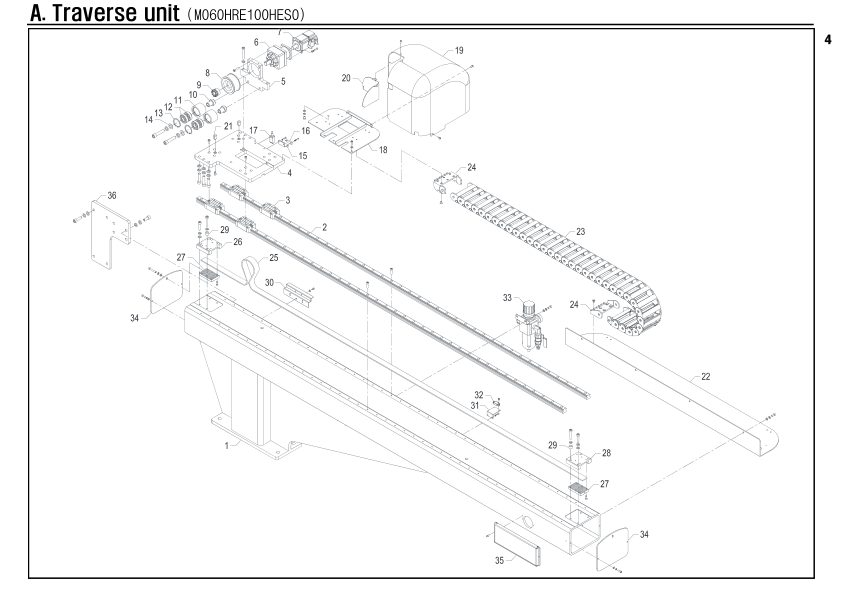

Traverse unit
Unit Number: M060HRE100HES0
Robot: ZEST-II-600D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M060HRE1001PW0 | Body | 1 | |
| A-2 | PMLRHGR25R2380 | LM rail | 2 | |
| A-3 | PLMBQHH25CA888 | LM block | 4 | |
| A-4 | M060HRE1012ZZ0 | LM Base | 1 | |
| A-5 | MN20KFG1004ZZ0 | Motor bracket | 1 | |
| A-6 | PRESSFS9CPB048 | Reducer | 1 | |
| A-7 | PMTBMSMD042G1S | Servo motor | 1 | |
| A-8 | MN20KFA4012ZZ0 | Timing pulley | 1 | |
| A-9 | PPLMMA19338888 | Power lock | 1 | |
| A-10 | M040DAA1007ZZ0 | Collar | 2 | |
| A-11 | M015MAB2010MC0 | Idle roller | 2 | |
| A-12 | PBRA6004ZZ8888 | Bearing | 4 | |
| A-13 | PRGH042H888888 | Snap ring | 2 | |
| A-14 | M040DAA1008ZZ0 | Washer | 2 | |
| A-15 | M030SBB1017MC0 | Bracket | 1 | |
| A-16 | PSSMRS1SH88888 | Sensor | 1 | |
| A-17 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-18 | M060HRE1014ZZ0 | Plate | 1 | |
| A-19 | M040KJG1015MD0 | Cover | 1 | |
| A-20 | M040KJG2032ZZ0 | Box plate | 1 | |
| A-21 | PMXPMSTH122088 | Pin | 2 | |
| A-22 | M040GSE1003ZZ0 | Cableveyor plate | 1 | |
| A-23 | PCVH4504B09588 | Cableveyor link | 34 | |
| A-24 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-25 | PBLTA103008888 | Timing belt | 2800 | |
| A-26 | M015MAB1004ZZ0 | Gripper block | 1 | |
| A-27 | M015MAB1002MC0 | Gripper | 2 | |
| A-28 | M015MAB1009ZZ0 | Gripper block | 1 | |
| A-29 | M015MAB1016ZZ0 | Block | 2 | |
| A-30 | M060RLA1007ZZ0 | Bracket | 1 | |
| A-31 | M015MAB1018MC0 | Bracket | 1 | |
| A-32 | PSSMRS52SHC888 | Magnet | 1 | |
| A-33 | PAXSTAW4000ASY | Filter regulator | 1 | |
| A-34 | MN20KFG1025ZZ0 | Bracket | 2 | |
| A-35 | MXAKAAB1000000 | Counter | 1 | |
| A-36 | MN08KFA1021PW0 | Plate | 1 |
