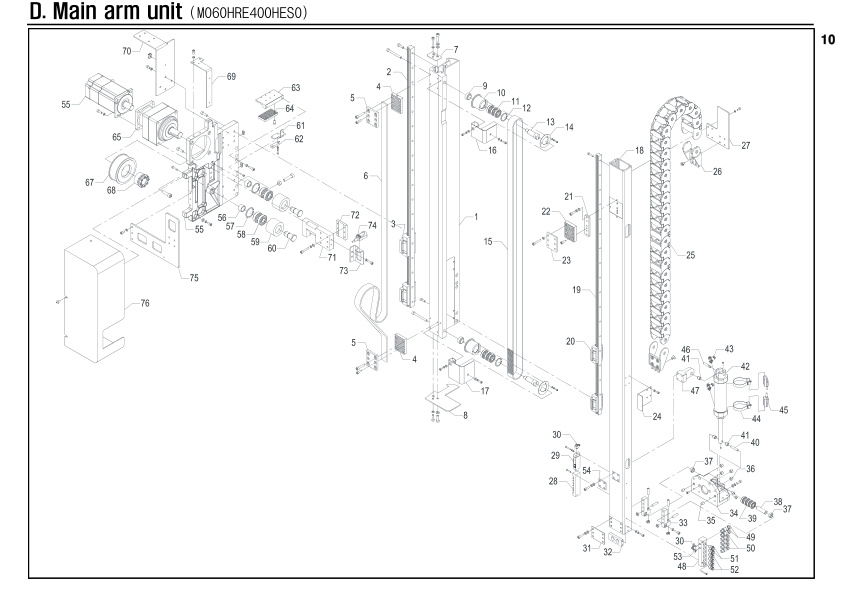

Main arm unit

Unit Number: M060HRE400HES0

Robot: ZEST-II-600D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
D-1	M060HRE4006MC0	File	1
D-2	PMLRHGR20R1060	LM rail	1
D-3	PLMBQHW20CC888	LM block	2
D-4	M020KFC4033MC0	Belt gripper	2
D-5	M015MAB4016ZZ0	Gripper block	2
D-6	PBLTU8M2588888	Timing belt	1
D-7	M015MAB3044ZZ0	Plate	1
D-8	M035HAA3037ZZ0	Plate	1
D-9	M035HAA3018ZZ0	Collar	2
D-10	M035HAA3021ZZ0	Roller	2
D-11	PBRA6902ZZ8888	Bearing	6
D-12	PRGH028H888888	Snap ring	2
D-13	M035HAA3019ZZ0	Shaft	2
D-14	M035HAA3015ZZ0	Timing pulley	2
D-15	PBLTU5M2588888	Timing belt	1
D-16	M040KJG4036ZZ0	Belt cover	1
D-17	M040KJG4038ZZ0	Belt cover	1
D-18	M060HRE4007MC0	File	1
D-19	PMLRHGR15R1060	LM rail	1
D-20	PLMBQHW15CC888	LM block	2
D-21	M035HAA3010ZZ0	Gripper nut	1
D-22	M035HAA3014MC0	Belt gripper	1
D-23	M035HAA3017ZZ0	Gripper block	1
D-24	M015MAB4039ZZ0	Bracket	1
D-25	PCVH4501B07588	Cableveyor link	25
D-26	PCVE4501300088	Cableveyor end bracket	1
D-27	M015MAB4023ZZ0	Bracket	1
D-28	PTLA07P8888888	Terminal	1
D-29	PAXVPS6102VNAM	Sensor	1
D-30	PAXFBUVLM56888	Nipple	2
D-31	M060HRE4041ZZ0	Plate	1
D-32	M060HRE5008ZZ0	Block	1
D-33	M060HRE5002ZZ0	Block	2
D-34	M060HRE5005MC0	Plate	1
D-35	M035HAA5012ZZ0	Pin	2
D-36	M060HRE4047ZZ0	Pin	4
D-37	M060HRE5007ZZ0	Collar	2
D-38	M060HRE5003ZZ0	Pin	1
D-39	PBRA6901ZZ8888	Bearing	4
D-40	PMXPSFJ6328888	Shaft	1
D-41	PBRNFJ69ZZ8888	Roller bearing	3
D-42	PAXA3548400888	Cylinder	1
D-43	PAXFESC04M5888	Speed controller	2
D-44	PSSOROSWBAND88	Sensor band	2
D-45	PSSOROSW888888	Sensor	2
D-46	M035HAA5009MC0	Pin	1
D-47	M060HRE5016ZZ0	Block	1
D-48	M020HFB5018ZZ0	Air Block	1
D-49	PAXFEL06180888	Fitting	2
D-50	PAXFEL04180888	Fitting	4
D-51	PAXFEC06180888	Fitting	2
D-52	PAXFEC04188888	Fitting	4
D-53	PAXFBBPM588888	Plug	1
D-54	M060HRE5004ZZ0	Plate	1
D-55	M040KJG4001MC0	Bracket	1
D-56	M060HRE4036ZZ0	Collar	2
D-57	PRGH035H888888	Snap ring	2
D-58	PBRA6003ZZ8888	Bearing	4
D-59	M060HRE4011ZZ0	Roller	2
D-60	M060HRE4035ZZ0	Shaft	2
D-61	M040KJG4040ZZ0	Bracket	1
D-62	PSSMRS1SH88888	Sensor	1
D-63	MN20KFG4032ZZ0	Belt plate	1
D-64	MN20KFG2031MC0	Belt gripper	1
D-65	PRESSF15DPB088	Reducer	1
D-66	PMTBMSMD082G1T	Servo motor	1
D-67	M060RLA4012ZZ0	Timing pulley	1
D-68	PPLMMA24428888	Power lock	1
D-69	M040KJG4024ZZ0	Bracket	1
D-70	M040KJG4034ZZ0	Bracket	1
D-71	M040KJG4004MC0	Belt gripper	1
D-72	M035HAA3042ZZ0	Gripper block	1
D-73	M040KJG4015ZZ0	Bracket	1
D-74	PSSRHYP18S5NAF	Sensor	1
D-75	M040KJG4044ZZ0	Cableveyor fixed bracket	1
D-76	M040KJG4042ZZ0	Cover	1
