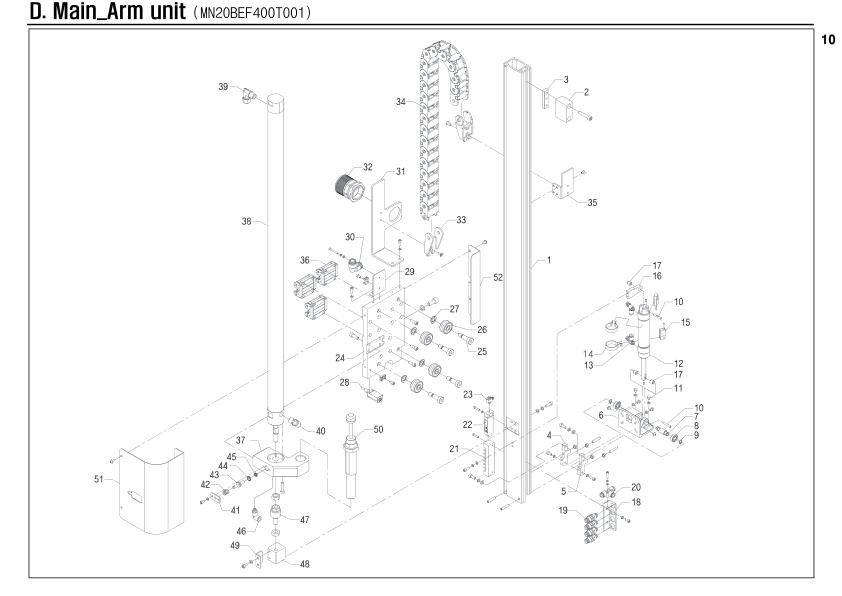

Main_Arm unit
Unit Number: MN20BEF400T001
Robot: HIT-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MN20BEF4001MC0 | File | 1 | |
| D-2 | MN20BDA4009ZZ0 | Stopper | 1 | |
| D-3 | MN20BDA4017MC | Key Nut | 1 | |
| D-4 | MN20BEF4021MC0 | Cylinder Holder | 1 | |
| D-5 | MN20BEF4022MC0 | Cylinder Holder | 1 | |
| D-6 | MN20BEF5002ZZ0 | Plate | 1 | |
| D-7 | MN20BEF5005ZZ0 | Pin | 1 | |
| D-8 | PBRA0698ZZ8888 | Bearing | 2 | |
| D-9 | PRGS008S888888 | Snap Ring | 2 | |
| D-10 | MN20BDA5009MC | Pin | 2 | |
| D-11 | MN20BDA5025ZZ0 | Bolt | 4 | |
| D-12 | PAXA3550300528 | Cylinder | 1 | |
| D-13 | PAXFESC04M5888 | Speed controller | 2 | |
| D-14 | PSSRDC73BN25SU | Sensor Band | 2 | |
| D-15 | PSSRISTCDC7388 | Sensor | 2 | |
| D-16 | MN20BEF5004MC0 | Cylinder Holder | 1 | |
| D-17 | PBRNFJP48ZZ888 | Roller bearing | 3 | |
| D-18 | MN20BEF5003ZZ0 | Air Plate | 1 | |
| D-19 | PAXFPMM0488888 | Fitting | 4 | |
| D-20 | PAXFSQT0600888 | Fitting | 1 | |
| D-21 | PTLA07P8888888 | Terminal | 1 | |
| D-22 | PAXVPS6102VNAM | Sensor | 1 | |
| D-23 | PAXFBUVLM56888 | Nipple | 1 | |
| D-24 | MN20BEF4003ZZ0 | Plate | 1 | |
| D-25 | PBTH10M08020L8 | Shoulder Bolt | 4 | |
| D-26 | MN20BDA4002MC | Bearing | 4 | |
| D-27 | MN20BDA4020ZZ0 | Ring | 4 | |
| D-28 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-29 | MN20BEF4018ZZ0 | Air Plate | 1 | |
| D-30 | PAXFSQL1000888 | Fitting | 1 | |
| D-31 | MN20BEG4011ZZ0 | Cableveyor Bracket | 1 | |
| D-32 | PMXPFTNCP29B88 | Flexible coupling | 1 | |
| D-33 | PCVE3202300088 | Cableveyor end bracket | 1 | |
| D-34 | PCVH3202B05088 | Cableveyor link | 21 | |
| D-35 | MN20BDA4010ZZ0 | Cableveyor bracket | 1 | |
| D-36 | PLMBBGCH15FN88 | LM block | 3 | |
| D-37 | MN20BEF4004ZZ0 | Cylinder base | 1 | |
| D-38 | PAXA3550208008 | Cylinder | 1 | |
| D-39 | PAXFL4N1065148 | Fitting | 1 | |
| D-40 | PAXFEL08140888 | Fitting | 1 | |
| D-41 | MN20BDA4015ZZ0 | Cover | 1 | |
| D-42 | MS55AT34206MC0 | Spring | 1 | |
| D-43 | MN20BDA4014ZZ0 | Piston | 1 | |
| D-44 | PPAAMYA0988888 | Packing | 1 | |
| D-45 | PPAAMYA0688888 | Packing | 1 | |
| D-46 | PAXFEL06M58888 | Fitting | 1 | |
| D-47 | PAXJFJ10125SY8 | Floating Joint | 1 | |
| D-48 | MN20BEF4005ZZ0 | Cylinder block | 1 | |
| D-49 | MN20BEF4006ZZ0 | Sensor plate | 1 | |
| D-50 | PSAKIEM14509CE | Absorber | 1 | |
| D-51 | MN20BEF4012ZZ0 | Cover | 1 | |
| D-52 | MN20BDA4013ZZ0 | Cover | 1 |
