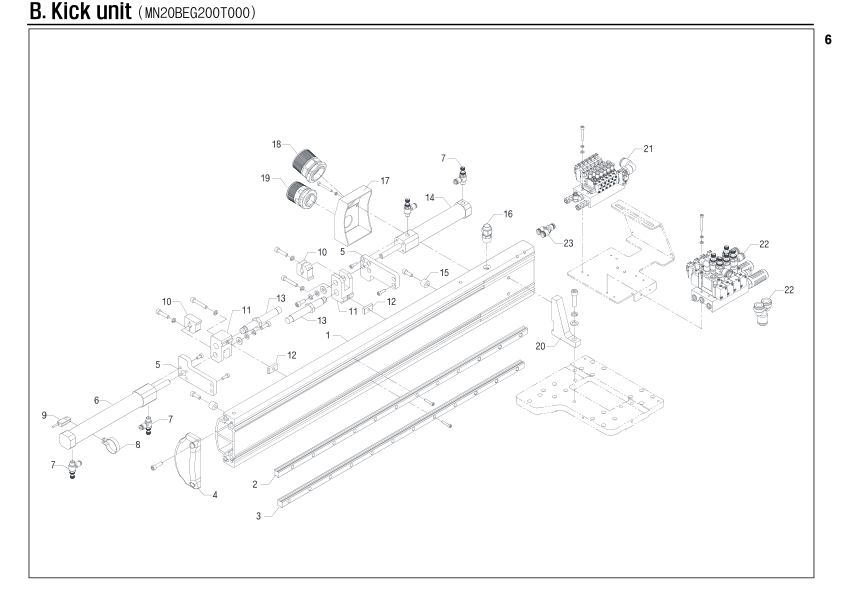

Kick unit
Unit Number: MN20BEG200T000
Robot: HIT-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | MN20BEF2014MC0 | File | 1 | |
| B-2 | PMLRBGCH150720 | LM rail | 1 | |
| B-3 | PMLRBGCH150700 | LM rail | 1 | |
| B-4 | MS55TW43004MD0 | File cover | 1 | |
| B-5 | MN20BEF2003ZZ0 | Cylinder plate | 2 | |
| B-6 | PAXA3582601508 | Cylinder | 1 | |
| B-7 | PAXFSP2201F14S | Speed controller | 4 | |
| B-8 | PSSRDC73BN25AL | Sensor band | 1 | |
| B-9 | PSSRISTCDC7388 | Sensor | 1 | |
| B-10 | MS55TW43006NI0 | Collar | 2 | |
| B-11 | MS55TW43003NI0 | Block | 2 | |
| B-12 | MS55TW43009ZZ0 | Square nut | 2 | |
| B-13 | PSAKIEN07206CH | Absorber | 2 | |
| B-14 | PAXA3478700908 | Cylinder | 1 | |
| B-15 | MS55TW43007NI0 | Stoper | 2 | |
| B-16 | PAXFKFH12N03S8 | Fitting | 1 | |
| B-17 | MN20BEG2008ZZ0 | Hose cover | 1 | |
| B-18 | PMXPFTNCP29B88 | Flexible coupling | 1 | |
| B-19 | PMXPFTNCP21B88 | Flexible coupling | 1 | |
| B-20 | MN20BEF2021ZZ0 | Bracket | 1 | |
| B-21 | MN20BEF1100002 | Solenoid valve unit | 1 | |
| B-22 | MN20BEF2100002 | Solenoid valve unit | 1 | |
| B-23 | PAXFAYB0606888 | Fitting | 1 |
