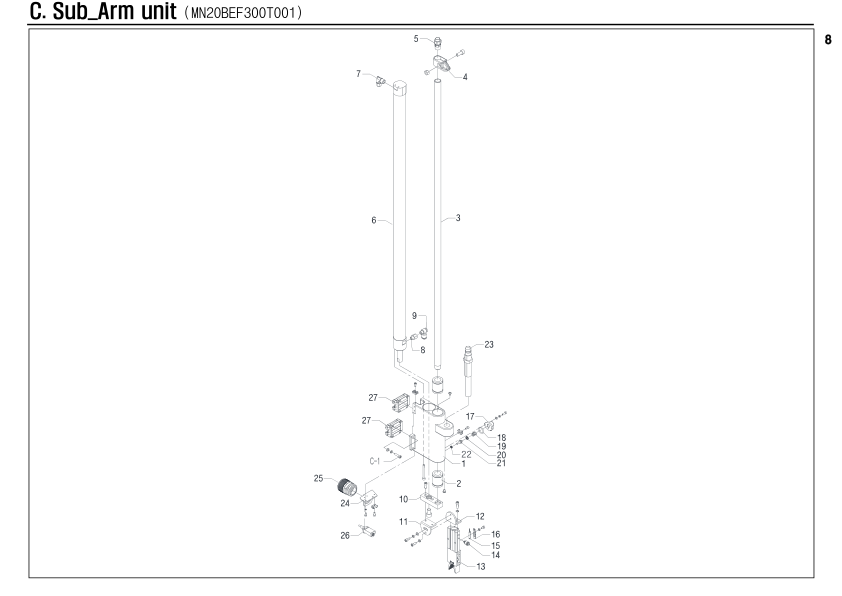

Sub_Arm unit
Unit Number: MN20BEF300T001
Robot: HIT-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| C-1 | MN20BEF3001PW0 | Cylinder block | 1 | |
| C-2 | PBSBLM20UU8888 | Ball bush | 2 | |
| C-3 | MN20BEF3002MC0 | Slideshaft | 1 | |
| C-4 | MS55AT34007ZB0 | Stoper dog | 1 | |
| C-5 | PAXFKFH12N03S8 | Fitting | 1 | |
| C-6 | PAXA3531808508 | Cylinder | 1 | |
| C-7 | PAXFL4N085PT14 | Fitting | 1 | |
| C-8 | PAXBREDU181888 | Reducer | 1 | |
| C-9 | PAXFPH808180888 | Fitting | 1 | |
| C-10 | MS55AT34402ZB0 | Bracket | 1 | |
| C-11 | MS55AT34004ZW0 | Gripper bracket | 1 | |
| C-12 | MS55AT34005ZW0 | Gripper bracket | 1 | |
| C-13 | PAXAHYCITYPE88 | Hy air chuck(I-type) | 1 | |
| C-14 | PAXFSQH04M5888 | Fitting | 1 | |
| C-15 | PSSMSHYCDA9388 | Auto switch | 1 | |
| C-16 | MS55AT44302ZZ0 | Sensor bracket | 1 | |
| C-17 | MS55TW45007MD0 | Block | 1 | |
| C-18 | PPAP0188888888 | O-Ring | 1 | |
| C-19 | MS55AT34206MC0 | Spring | 1 | |
| C-20 | PPAAMYA0788888 | Packing | 1 | |
| C-21 | MS55AT34204ZB0 | Piston | 1 | |
| C-22 | PPAAMYA0488888 | Packing | 1 | |
| C-23 | PSAKIEM10506C8 | Absorber | 1 | |
| C-24 | MN20BEG3007ZZ0 | B/K | 1 | |
| C-25 | PMXPFTNCP21B88 | Flexible coupling | 1 | |
| C-26 | PSSRHYP18S5NAF | Sensor | 1 | |
| C-27 | PLMBBGCH15FN88 | LM block | 2 |
