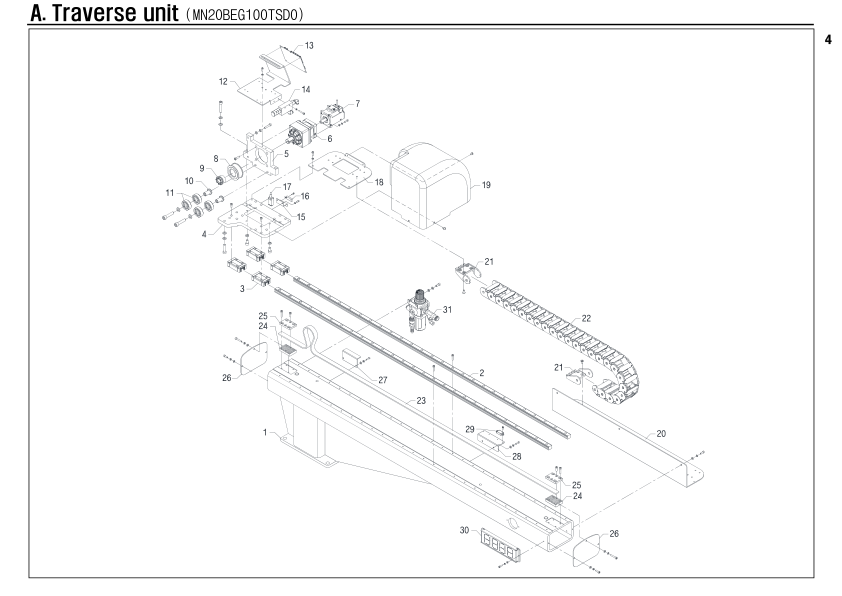

Traverse unit
Unit Number: MN20BEG100TSD0
Robot: HIT-200D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | MN20BEG1001PW0 | Body | 1 | |
| A-2 | PMLRBGCS201600 | LM rail | 2 | |
| A-3 | PLMBBGCS20BN88 | LM block | 4 | |
| A-4 | MN20BEG1003ZZ0 | Slide plate | 1 | |
| A-5 | MN20BEG1004ZZ0 | Motor block | 1 | |
| A-6 | PRES78Z090SA02 | Reducer | 1 | |
| A-7 | PMTBMA201N2TN5 | Servo motor | 1 | |
| A-8 | MN20BDA1005ZZ0 | Pulley | 1 | |
| A-9 | PPLMMA19338888 | Power lock | 1 | |
| A-10 | MN20BDA1007ZZ0 | Collar | 2 | |
| A-11 | PBRA6302ZZ8888 | Bearing | 4 | |
| A-12 | MN20BEG1024ZZ0 | Solenoid valve bracket | 1 | |
| A-13 | PBDCIFVECT8888 | Board | 1 | |
| A-14 | PAXVIV15HS8888 | Vacuum pump | 1 | |
| A-15 | M030SBB1017MC0 | Bracket | 1 | |
| A-16 | PSSMRS1SH88888 | Sensor | 1 | |
| A-17 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-18 | MN20BEG1014ZZ0 | Lower plate | 1 | |
| A-19 | MN20BEG1012MD0 | Solbox cover | 1 | |
| A-20 | MN20BDG1013ZZ0 | Cableveyor bracket | 1 | |
| A-21 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| A-22 | PCVH4502B07588 | Cableveyor link | 24 | |
| A-23 | PBLTA102088888 | Timing belt | 1850 | |
| A-24 | M015MAB3033MC0 | Belt gripper | 2 | |
| A-25 | M015MAB3016ZZ0 | Gripper block | 2 | |
| A-26 | MN08KFA1025ZZ0 | Cover | 2 | |
| A-27 | MN20BEF1017ZZ0 | Sensor plate | 1 | |
| A-28 | MN20BDC1028ZZ0 | Sensor plate | 1 | |
| A-29 | PSSMRS52SHC888 | Magnet | 1 | |
| A-30 | MXAKAAB6000000 | Counter | 1 | |
| A-31 | PAXSPP303BG888 | Filter regulator | 1 |
