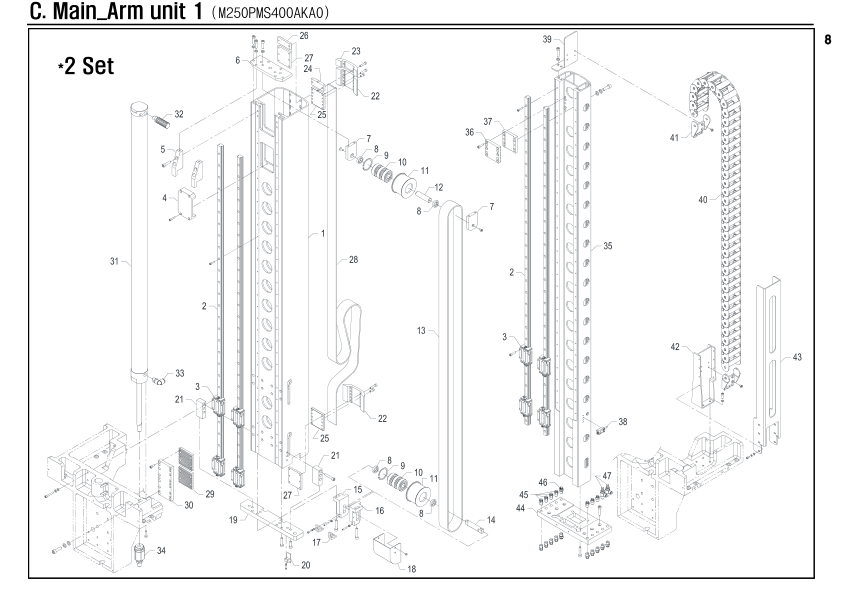

Main_Arm unit

Unit Number: M250PMS400AKA0

Robot: EPIK-E-2500D-SM 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M250PMS4002MC0	File
C-2	PLMRSAH201680L	LM rail
C-3	PLMBSAH20EM888	LM block
C-4	M130HFA4048MC0	Gripper block
C-5	M130VEA4031ZZ0	Block
C-6	M130MAA4004ZZ0	Plate
C-7	M130MAA4005ZZ0	Pulley block
C-8	M130HFA4039ZZ0	Collar
C-9	PRGH052H888888	Snap ring
C-10	PBRA6304ZZ8888	Bearing
C-11	M130HFA4007ZZ0	Idle roller
C-12	M130HFA4006ZZ0	Roller shaft
C-13	PBLTU8M5088888	Timing belt
C-14	M130HFA4026ZZXA	Roller shaft
C-15	M130MAA4011ZZXA	Block
C-16	M130MAA4010ZZXA	Block
C-17	M130HFA4065ZZXA	Bracket
C-18	M130MAA4033ZZ0	Pulley cover
C-19	M130HFA4008ZZ0	Plate
C-20	M130HFA4040ZZ0	Plate
C-21	M130MAA4009ZZ0	Block
C-22	M130MAA4021MC0	Belt gripper
C-23	M130MAA4025MC0	Block
C-24	M130MAA4024ZZ0	Tension block
C-25	M200QLS4020MC0	Belt gripper
C-26	M130MAA4023ZZ0	Plate
C-27	M130MAA4022ZZ0	Plate
C-28	PBLTU8M5088888	Timing belt
C-29	M250PMS4010MC0	Gripper
C-30	M130MAA4012ZZ0	Belt gripper
C-31	PAXA3642012821	Cylinder
C-32	PAXZSILENCER38	Silencer
C-33	PAXFEL12380888	Fitting
C-34	PCPJFK16888888	Floating joing
C-35	M250PMS4003MC0	File
C-36	M250PMS4014MC0	Gripper
C-37	M130HFA4013ZZ0	Belt gripper
C-38	PSSRHYP18S5NAF	Sensor
C-39	M130HFA4029ZZ0	Bracket
C-40	PCVH4502309588	Cableveyor link
C-41	PCVE4502300088	Cableveyor end bracket
C-42	M130HFB4028ZZ0	Cableveyor bracket
C-43	M130HFA4046ZZ0	Plate
C-44	M200ULS4026ZZXA	Plate
C-45	PAXFEC06140888	Fitting
C-46	PAXFEC08140888	Fitting
C-47	PAXFESC0614888	Speed controller
C-48	M130HFA4001MC0	Base
C-49	M130MAA4016ZZ0	Block
C-50	M130MAA4015ZZ0	Block
C-51	M250PMS4019ZZ0	Motor block
C-52	M250PMS4017ZZ0	Motor block
C-53	M250PMS4071ZZ0	Bracket
C-54	M250PMS4022ZZ0	Shaft
C-55	PBRA6916ZZ8888	Bearing
C-56	PPLMMA40628888	Power lock
C-57	M250PMS4018ZZ0	Timing pulley
C-58	PRESAB14102KG30	Reducer
C-59	PMTBEMJ30APA24	Servo motor
C-60	M250PMS4042ZZ0	Collar
C-61	M130MAA4044ZZ0	Roller
C-62	PBRA6205ZZ8888	Bearing
C-63	M130HFA2005ZZ0	Idle shaft
C-64	M130MAA4030ZZ0	Guide shaft
C-65	PBRA6000ZZ8888	Bearing
C-66	PRGS010S888888	Snap ring
C-67	M250PMS4036ZZ0	Cover
C-68	M250PMS2007ZZ0	Plate
C-69	M200TLA2009ZZ0	Plate
C-70	M250PMS2008ZZ0	Plate
C-71	PPLMMA22408888	Power lock
C-72	M250PMS2021ZZ0	Helical gear
C-73	PRESAB90102PB08	Reducer
C-74	PMTBEMJ10APB22	Servo motor
C-75	M250PMS2033ZZ0	Cover
C-76	M200TLA1015ZZXA	Bracket
C-77	M015MAB1017MC0	Bracket
C-78	PSSMRS52SH8888	Magnet sensor
C-79	M130HFA4038ZZ0	Cover
C-80	PAXFPMM0688888	Fitting
C-81	PAXFPMM0888888	Fitting
C-82	M200TLA4027ZZ0	Cableveyor bracket
C-83	M130FFA4030ZZ0	Block
C-84	PAXAIDF32AS25T	Cylinder
C-85	PAXFEL06180888	Fitting
C-86	M130MAA4037ZZ0	Cover
