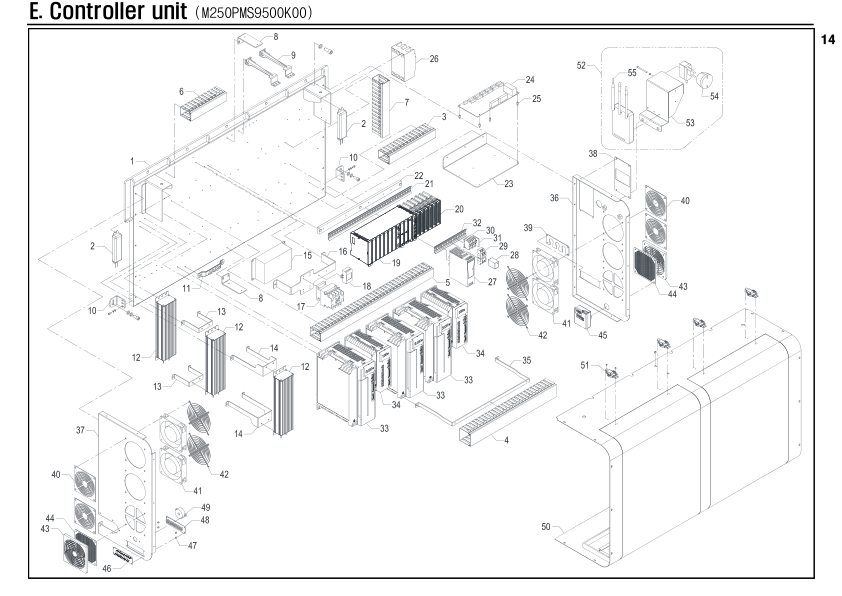

Controller unit

Unit Number: M250PMS9500K00

Robot: EPIK-E-2500D-SM 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	M250PMS9001ZZ0	Plate	1
E-2	PEXRS040W30K88	Regenerative resistor	2
E-3	M250PMSDUCT-01	Duct-30	1
E-4	M250PMSDUCT-02	Duct-30	1
E-5	M250PMSDUCT-03	Duct-30	1
E-6	M250PMSDUCT-04	Duct-30	1
E-7	M250PMSDUCT-05	Duct-30	1
E-8	M250PMS9058ZZ0	Controller bracket	2
E-9	M080JPE9015ZZ0	Controller bracket	2
E-10	M250PMS9052ZZ0	Controller bracket	2
E-11	PEXELEBAR14588	Earth Bar	1
E-12	PEXRS800W10K88	Regenerative resistor	3
E-13	M250PMS9057ZZ0	Controller bracket	2
E-14	M250PMS9056ZZ0	Controller bracket	2
E-15	PFTEWYFT40T2A8	Noise filter	1
E-16	M250PMS9050ZZ0	Controller bracket	1
E-17	PNSEGMC4088888	Contactor	1
E-18	PFTEWYFS03TM88	Noise filter	1
E-19	PBDKBCPUCP2638		1
E-20	PBDIOMODDM276A	I/O modules	6
E-21	M250PMSCHAN-03	Terminal channel	1
E-22	M080JPE9020ZZXA	Base	1
E-23	M250PMS9051ZZ0	Controller bracket	1
E-24	PBDINTKEBAV201	Board	1
E-25	PEXSFM31005888	Support	7
E-26	PNSCABS33B408	Circuit brake	1
E-27	PSMPPRO1202405	Power supply	1
E-28	PRLALY2N1DC248	Relay	1
E-29	PRLKLY28888888	Relay socket	1
E-30	PTLD0600015288	Terminal	5
E-31	PTLD0600015888	Separator	1
E-32	M250PMSCHAN-01	Terminal channel	1
E-33	PMTXPNE30A8888	Servo drive	3
E-34	PMTXPNE10A8888	Servo drive	2
E-35	M250PMS9009ZZ0	Controller bracket	1
E-36	M250PMS9012ZZ0	Plate	1
E-37	M250PMS9011ZZ0	Plate	1
E-38	M250PMS9053ZZ0	Cover	1
E-39	M250PMS9054ZZ0	Plate	1
E-40	PEXFSJ12COVER8	Fan cover	4
E-41	PEXFSJ1238HA28	Fan	4
E-42	PEXFS105105888	Fan cover	4
E-43	PEXFFILTER102F	Fan filter	2
E-44	PEXFFILTER120S	Fan filter	2
E-45	PEXJTBOXJB001A	Ketop handheld terminals	1
E-46	M020KKA9023MC0	Plate	1
E-47	PEXSFM30588888	Support	4
E-48	PBDCLEDKEBA888	Board	1
E-49	PEXZBUZZER8888	Buzzer	1
E-50	M250PMS9007ZZ0	Cover	1
E-51	PMXBY117888888	Hook	4
E-52	MXCTKB70000000	Board	1
E-53	M020KFG7003ZZ1	Cover	1
E-54	PN1HCON8888888	Concent	1
E-55	PNN704BCM88888	Access point
