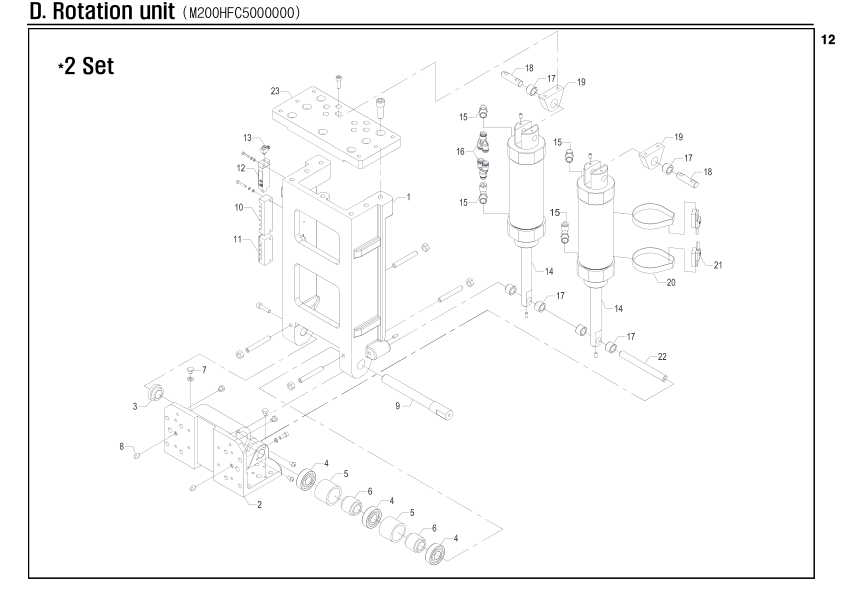

Rotation unit
Unit Number: M200HFC5000000
Robot: EPIK-E-2500D-SM 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M200HFA5002PW0 | Block | ||
| D-2 | M200HFA5003ZZ0 | Plate | ||
| D-3 | M130HFA5006ZZ0 | Collar | ||
| D-4 | PBRA6203ZZ8888 | Bearing | ||
| D-5 | M200HFA5010ZZ0 | Collar | ||
| D-6 | M200HFA5011ZZ0 | Collar | ||
| D-7 | M040HFA5025ZZ0 | Bolt | ||
| D-8 | M035HAA5012ZZ0 | Pin | ||
| D-9 | M200HFA5004ZZ0 | Rotate pin | ||
| D-10 | PTLA06P8888888 | Terminal | ||
| D-11 | PTLA04P8888888 | Terminal | ||
| D-12 | PAXVPS6102VNAM | Sensor | ||
| D-13 | PAXFBUVLM56888 | Nipple | ||
| D-14 | PAXA3593301188 | Cylinder | ||
| D-15 | PAXFEL06140888 | Fitting | ||
| D-16 | PAXFAYB0606888 | Fitting | ||
| D-17 | PBRNFJH1212ZZ8 | Roller bearing | ||
| D-18 | PMXPSFJ1247888 | Linear shaft | ||
| D-19 | M200HFA5012ZZ0 | Joint | ||
| D-20 | PSSO80BAND8888 | Sensor band | ||
| D-21 | PSSOROSW888888 | Sensor | ||
| D-22 | M200HFA5009ZZ0 | Linear shaft | ||
| D-23 | M200HFA5001ZZ0 | Base |
