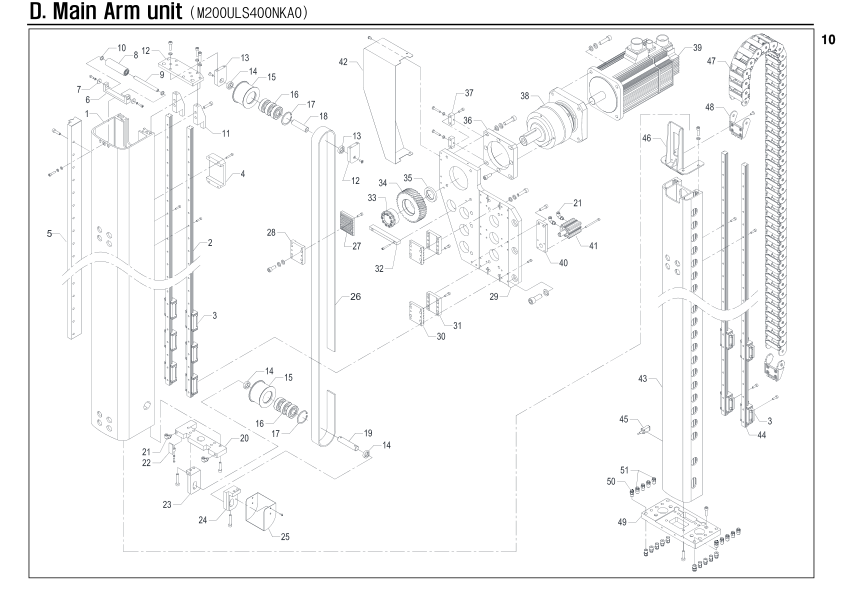

Main Arm unit

Unit Number: M200ULS400NKA0

Robot: NEXIA-2000SWL(KEBA) 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
D-1	M200ULK4002MC0	File	1
D-2	PLMRSAH201680L	LM rail	4
D-3	PLMBSAH20AN888	LM block	6
D-4	M130HFA4048MC0	Gripper block	1
D-5	M200ULK4020ZZ0	Helical rack	1
D-6	M200ULS4056ZZ0	Roller block	1
D-7	M080HFB6013ZZ0	Collar	2
D-8	PBRORLA3012100	Roller	1
D-9	M200ULS4057ZZ0	Pin	1
D-10	MS55TW45006ZB0	Collar	2
D-11	M130HFA4031ZZ0	Block	2
D-12	M200ULA4004ZZ0	Plate	1
D-13	M130MAA4005ZZ0	Pulley block	2
D-14	M130HFA4039ZZ0	Collar	4
D-15	M130HFA4007ZZ0	Idle roller	2
D-16	PBRA6304ZZ8888	Bearing	6
D-17	PRGH052H888888	Snap ring	2
D-18	M130HFA4006ZZ0	Roller shaft	1
D-19	M130HFA4026ZZ0	Roller shaft	1
D-20	M200ULA4008ZZ0	Plate	1
D-21	PAXFEL06180888	Fitting	4
D-22	M130HFA4040ZZ0	Plate	1
D-23	M130MAA4010ZZ0	Block	1
D-24	M130MAA4011ZZ0	Block	1
D-25	M130MAA4033ZZ0	Pulley cover	1
D-26	PBLTU8M4088882	Timing belt	3712
D-27	M200ULA4015MC0	Gripper	1
D-28	M200ULA4013ZZ0	Belt gripper	1
D-29	M200ULS4001MC1	Plate	1
D-30	M200ULA4014MC0	Gripper	2
D-31	M200ULA4012ZZ0	Belt Gripper	2
D-32	M200ULA4022ZZ0	Block	1
D-33	PPLMMA40628888	Power lock	1
D-34	M200ULA4018ZZ0	Helical gear	1
D-35	M200ULA4042ZZ0	Plate	1
D-36	M200ULS4017ZZ0	Plate	1
D-37	M250ULA4013ZZ0	Block	2
D-38	PRESAE15102KG50	Reducer	1
D-39	PMTBEMJ50APA24	Servo motor	1
D-40	M200ULA4030ZZ0	Block	1
D-41	PAXAIDFW32AS25	Cylinder	1
D-42	M200ULA4036ZZ0	Cover	1
D-43	M200ULK4003MC0	File	1
D-44	PLMBSAH20EM888	LM block	4
D-45	PSSRHYP18S5NAF	Sensor	1
D-46	M200ULS4029ZZ0	Bracket	1
D-47	PCVH4502309588	Cableveyor link	42
D-48	PCVE4502300088	Cableveyor end bracket	1
D-49	M200ULS4026ZZ0	Plate	1
D-50	PAXFEC08140888	Fitting	4
D-51	PAXFEC06140888	Fitting	16
