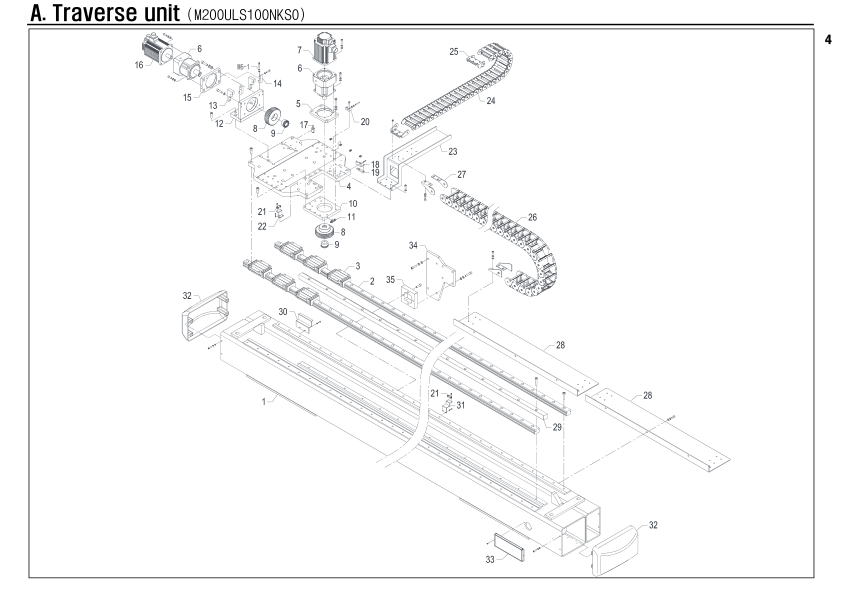

Traverse unit
Unit Number: M200ULS100NKS0
Robot: NEXIA-2000SWL(KEBA) 📎
/M200ULS100NKS0.png)
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M200ULK1001PW0 | Frame | 1 | |
| A-2 | PLMRSAH454795L | LM rail | 2 | |
| A-3 | PLMBSAH45EM888 | LM block | 6 | |
| A-4 | M200ULA1003ZZ0 | Slide base | 1 | |
| A-5 | M200ULS1010ZZ0 | Plate | 1 | |
| A-6 | PRESAB15102KG20 | Reducer | 2 | |
| A-7 | PMTBEMJ20APA22 | Servo motor | 1 | |
| A-8 | M200ULS1008ZZ0 | Helical gear | 2 | |
| A-9 | PPLMMA32508888 | Power lock | 2 | |
| A-10 | M200ULS1007ZZ0 | Plate | 1 | |
| A-11 | PAXFT4N64PT188 | Fitting T type | 1 | |
| A-12 | M200ULS2006ZZ0 | Plate | 1 | |
| A-13 | M250ULB2039ZZ0 | PLATE | 2 | |
| A-14 | M250ULA2014ZZ0 | PLATE | 2 | |
| A-15 | M200ULS2024ZZ0 | Plate | 1 | |
| A-16 | PMTBEMJ15APA22 | Servo motor | 1 | |
| A-17 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-18 | M015MAB1017MC0 | Bracket | 1 | |
| A-19 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-20 | M200JPB1012ZZ0 | PLATE | 1 | |
| A-21 | PSSMRS52SHC888 | Magnet | 2 | |
| A-22 | M250ULA2018MC0 | Bracket | 1 | |
| A-23 | M250ULA2008ZZ0 | Cableveyor Bracket | 1 | |
| A-24 | PCVH4504B09588 | Cableveyor link | 29 | |
| A-25 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-26 | PCVH070NB10088 | Cableveyor link | 42 | |
| A-27 | PCVE070NB10088 | Cableveyor end bracket | 1 | |
| A-28 | M200ULK1011ZZ0 | Cableveyor plate | 2 | |
| A-29 | M200ULB1050ZZ0 | Helical_Rack | 1 | |
| A-30 | M200HFA1021ZZ0 | Bracket | 1 | |
| A-31 | M200HFA1022MC0 | Bracket | 1 | |
| A-32 | M130HFA1006PW0 | Cover | 2 | |
| A-33 | MXAKAAB1000000 | Counter | 1 | |
| A-34 | M020HFA1021PW0 | Plate | 1 | |
| A-35 | M130HFA1013PW0 | Spacer | 1 |
