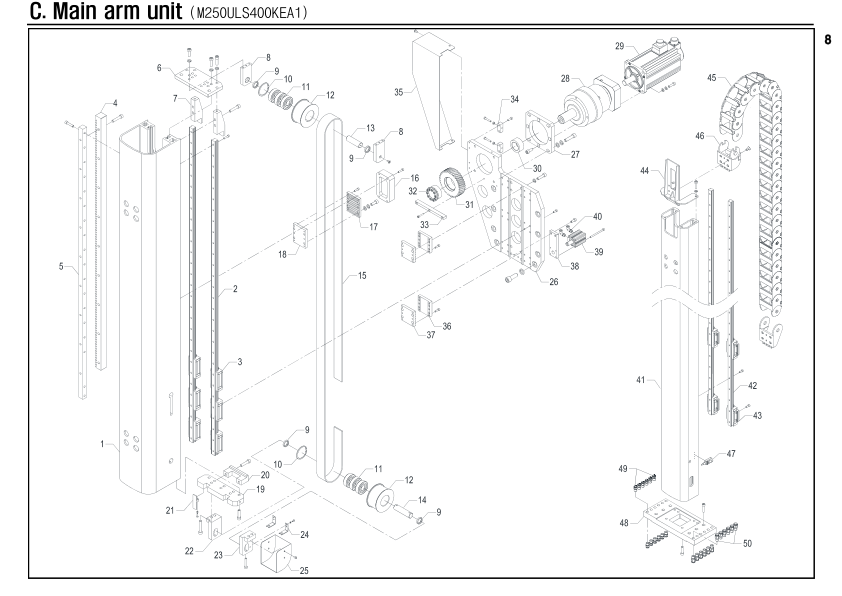

Main arm unit

Unit Number: M250ULS400KEA1

Robot: NEXIA-2500SW 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M250ULA4002MCXA	File	1
C-2	PLMRSHS251720L	LM rail	2
C-3	PLMBSHS25VKZ18	LM block	6
C-4	M250ULA4020MC0	Helical rack	1
C-5	M250ULA4021ZZXA	Rack bracket	1
C-6	M250ULA4004ZZ0	Plate	1
C-7	M200HFA4031ZZ0	Block	2
C-8	M200HFA4005ZZ0	Pulley block	2
C-9	M200HFA4039ZZ0	Collar	4
C-10	PRGH062H888888	Snap ring	1
C-11	PBRA6305ZZ8888	Bearing	6
C-12	M200HFA4007ZZ0	Idle roller	2
C-13	M200HFA4006ZZ0	Roller shaft	1
C-14	M200HFA4040ZZ0	Roller shaft	1
C-15	PBLTA105008888	Timing belt	3830
C-16	M200HFA4048MC0	Block	1
C-17	M200HFA4014MC0	Belt gripper	1
C-18	M200HFA4013ZZ0	Belt gripper	1
C-19	M250ULA4008ZZ0	Plate	1
C-20	M250ULA4053ZZ0	Block	1
C-21	M250ULA4040ZZ1	Plate	1
C-22	M200HFA4010ZZ0	Block	1
C-23	M200HFA4011ZZ0	Block	1
C-24	M130HFA4065ZZ0	Bracket	2
C-25	M200HFA4034ZZ0	Cover	1
C-26	M250ULA4001MC0	Plate	1
C-27	M250ULA4017ZZ0	Plate	1
C-28	PRESAE15202PD50	Reducer	1
C-29	PMTBMSME502GCH	Servo motor	1
C-30	M200TLA1011ZZ0	Plate	1
C-31	M200TLA1008ZZ0	Helical gear	1
C-32	PPLMMA40628888	Power lock	1
C-33	M250ULA4022ZZ0	Block	1
C-34	M250ULA4013ZZ0	Block	2
C-35	M250ULA4036ZZ0	Cover	1
C-36	M250ULA4012ZZ0	Belt Gripper	2
C-37	M130MAA4014MC0	Belt Gripper	2
C-38	M200ULA4030ZZ0	Block	1
C-39	PAXAIDFW32AS25	Cylinder	1
C-40	PAXFEL06180888	Fitting	2
C-41	M250ULA4003MC0	File	1
C-42	PLMRSHS201720L	LM rail	2
C-43	PLMBSHS20CKZ18	LM block	4
C-44	M250ULB4029ZZ2	Bracket	1
C-45	PCVH6251B12588	Cableveyor link	29
C-46	PCVE6251300088	Cableveyor end bracket	1
C-47	PSSRHYP18S5NAF	Sensor	1
C-48	M250ULA4052ZZ0	Plate	1
C-49	PAXFEC08140888	Fitting	12
C-50	PAXFEC10140888	Fitting	12
