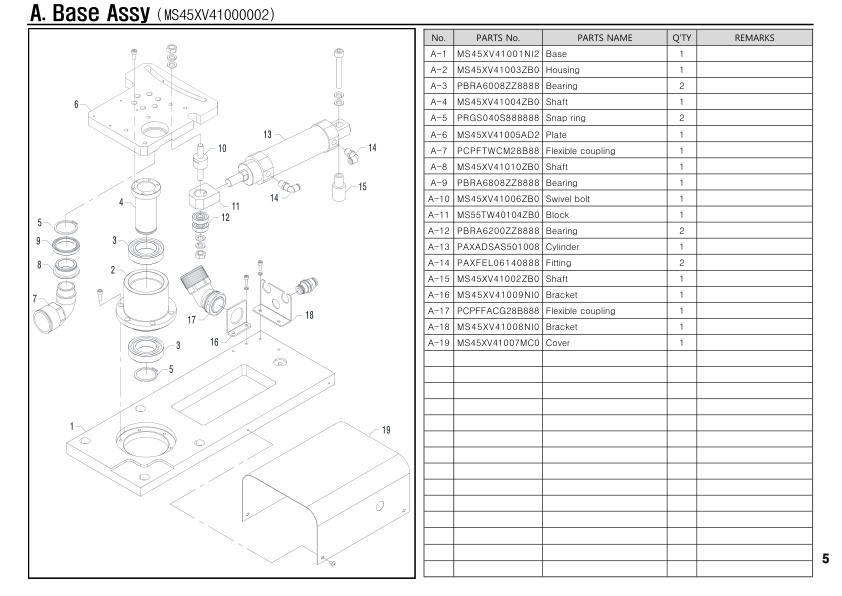

Base Assy
Unit Number: MS45XV41000002
Robot: TOPIV-V-X650 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | MS45XV41001NI2 | Base | 1 | |
| A-2 | MS45XV41003ZB0 | Housing | 1 | |
| A-3 | PBRA6008ZZ8888 | Bearing | 2 | |
| A-4 | MS45XV41004ZB0 | Shaft | 1 | |
| A-5 | PRGS040S888888 | Snap ring | 2 | |
| A-6 | MS45XV41005AD2 | Plate | 1 | |
| A-7 | PCPFTWCM28B88 | Flexible coupling | 1 | |
| A-8 | MS45XV41010ZB0 | Shaft | 1 | |
| A-9 | PBRA6808ZZ8888 | Bearing | 1 | |
| A-10 | MS45XV41006ZB0 | Swivel bolt | 1 | |
| A-11 | MS55TW40104ZB0 | Block | 1 | |
| A-12 | PBRA6200ZZ8888 | Bearing | 2 | |
| A-13 | PAXADSAS501008 | Cylinder | 1 | |
| A-14 | PAXFEL06140888 | Fitting | 2 | |
| A-15 | MS45XV41002ZB0 | Shaft | 1 | |
| A-16 | MS45XV41009NI0 | Bracket | 1 | |
| A-17 | PCPFFACG28B888 | Flexible coupling | 1 | |
| A-18 | MS45XV41008NI0 | Bracket | 1 | |
| A-19 | MS45XV41007MC0 | Cover | 1 |
