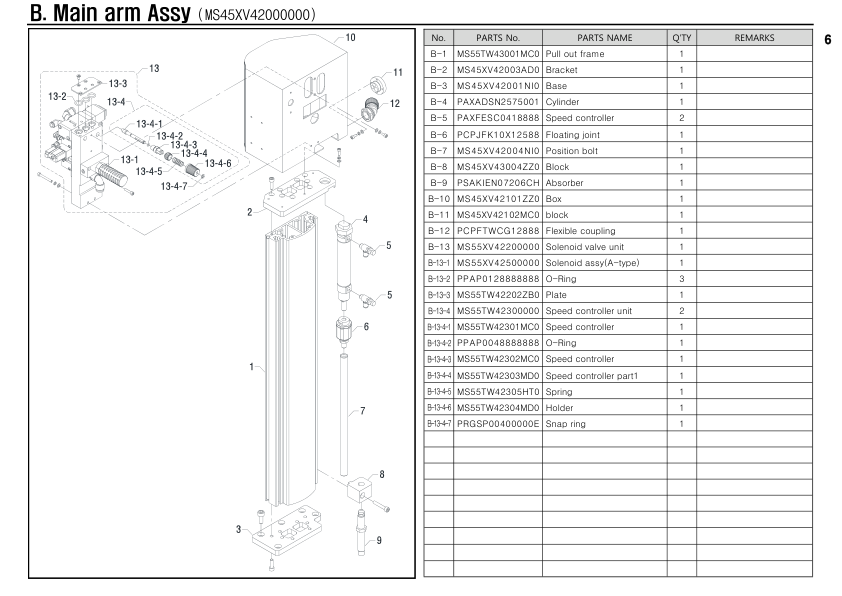

Main arm Assy
Unit Number: MS45XV42000000
Robot: TOPIV-V-X650 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | MS55TW43001MC0 | Pull out frame | 1 | |
| B-2 | MS45XV42003AD0 | Bracket | 1 | |
| B-3 | MS45XV42001NI0 | Base | 1 | |
| B-4 B-5 | PAXADSN2575001 PAXFESC0418888 | Cylinder Speed controller | 1 2 | |
| B-6 | PCPJFK10X12588 | Floating joint | 1 | |
| B-7 | MS45XV42004NI0 | Position bolt | 1 | |
| B-8 B-9 | MS45XV43004ZZ0 PSAKIEN07206CH | Block Absorber | 1 1 | |
| B-10 | MS45XV42101ZZ0 | Box | 1 | |
| B-11 B-12 | MS45XV42102MC0 PCPFTWCG12888 | block Flexible coupling | 1 1 | |
| B-13 | MS55XV42200000 | Solenoid valve unit | 1 |
