NEXIA-V-200,NEXIA-400
Unit Number: M020RFE5000E00

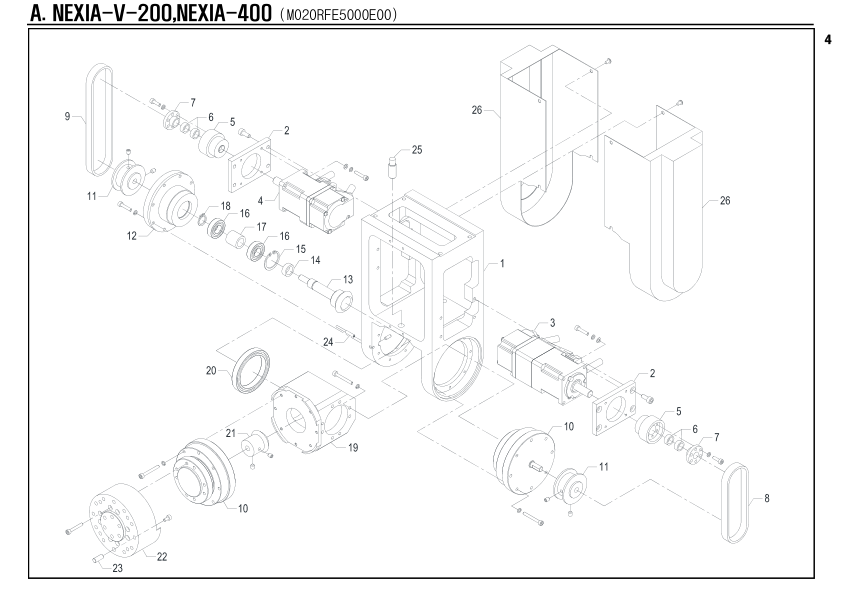

Robot: Swivel unit (2X) 📎
/M020RFE5000E00.png)
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M020RFE5001MC0 | Body | 1 | |
| A-2 | M040RFE5002MC0 | Plate | 2 | |
| A-3 | PMTBMSMD5AZG1T | Servo motor | 1 | |
| A-4 | PMTBMSMD5AZG1S | Servo motor | 1 | |
| A-5 | M040RFE5003ZZ0 | Timing pulley | 2 | |
| A-6 | PLMMAV30038011 | Power lock | 4 | |
| A-7 | M015MAA5004ZB0 | Flange | 2 | |
| A-8 | PBLTH3M0900225 | Timing belt | 1 | |
| A-9 | PBLTH3M0900312 | Timing belt | 1 | |
| A-10 | PRESSHF14802UJ | Reducer | 2 | |
| A-11 | M015MAA5006ZB0 | Timing pulley | 2 | |
| A-12 | M015MAA5007MC0 | Flange | 1 | |
| A-13 | M015MAA5010ZB0 | Spiral bevel gear | 1 | |
| A-14 | M015MAA5014ZB0 | Collar | 1 | |
| A-15 | PRGH022H888888 | Snap ring | 1 | |
| A-16 | PBRA6900ZZ8888 | Bearing | 2 | |
| A-17 | M015MAA5008ZB0 | Collar | 1 | |
| A-18 | PRGS010S888888 | Snap ring | 1 | |
| A-19 | M015MAA5009MC0 | Block | 1 | |
| A-20 | PBRA6808ZZ8888 | Bearing | 1 | |
| A-21 | M015MAA5011ZB0 | Spiral bevel gear | 1 | |
| A-22 | M020PFA5012ZZ0 | Flange | 1 | |
| A-23 | M015MAA5013MC0 | Center pin | 1 | |
| A-24 | PSSREM03088888 | Sensor | 1 | |
| A-25 | PSSREZ8M888888 | Sensor | 1 | |
| A-26 | M020PFA5005ZZ0 | Cover | 2 |
