NEXIA-V-400,NEXIA-600
Unit Number: M040RFE5000E00

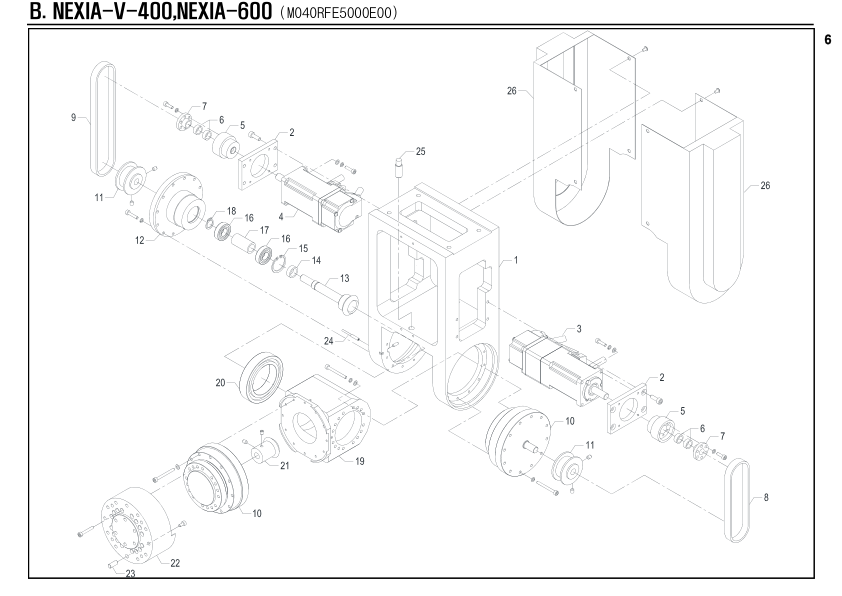

Robot: Swivel unit (2X) 📎
/M040RFE5000E00.png)
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M040RFE5001MC0 | Body | 1 | |
| B-2 | M040RFE5002MC0 | Plate | 2 | |
| B-3 | PMTBMSMD012G1T | Servo motor | 1 | |
| B-4 | PMTBMSMD012G1S | Servo motor | 1 | |
| B-5 | M040RFE5003ZZ0 | Timing pulley | 2 | |
| B-6 | PLMMAV30038011 | Power lock | 4 | |
| B-7 | M015MAA5004ZB0 | Flange | 2 | |
| B-8 | PBLTH3M0900255 | Timing belt | 1 | |
| B-9 | PBLTH3M0900345 | Timing belt | 1 | |
| B-10 | PRESSHF17802UJ | Reducer | 2 | |
| B-11 | M040RFA5006ZZ0 | Timing pulley | 2 | |
| B-12 | M040RFA5007MC0 | Flange | 1 | |
| B-13 | M040RFA5010ZZ0 | Spiral bevel gear | 1 | |
| B-14 | M015MAA5014ZB0 | Collar | 1 | |
| B-15 | PRGH022H888888 | Snap ring | 1 | |
| B-16 | PBRA6900ZZ8888 | Bearing | 2 | |
| B-17 | M040RFA5008ZZ0 | Collar | 1 | |
| B-18 | PRGS010S888888 | Snap ring | 1 | |
| B-19 | M040RFA5009MC0 | Block | 1 | |
| B-20 | PBRA6908ZZ8888 | Bearing | 1 | |
| B-21 | M040RFA5011ZZ0 | Spiral bevel gear | 1 | |
| B-22 | M040RFA5012ZZ0 | Flange | 1 | |
| B-23 | M015MAA5013MC0 | Center pin | 1 | |
| B-24 | PSSREM03088888 | Sensor | 1 | |
| B-25 | PSSREZ8M888888 | Sensor | 1 | |
| B-26 | M040RFA5005ZZ0 | Cover | 2 |
