NEXIA-V-600,NEXIA-800

Unit Number: M060RFE5000E01

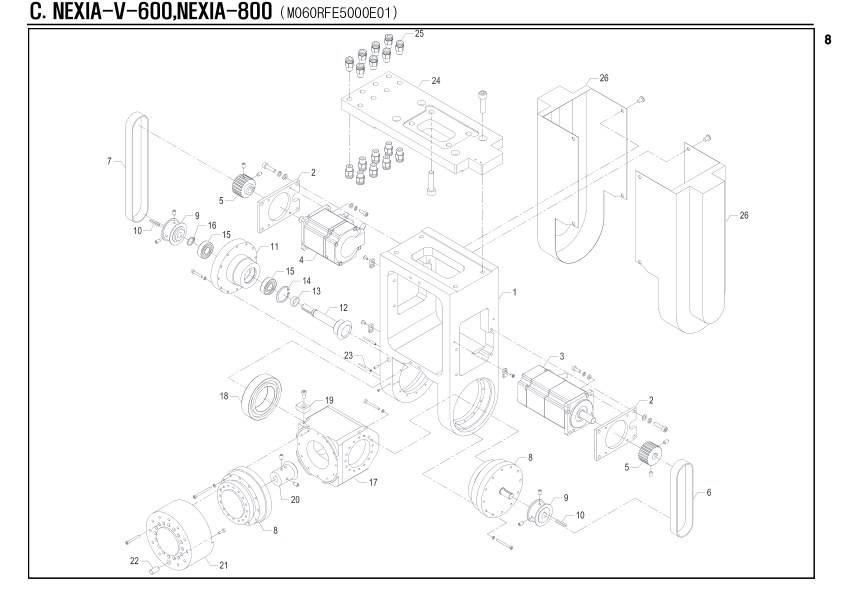

Robot: Swivel unit (2X) 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M060RFE5001MC0	Body	1
C-2	M060RFE5002ZZ0	Motor plate	2
C-3	PMTBMSMD022G1S	Servo motor	1
C-4	PMTBMSMD022G1T	Servo motor	1
C-5	M060RFE5003ZZ0	Timing pulley	2
C-6	PBLTHT5M150320	Timing belt	1
C-7	PBLTHT5M150450	Timing belt	1
C-8	PRESSHF20122UJ	Reducer	2
C-9	M055MAA5009ZB0	Timing pulley	2
C-10	PKEHP0303020L8	Key	2
C-11	M055MAA5006MC0	Flange	1
C-12	M055MAA5010ZB0	Spiral bevel gear	1
C-13	M055MAA5007ZB0	Collar	1
C-14	PRGH028H888888	Snap ring	1
C-15	PBRA6001ZZ8888	Bearing	2
C-16	PRGS012S888888	Snap ring	1
C-17	M060RFA5005MC0	Block	1
C-18	PBRA6009ZZ8888	Bearing	1
C-19	M060RFA5015ZZ0	Block	1
C-20	M055MAA5011ZB0	Spiral bevel gear	1
C-21	M060RFA5012ZZ0	Cover	1
C-22	M055MAA5013MC0	PIN	1
C-23	PSSREM03088888	Sensor	2
C-24	M060RFA5014MC0	Body plate	1
C-25	PAXFEC06180888	Fitting	16
C-26	M060RFA5008ZZ0	Cover	2
