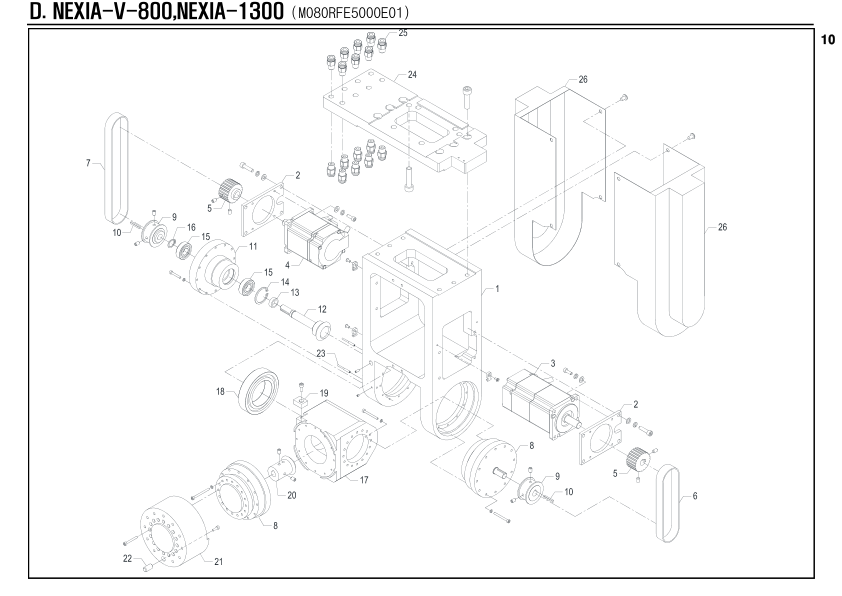

NEXIA-V-800,NEXIA-1300
Unit Number: M080RFE5000E01
Robot: Swivel unit (2X) 📎
/M080RFE5000E01.png)
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M080RFE5001MC0 | Body | 1 | |
| D-2 | M060RFE5002ZZ0 | Motor plate | 2 | |
| D-3 | PMTBMSMD022G1T | Servo motor | 1 | |
| D-4 | PMTBMSMD022G1S | Servo motor | 1 | |
| D-5 | M060RFE5003ZZ0 | Timing pulley | 2 | |
| D-6 | PBLTHT5M150320 | Timing belt | 1 | |
| D-7 | PBLTHT5M150450 | Timing belt | 1 | |
| D-8 | PRESSHG20122UJ | Reducer | 2 | |
| D-9 | M055MAA5009ZB0 | Timing pulley | 2 | |
| D-10 | PKEHP0303020L8 | Key | 2 | |
| D-11 | M055MAA5006MC0 | Flange | 1 | |
| D-12 | M055MAA5010ZB0 | Spiral bevel gear | 1 | |
| D-13 | M055MAA5007ZB0 | Collar | 1 | |
| D-14 | PRGH028H888888 | Snap ring | 1 | |
| D-15 | PBRA6001ZZ8888 | Bearing | 2 | |
| D-16 | PRGS012S888888 | Snap ring | 1 | |
| D-17 | M060RFA5005MC0 | Block | 1 | |
| D-18 | PBRA6009ZZ8888 | Bearing | 1 | |
| D-19 | M060RFA5015ZZ0 | Block | 1 | |
| D-20 | M055MAA5011ZB0 | Spiral bevel gear | 1 | |
| D-21 | M060RFA5012ZZ0 | Cover | 1 | |
| D-22 | M055MAA5013MC0 | PIN | 1 | |
| D-23 | PSSREM03088888 | Sensor | 2 | |
| D-24 | M080RFA5014MC0 | Body plate | 1 | |
| D-25 | PAXFEC06180888 | Fitting | 16 | |
| D-26 | M060RFA5008ZZ0 | Cover | 2 |
