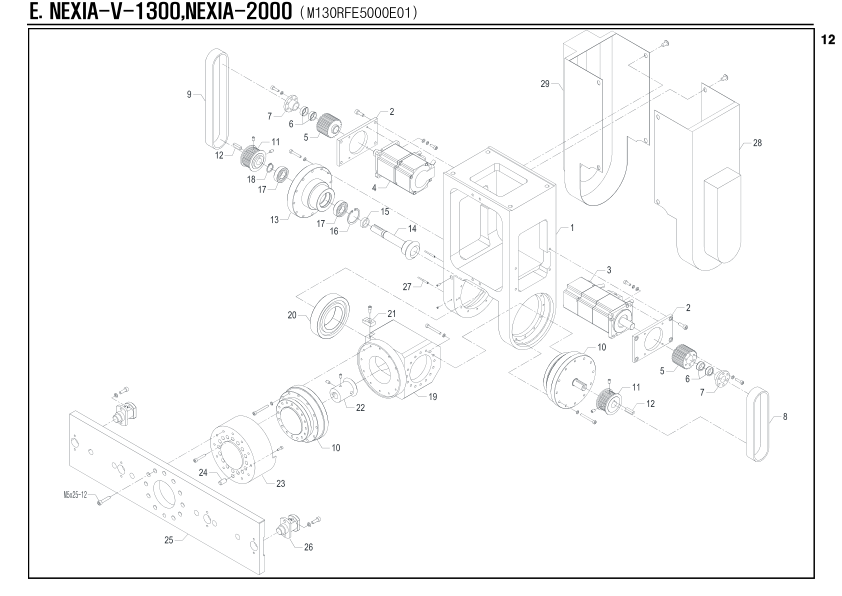

NEXIA-V-1300,NEXIA-2000

Unit Number: M130RFE5000E01

Robot: Swivel unit (2X) 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	M130PFA5001ZZ0	Body	1
E-2	M130RFE5002ZZ0	Motor plate	2
E-3	PMTBMSMD042G1T	Servo motor	1
E-4	PMTBMSMD042G1S	Servo motor	1
E-5	M130RFE5003ZZ0	Timing pulley	2
E-6	PPLMCONEXC1418	Power lock	4
E-7	M085MAA5004ZZ0	Flange	2
E-8	PBLTS5M2003758	Timing belt	1
E-9	PBLTS5M2005008	Timing belt	1
E-10	PRESSHG25122UJ	Reducer	2
E-11	M085MAA5009ZZ0	Timing pulley	2
E-12	PKEHP0505020L8	Key	2
E-13	M085MAA5006ZZ0	Flange	1
E-14	M085MAA5010MC0	Spiral bevel gear	1
E-15	M085MAA5007ZZ0	Collar	1
E-16	PRGH032H888888	Snap ring	1
E-17	PBRA6002ZZ8888	Bearing	2
E-18	PRGS015S888888	Snap ring	1
E-19	M085MAA5005ZZ0	Block	1
E-20	PBRA6210ZZ8888	Bearing	1
E-21	M130HFA5015ZZ0	Block	1
E-22	M085MAA5011MC0	Spiral bevel gear	1
E-23	M130PFA5012ZZ0	Cover	1
E-24	M055MAA5013MC0	PIN	1
E-25	M130GAA5013ZZ0	Plate E	1
E-26	M060HFA5100000	Fix pin set	2
E-27	PSSREM03088888	Sensor	2
E-28	M085MAA5015PW0	Cover	1
E-29	M085MAA5008PW0	Cover	1
