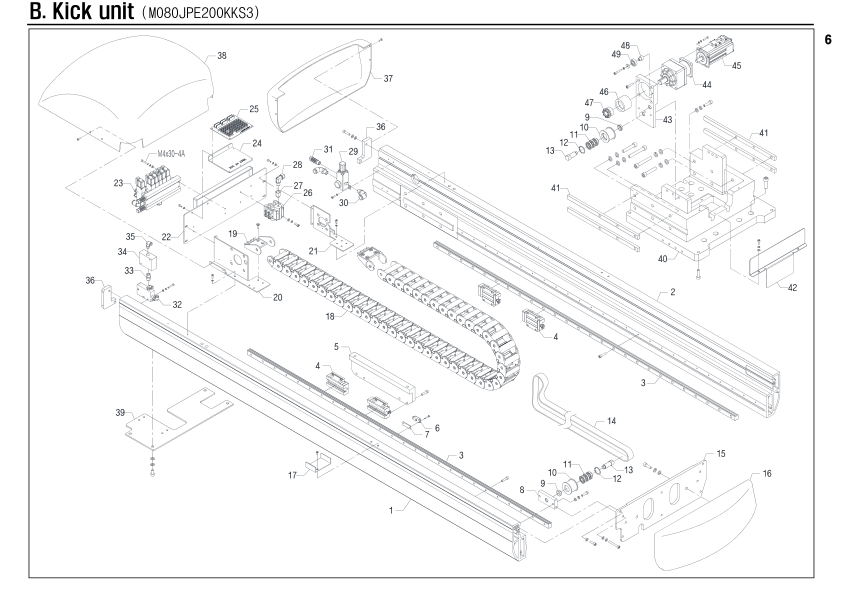

Kick unit
Unit Number: M080JPE200KKS3
Robot: EPIK-800SYCT 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M080FJA2001MC0 | FILE | 1 | |
| B-2 | M080FJA2002MC1 | FILE | 1 | |
| B-3 | PLMRSHS201540L | LM rail | 2 | |
| B-4 | PLMBSHS20CKZ18 | LM block | 4 | |
| B-5 | M060HFA2048ZZ0 | Plate A | 1 | |
| B-6 | PSSMRS52SHC888 | Magnet | 1 | |
| B-7 | M015MAB2035MC0 | Nut key | 1 | |
| B-8 | M035HAA2018ZZ0 | Tension block | 1 | |
| B-9 | M035HAA2035ZZ0 | Collar | 3 | |
| B-10 | M035HAA2019ZZ0 | Idle roller | 3 | |
| B-11 | PBRA6902ZZ8888 | Bearing | 9 | |
| B-12 | PRGH028H888888 | Snap ring | 3 | |
| B-13 | M035HAA2034ZZ0 | Shaft | 3 | |
| B-14 | PBLTU5M2588888 | Timing belt | 3610 | |
| B-15 | M060HFA2020ZZ0 | Pull out cover | 1 | |
| B-16 | M060HFA2021PW0 | Cover | 1 | |
| B-17 | M015MAB2036MC0 | Bracket | 1 | |
| B-18 | PCVH4502B09543 | C/V_LINK | 43 | |
| B-19 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-20 | M040HFA2024ZZ0 | Solenoid valve boxbase B | 1 | |
| B-21 | M040HFA2023ZZ0 | Base | 1 | |
| B-22 | M060HFA2029ZZ1 | SOL_V/V_BOXBASE_C | 1 | |
| B-23 | M060GFA2100000 | SOL_VALVE_ASSY | 1 | |
| B-24 | M040FFA2038ZZ0 | Plate | 1 | |
| B-25 | PBDCIFKEBA8888 | Board | 1 | |
| B-26 | PMXL8UR8888888 | Valve | 1 | |
| B-27 | PAXBREDU181488 | Reducer | 1 | |
| B-28 | PAXFL4N1065148 | Fitting | 1 | |
| B-29 | PAXSVEX113302G | Regulator | 1 | |
| B-30 | PAXFEL12140888 | Fitting | 2 | |
| B-31 | PAXZSILENCER14 | Silincer | 1 | |
| B-32 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-33 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-34 | PAXVAF05888888 | Air filter | 1 | |
| B-35 | PAXFEL06180888 | Fitting | 1 | |
| B-36 | M060HFA2047ZZ0 | Cover block | 2 | |
| B-37 | M060HFA2046MD0 | Cover | 1 | |
| B-38 | M060HFA2027MD0 | Solbox cover | 1 | |
| B-39 | M080JPA2022ZZ1 | C/V_PLATE | 1 | |
| B-40 | M060HFA2003MC0 | Slide base | 1 | |
| B-41 | M035HAA2014ZZ0 | Nut key | 4 | |
| B-42 | M040HFA2033ZZ0 | Cover | 1 | |
| B-43 | M035HAA2015ZZ0 | Motor plate | 1 | |
| B-44 | PRESSFS9CPB048 | Reducer | 1 | |
| B-45 | PMTBEMJ04APB22 | Servo motor | 1 | |
| B-46 | M035HAA2017ZZ0 | PULLEY | 1 | |
| B-47 | PPLMMA19338888 | Power lock | 1 | |
| B-48 | M035HAA2026ZZ0 | Shaft | 1 | |
| B-49 | PBRA6000ZZ8888 | Bearing | 1 |
